NSN 5905-01-033-2812 RL20036237355, RL2003-62-3-73-55, 10031494101
Product Details | THERMAL RESISTOR
5905-01-033-2812 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: RL20036237355, RL2003-62-3-73-55, 10031494101, 10031494-101, 5905-01-033-2812, 01-033-2812, 5905010332812, 010332812
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JAN 1977 | 01-033-2812 | 00309 ( RESISTOR, THERMAL ) |

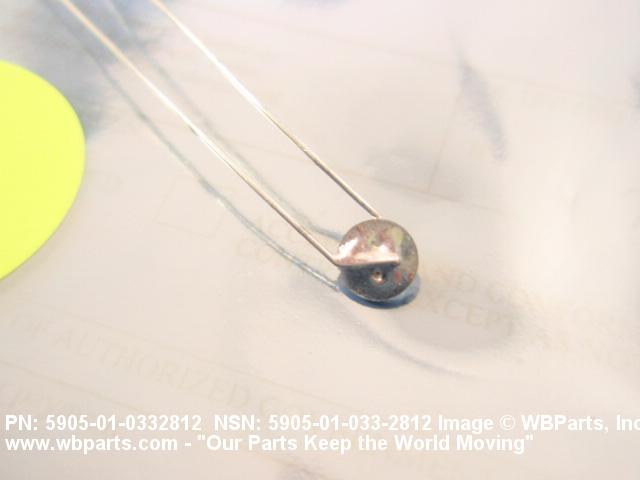

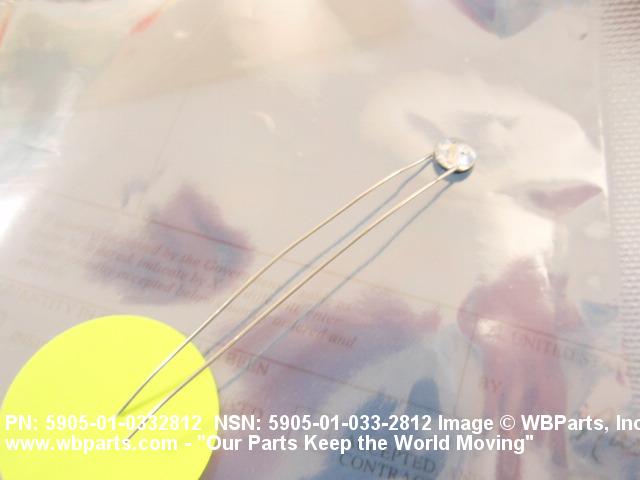

Drawings & Photos | NSN 5905-01-033-2812
Demand History | NSN 5905-01-033-2812
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-033-2812 | 2010-10-292 | 20 | United States |
| 5905-01-033-2812 | 2010-01-22 | 20 | DIBBS |
| 5905-01-033-2812 | 2009-10-292 | 20 | DIBBS |
| 5905-01-033-2812 | 2008-12-339 | 20 | DIBBS |
| 5905-01-033-2812 | 2007-03-67 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-033-2812
Technical Data | NSN 5905-01-033-2812
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 3.504 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -2.3 TO 2.3 |
| MAXIMUM POWER DISSIPATION RATING | 7.50 MILLIWATTS |
| STYLE DESIGNATOR | 20 DISK |
| BODY OUTSIDE DIAMETER | 0.200 INCHES NOMINAL |
| BODY WIDTH | 0.030 INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-01-033-2812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-01-033-2812
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
