NSN 5905-01-047-2243 C88882, C8888-2, CX3957
Product Details | FILM FIXED RESISTOR NETWORK
5905-01-047-2243 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: C88882, C8888-2, CX3957, EPH338, 5905-01-047-2243, 01-047-2243, 5905010472243, 010472243
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1977 | 01-047-2243 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-047-2243
Demand History | NSN 5905-01-047-2243
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-047-2243 | 2018-10-274 | 60 | DIBBS |
| 5905-01-047-2243 | 2018-09-263 | 60 | DIBBS |
| 5905-01-047-2243 | 2018-07-190 | 60 | DIBBS |
| 5905-01-047-2243 | 2018-06-179 | 60 | DIBBS |
| 5905-01-047-2243 | 2017-10-291 | 21 | DIBBS |
| 5905-01-047-2243 | 2013-07-205 | 18 | DIBBS |
| 5905-01-047-2243 | 2013-07-204 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-047-2243
Related Products | NSN 5905-01-047-2243
Technical Data | NSN 5905-01-047-2243
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 150.000 OHMS 1.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 8 LOWEST RESISTANCE VALUE 8 HIGHEST RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 0.250 EACH RESISTOR |
| SCHEMATIC DIAGRAM DESIGNATOR | 5 SERIES NETWORK |
| INCLOSURE METHOD | HERMETICALLY SEALED |

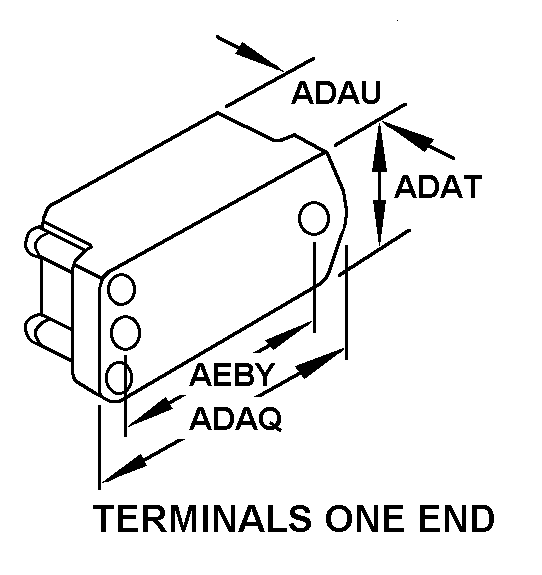

| STYLE DESIGNATOR | 129 TERMINALS ONE END |
