Product Details | FILM FIXED RESISTOR NETWORK
5905-01-086-2480 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: 1444710, 144-471-0, 5905-01-086-2480, 01-086-2480, 5905010862480, 010862480
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 NOV 1979 | 01-086-2480 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-086-2480
Cross Reference | NSN 5905-01-086-2480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 144-471-0 | 73138 | BI TECHNOLOGIES CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-086-2480
Technical Data | NSN 5905-01-086-2480

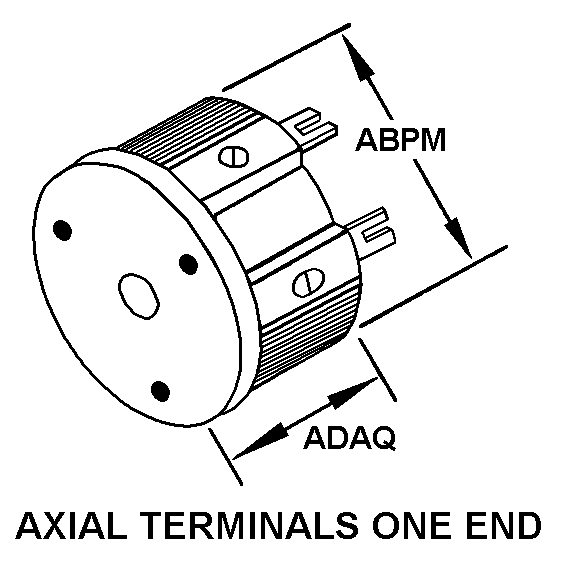

| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 11.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 7 EACH RESISTOR |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 82 AXIAL TERMINALS ONE END |
