NSN 5905-01-100-3802 SMB621308, SM-B-621308, 10351375
Product Details | THERMAL RESISTOR
5905-01-100-3802 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: SMB621308, SM-B-621308, 10351375 , 5905-01-100-3802, 01-100-3802, 5905011003802, 011003802
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 SEP 1980 | 01-100-3802 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-01-100-3802
Cross Reference | NSN 5905-01-100-3802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-B-621308 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-100-3802
Technical Data | NSN 5905-01-100-3802
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 1.500 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -5.0 TO 5.0 |
| MAXIMUM POWER DISSIPATION RATING | 125.00 MILLIWATTS |
| AMBIENT TEMP AT FULL RATED POWER | 125.0 DEG CELSIUS |

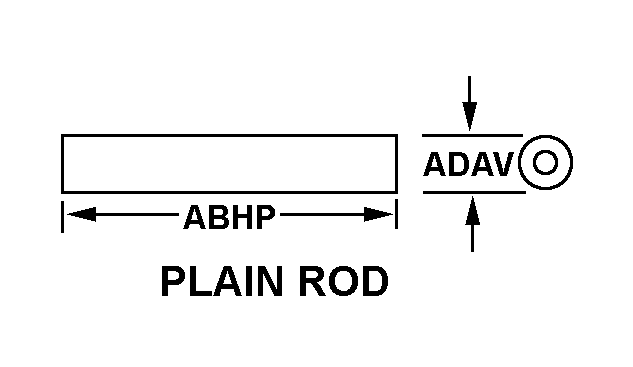

| STYLE DESIGNATOR | 14 PLAIN ROD |
| OVERALL LENGTH | 0.300 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.105 INCHES MAXIMUM |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.250 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.018 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | TIN |
Restrictions/Controls & Freight Information | NSN 5905-01-100-3802
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZP | Portugal ZR ZS |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
