NSN 5905-01-118-7277 62541831, 625418-3-1, 62541841
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-118-7277 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 62541831, 625418-3-1, 62541841, 625418-4-1, 6254193, 625419-3, 6254194, 625419-4, 10127368 , 5229604, 5229-60-4, 5905-01-118-7277, 01-118-7277, 5905011187277, 011187277
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 SEP 1981 | 01-118-7277 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-118-7277
Demand History | NSN 5905-01-118-7277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5229-60-4 | 2022-02-39 | 10 | DIBBS |
| 625418-4-1 | 2022-02-39 | 10 | DIBBS |
| 5229-60-4 | 2021-02-53 | 17 | DIBBS |
| 625418-4-1 | 2021-02-53 | 17 | DIBBS |
| 5229-60-4 | 2020-03-76 | 12 | DIBBS |
| 625418-4-1 | 2020-03-76 | 12 | DIBBS |
| 5229-60-4 | 2020-03-61 | 12 | DIBBS |
| 625418-4-1 | 2020-03-61 | 12 | DIBBS |
| 5229-60-4 | 2019-09-255 | 11 | DIBBS |
| 625418-4-1 | 2019-09-255 | 11 | DIBBS |
| 5229-60-4 | 2019-07-192 | 19 | DIBBS |
| 625418-4-1 | 2019-07-192 | 19 | DIBBS |
| 5905-01-118-7277 | 2018-12-340 | 6 | DIBBS |
| 5905-01-118-7277 | 2018-11-329 | 6 | DIBBS |
| 5905-01-118-7277 | 2017-11-334 | 6 | US |
| 5905-01-118-7277 | 2017-09-249 | 6 | DIBBS |
| 5905-01-118-7277 | 2016-04-116 | 12 | DIBBS |
| 5905-01-118-7277 | 2012-08-226 | 14 | DIBBS |
| 5905-01-118-7277 | 2010-09-257 | 9 | DIBBS |
| 5905-01-118-7277 | 2010-07-210 | 52 | DIBBS |
| 5905-01-118-7277 | 2010-05-131 | 23 | DIBBS |
| 5905-01-118-7277 | 2010-04-120 | 19 | DIBBS |
| 5905-01-118-7277 | 2010-03-67 | 13 | DIBBS |
| 5905-01-118-7277 | 2010-02-33 | 5 | DIBBS |
| 5905-01-118-7277 | 2009-12-338 | 19 | DIBBS |
| 5905-01-118-7277 | 2009-10-300 | 46 | DIBBS |
| 5905-01-118-7277 | 2009-03-68 | 13 | DIBBS |
| 5905-01-118-7277 | 2009-01-13 | 15 | DIBBS |
| 5905-01-118-7277 | 2008-11-319 | 25 | DIBBS |
Cross Reference | NSN 5905-01-118-7277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5229-60-4 | 73138 | BI TECHNOLOGIES CORPORATION |
| 625418-3-1 | 07217 | HONEYWELL ASCA INC DIVAEROSPACE-TORONTO DBA HONEYWELL |
| 625418-4-1 | 07217 | HONEYWELL ASCA INC DIVAEROSPACE-TORONTO DBA HONEYWELL |
| 625418-4-1 | 73138 | BI TECHNOLOGIES CORPORATION |
| 625418-4-1 | 98247 | CANADIAN COMMERCIAL CORP DBACORPORATION COMMERCIALE |
| 625419-3 | 07217 | HONEYWELL ASCA INC DIVAEROSPACE-TORONTO DBA HONEYWELL |
| 625419-4 | 07217 | HONEYWELL ASCA INC DIVAEROSPACE-TORONTO DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-118-7277
Technical Data | NSN 5905-01-118-7277
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 4 |
| ELECTRICAL RESISTANCE PER SECTION | 1.0 KILOHMS ALL SECTIONS |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 ALL SECTIONS |
| STANDARD TAPER CURVE PER SECTION | A ALL SECTIONS |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY LENGTH | 3.000 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.280 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| ACTUATOR TYPE | DUAL CONCENTRIC |

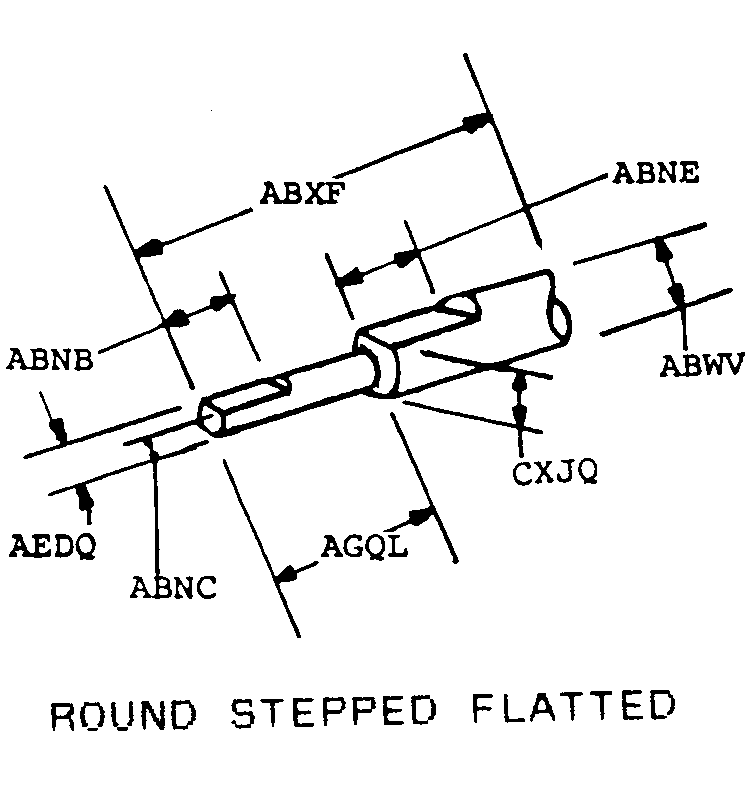

| SHAFT STYLE | 47C ROUND STEPPED FLATTED |
| FIRST FLAT LENGTH | 0.350 INCHES NOMINAL |
| FLAT HEIGHT | 0.102 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHAFT LENGTH | 1.130 INCHES MINIMUM AND 1.170 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| UNDERCUT LENGTH | 0.410 INCHES MAXIMUM |
| SECOND FLAT LENGTH | 0.470 INCHES MAXIMUM |
| SECOND FLAT HEIGHT | 0.214 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 270.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 270.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 3 OCLOCK |
| NONTURN DEVICE RADIUS | 0.422 INCHES MINIMUM AND 0.452 INCHES MAXIMUM |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 12 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 76301-MDCA3376 DRAWING |
| III END ITEM IDENTIFICATION | F-18 AIRCRAFT |
