Product Details | FILM FIXED RESISTOR NETWORK
5905-01-133-3424 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: SDP1602122JS119, SDP-16-02-122J-S119, 144A9615P15, 5905-01-133-3424, 01-133-3424, 5905011333424, 011333424
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUN 1982 | 01-133-3424 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-133-3424
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-01-133-3424
5905-01-133-3425, 5905-01-133-3426, 5905-01-133-3427, 5905-01-133-3428, 5905-01-133-3542
Technical Data | NSN 5905-01-133-3424
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.200 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 15 EACH RESISTOR |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 1.250 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 150.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -200.0 TO 200.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 150.0 |

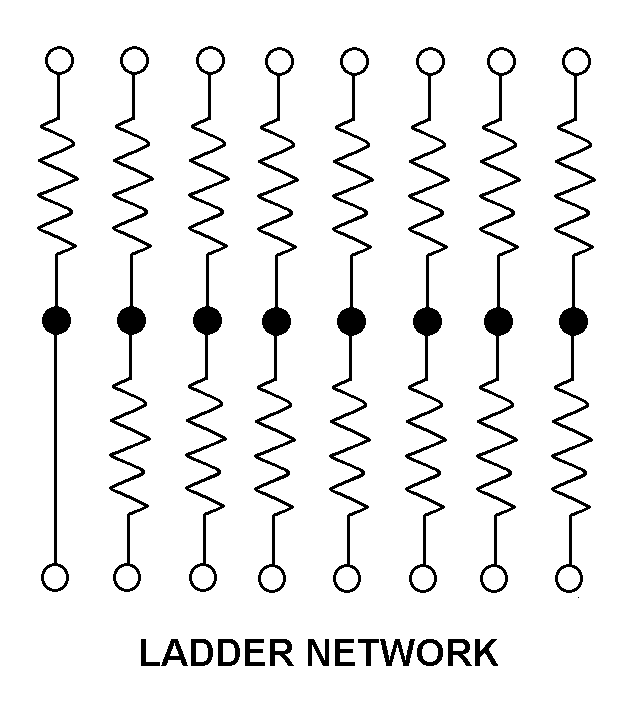

| SCHEMATIC DIAGRAM DESIGNATOR | 2 LADDER NETWORK |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 220 DUAL INLINE |
| BODY LENGTH | 0.860 INCHES MAXIMUM |
| BODY WIDTH | 0.300 INCHES NOMINAL |
| BODY HEIGHT | 0.054 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 16 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.100 INCHES MINIMUM |
| TERMINAL WIDTH | 0.023 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5905-01-133-3424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-01-133-3424
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
