NSN 5905-01-143-1619 CR1027, PPR97525031000J, PPR975-250-3-1000J
Product Details | FILM FIXED RESISTOR
5905-01-143-1619 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: CR1027, PPR97525031000J, PPR975-250-3-1000J, PPR9752503100OHMS, PPR975-250-3-100OHMS, 50549001, 5054900-1, 5905-01-143-1619, 01-143-1619, 5905011431619, 011431619
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 NOV 1982 | 01-143-1619 | 05311 ( RESISTOR, FIXED, FILM ) |

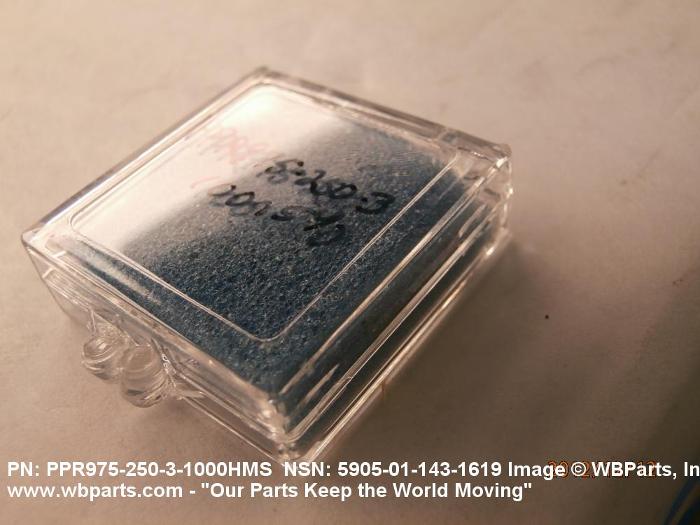

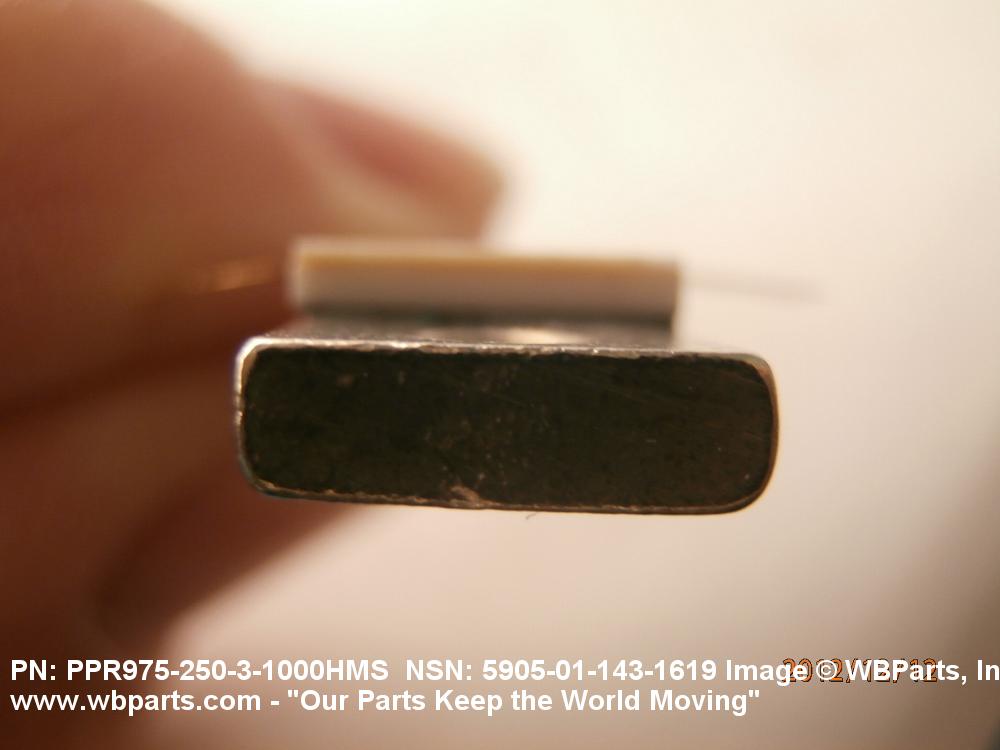

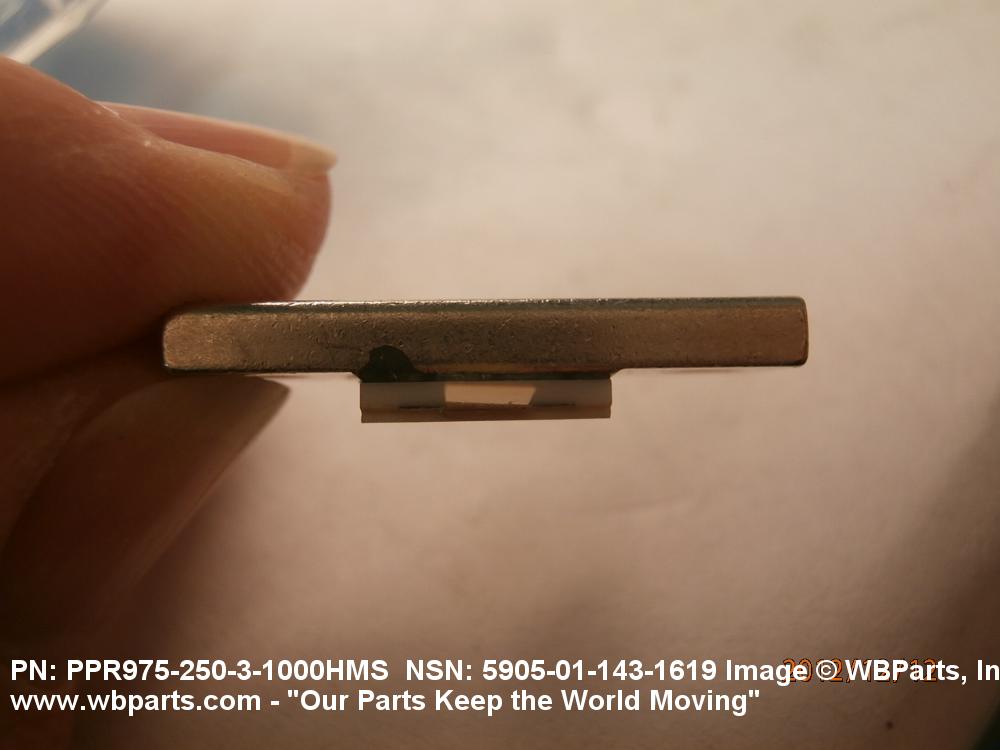

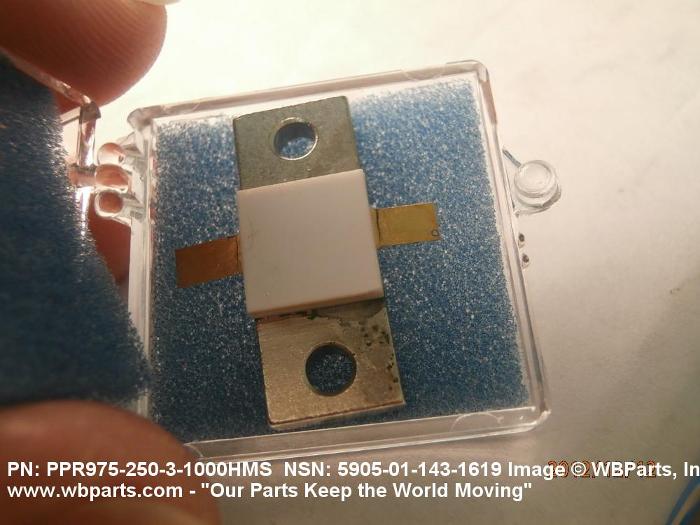

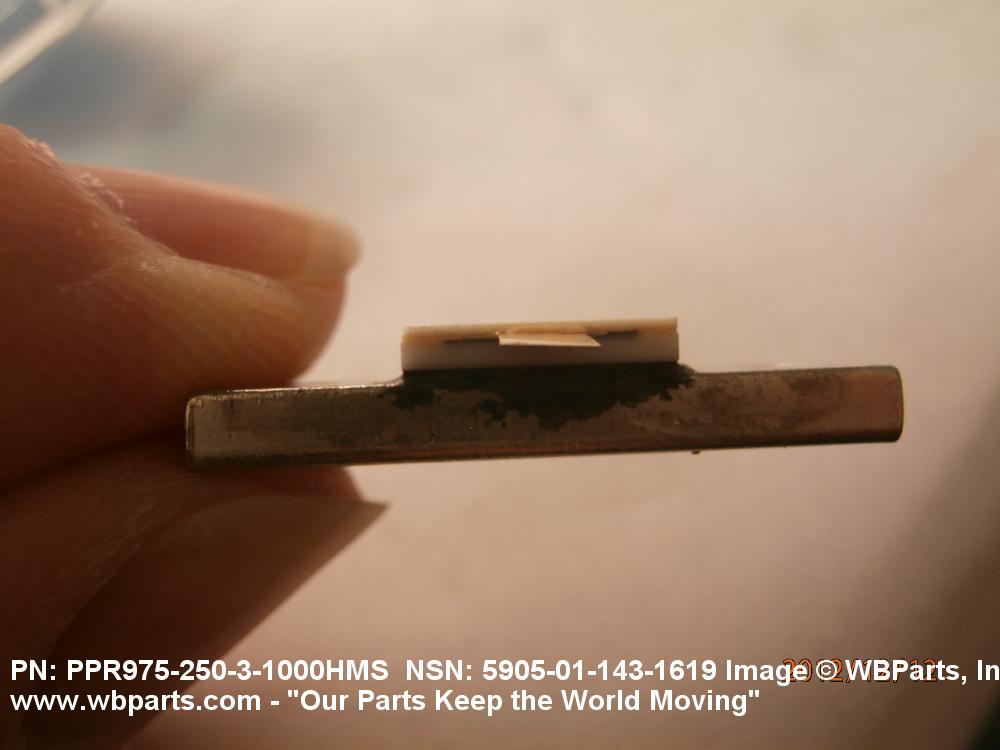

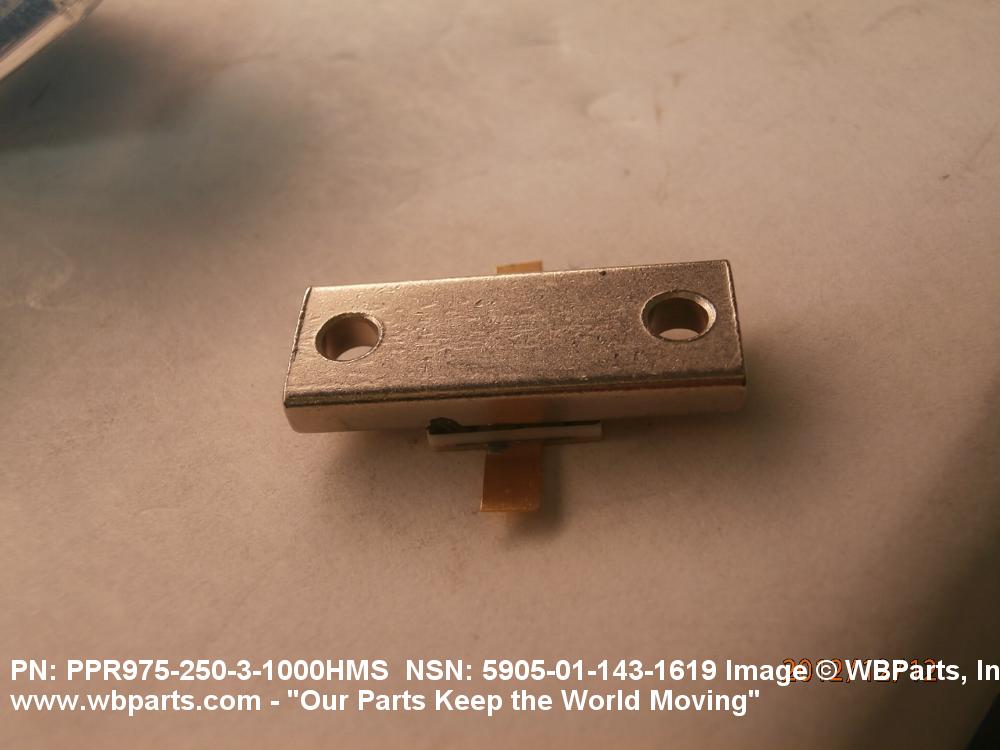

Drawings & Photos | NSN 5905-01-143-1619
Demand History | NSN 5905-01-143-1619
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PPR9752503100OHMS | 2012-11-310 | 10 | Sri Lanka |
| 5905-01-143-1619 | 2011-01-25 | 15 | Australia |
| PPR97525031000J | 2010-07-209 | 200 | IT |
Cross Reference | NSN 5905-01-143-1619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5054900-1 | 57958 | SIGNALS WARFARE PROJECT MANAGER |
| CR1027 | 50155 | VARIAN ASSOCIATES INC COMMUNICATIONS TRANSISTOR DIV |
| PPR975-250-3-1000J | 64537 | AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI |
| PPR975-250-3-100OHMS | 64537 | AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI |
