NSN 5905-01-152-0051 BCF-1/2-102, BCF12102, ERD50TJ102

Product Details | FILM FIXED RESISTOR

5905-01-152-0051 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.

Part Alternates: BCF-1/2-102, BCF12102, ERD50TJ102, MIL-PRF-39017/2 , MILPRF390172, MIL-R-39017/2, MILR390172, R31001F, R650004102, R65-0004-102, RCR20C1001FS, RLR20C1001FM, RLR20C1001FR, RLR20C1001FS, RLR20C102FR, TR51K0HMSP0RM2PCT, TR5-1K0HMSP0RM2PCT, 11100002, 111000-02, 1202157272, 1202157-272, 4431580204, 443-1580-204, 5905-01-152-0051, 01-152-0051, 5905011520051, 011520051

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 APR 1983	01-152-0051	05311 ( RESISTOR, FIXED, FILM )

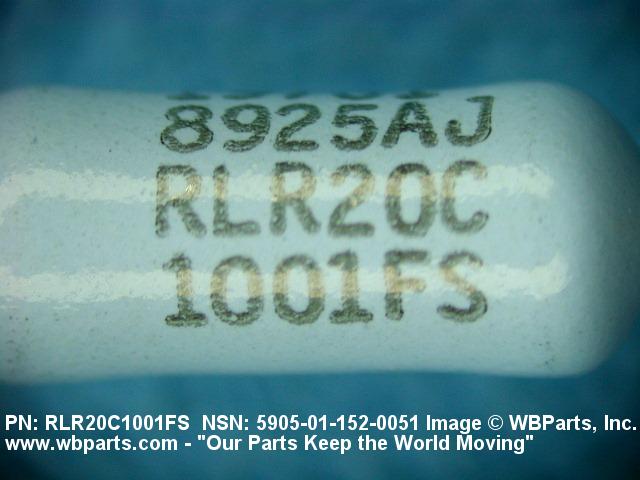

Drawings & Photos | NSN 5905-01-152-0051

Part Number	Request Date	QTY	Origin
RLR20C1001FM	2025-04-91	5	Canada
RLR20C1001FS	2021-04-102	28	United States
RLR20C1001FM	2021-02-48	2	United States
5905-01-152-0051	2018-11-310	439	DIBBS
RLR20C1001FS	2018-10-289	24	US
5905-01-152-0051	2015-06-168	782	DIBBS
RLR20C1001FS	2014-11-321	19	United States
RLR20C1001FM	2013-07-207	500	US
RLR20C1001FM	2013-07-207	1000	US
RLR20C1001FS	2013-04-99	460	United States
RLR20C1001FS	2013-01-02	303	US
RLR20C1001FS	2011-02-46	4	US
MILR390172	2011-02-33	500	United States
5905-01-152-0051	2008-11-322	340	DIBBS
5905-01-152-0051	2008-10-288	419	DIBBS

Cross Reference | NSN 5905-01-152-0051

Part Number	Cage Code	Manufacturer
111000-02	14345	ROLM CORP MIL SPEC COMPUTERS
1202157-272	06424	ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS
443-1580-204	94756	BOEING COMPANY, THE DBA BOEING
BCF-1/2-102	62438	BALDWIN COMPONENTS CENTER
ERD50TJ102	54473	MATSUSHITA ELECTRIC CORP OF AMERICA M/S 7H-4
MIL-R-39017/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
R31001F	34764	SCIENTIFIC RADIO SYSTEMS INC
R65-0004-102	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
RCR20C1001FS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RLR20C1001FM	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RLR20C1001FR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RLR20C1001FS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RLR20C102FR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
TR5-1K0HMSP0RM2PCT	K4184	VISHAY LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-152-0051

Compare

Related Products | NSN 5905-01-152-0051

5905-01-152-0053, 5905-01-152-0054, 5905-01-152-0055, 5905-01-152-0056, 5905-01-152-0057

Technical Data | NSN 5905-01-152-0051

Characteristic	Specifications
ELECTRICAL RESISTANCE	1.000 KILOHMS
RESISTANCE TOLERANCE IN PERCENT	-1.000 TO 1.000
POWER DISSIPATION RATING IN WATTS	0.500 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER	70.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER	150.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS	-100.0 TO 100.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS	-55.0 TO 150.0
INCLOSURE METHOD	ENCAPSULATED

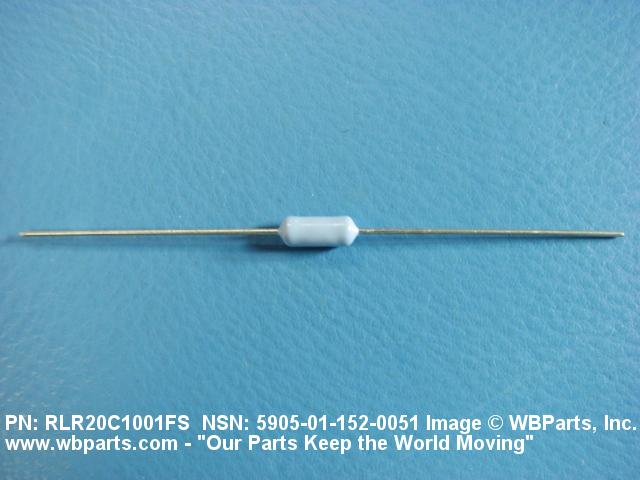

STYLE DESIGNATOR	14 AXIAL TERMINAL EACH END

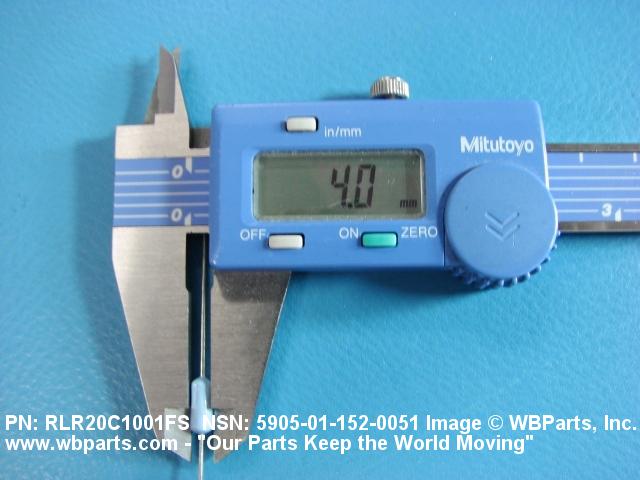

BODY DIAMETER	0.098 INCHES MINIMUM AND 0.161 INCHES MAXIMUM

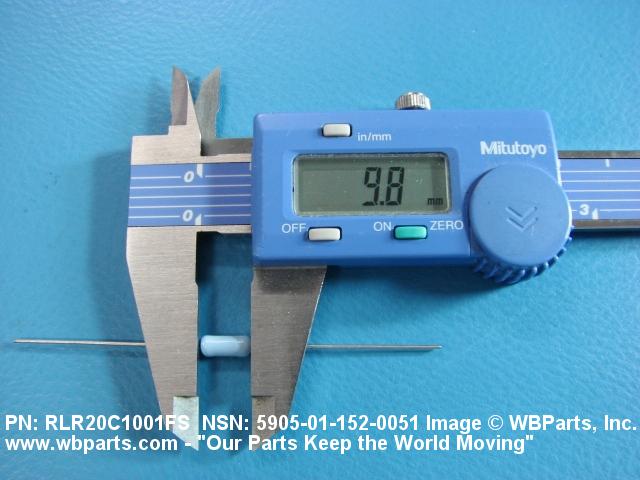

BODY LENGTH	0.260 INCHES MINIMUM AND 0.416 INCHES MAXIMUM

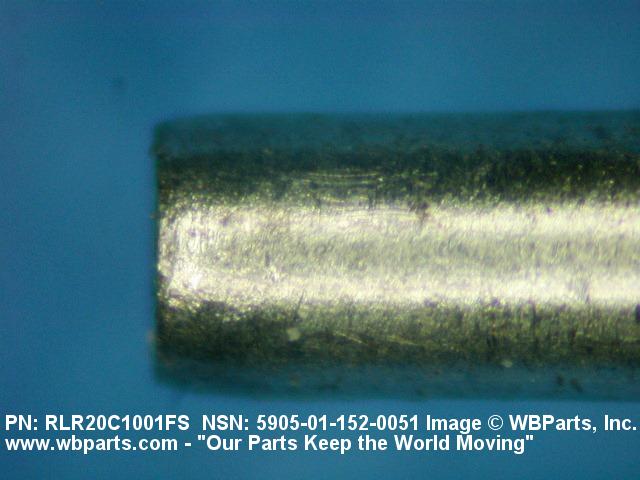

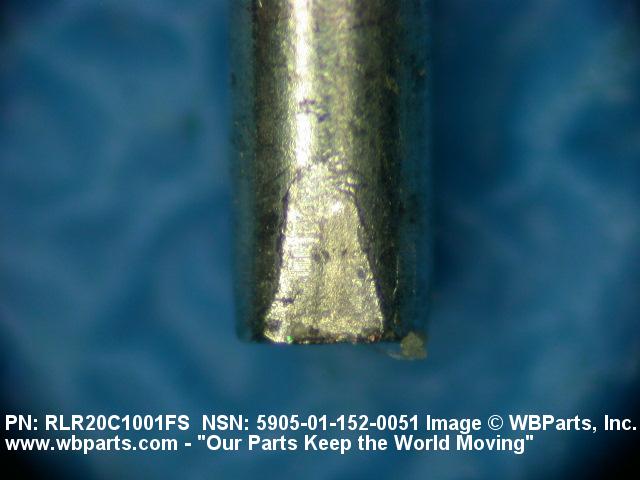

TERMINAL TYPE	WIRE LEAD
MIL-STD-1276 WIRE LEAD TYPE DESIGNATOR	C
RELIABILITY INDICATOR	ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT	0.001

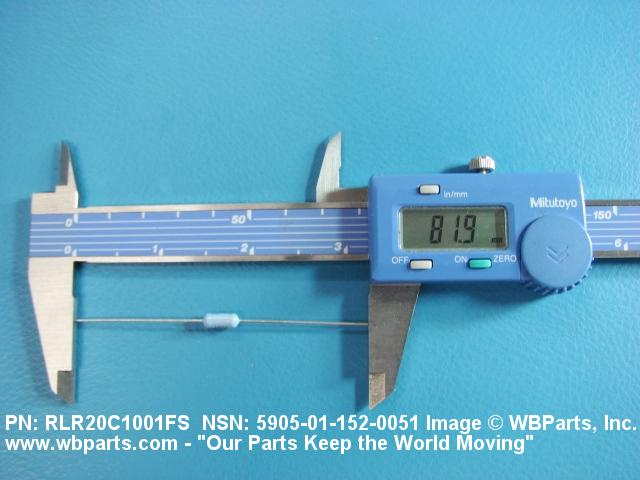

TERMINAL LENGTH	1.375 INCHES MINIMUM AND 1.625 INCHES MAXIMUM
TEST DATA DOCUMENT	81349-MIL-R-39017 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-39017/2 GOVERNMENT SPECIFICATION

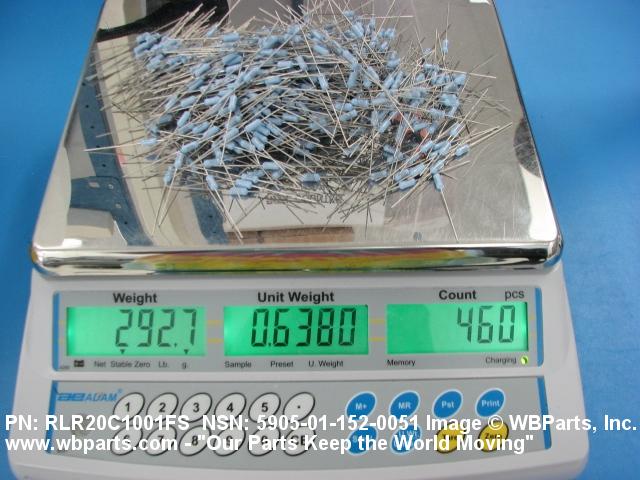

III UNPACKAGED UNIT WEIGHT	0.75 GRAMS
(NON-CORE DATA) CUBIC MEASURE	0.006 CUBIC INCHES
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-R-39017/2
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	RLR20C1001FS

Restrictions/Controls & Freight Information | NSN 5905-01-152-0051

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	B	ESD sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062960	REOSTATS/PARTS NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5905-01-152-0051

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
