NSN 5905-01-186-5349 5316101J, 5316-101J, 730091
Product Details | FILM FIXED RESISTOR
5905-01-186-5349 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: 5316101J, 5316-101J, 730091, 5905-01-186-5349, 01-186-5349, 5905011865349, 011865349
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 AUG 1984 | 01-186-5349 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-186-5349
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-186-5349
Technical Data | NSN 5905-01-186-5349
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 100.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 10.000 HEAT SINK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 100.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 150.0 |
| INCLOSURE METHOD | ENCASED |

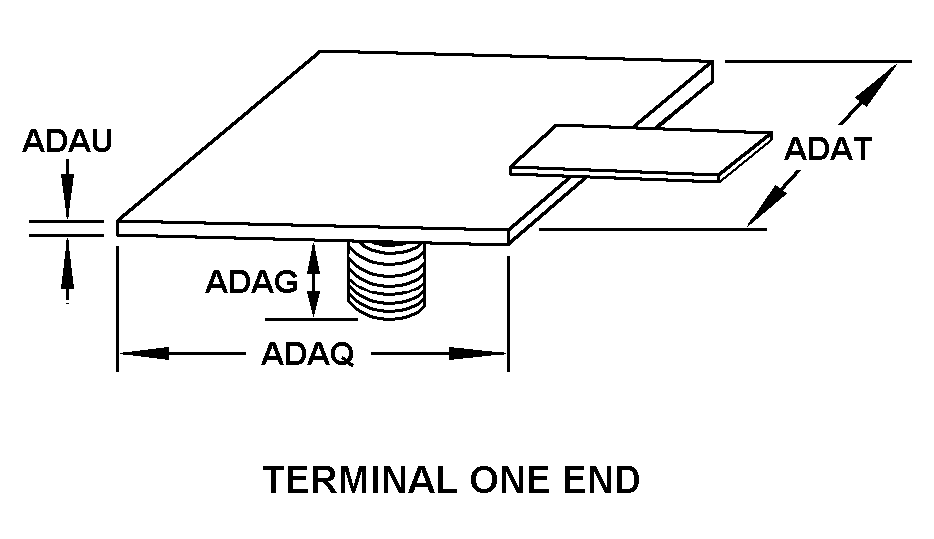

| STYLE DESIGNATOR | 197 TERMINAL ONE END |
| MOUNTING STUD LENGTH | 0.250 INCHES NOMINAL |
| BODY LENGTH | 0.375 INCHES NOMINAL |
| BODY WIDTH | 0.250 INCHES NOMINAL |
| BODY HEIGHT | 0.120 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.100 INCHES MINIMUM |
| TERMINAL WIDTH | 0.065 INCHES NOMINAL |
| III HEAT SINK MATERIAL | ALUMINUM ALLOY |
| III HEAT SINK LENGTH | 6.000 INCHES |
| III HEAT SINK WIDTH | 4.000 INCHES |
| III HEAT SINK HEIGHT | 2.000 INCHES |
| III HEAT SINK THICKNESS | 0.040 INCHES |
| (NON-CORE DATA) PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
