NSN 5905-01-187-6040 FCMB433, 1699830, 1699-83-0
Product Details | FILM FIXED RESISTOR NETWORK
5905-01-187-6040 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: FCMB433, 1699830, 1699-83-0, 240341, 5905-01-187-6040, 01-187-6040, 5905011876040, 011876040
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 AUG 1984 | 01-187-6040 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-187-6040
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-187-6040
Technical Data | NSN 5905-01-187-6040
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 30.100 OHMS 20.900 KILOHMS 750.000 OHMS 4.220 KILOHMS 4.990 KILOHMS 10.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 1 LOWEST RESISTANCE VALUE 1 HIGHEST RESISTANCE VALUE 1 1ST INTERMEDIATE RESISTANCE VALUE 1 2ND INTERMEDIATE RESISTANCE VALUE 2 3RD INTERMEDIATE RESISTANCE VALUE 1 4TH INTERMEDIATE RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -1.000 TO 1.000 -1.000 TO 1.000 -0.100 TO 0.100 -0.100 TO 0.100 -0.100 TO 0.100 -0.100 TO 0.100 |
| POWER DISSIPATION RATING IN WATTS | 0.700 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -50.0 TO 50.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 125.0 |
| SCHEMATIC DIAGRAM DESIGNATOR | 1 ISOLATED ARRAY |
| INCLOSURE METHOD | ENCAPSULATED |

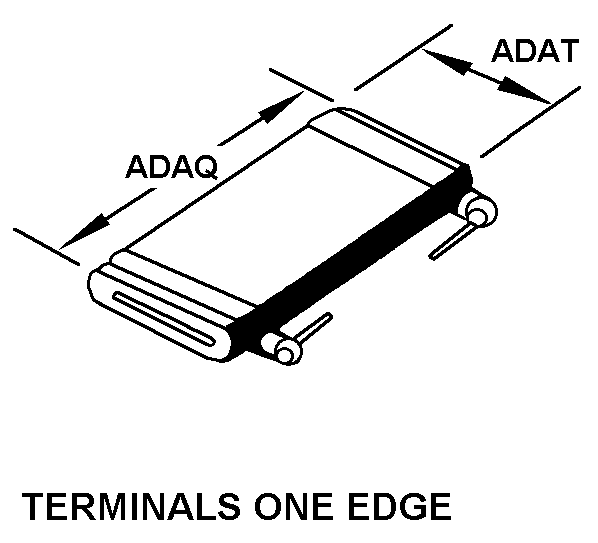

| STYLE DESIGNATOR | 22 TERMINALS ONE EDGE |
| BODY LENGTH | 0.780 INCHES MAXIMUM |
| BODY WIDTH | 0.310 INCHES MAXIMUM |
| BODY HEIGHT | 0.175 INCHES MAXIMUM |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 14 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.135 INCHES NOMINAL |
| TERMINAL WIDTH | 0.018 INCHES NOMINAL |
| III UNPACKAGED UNIT WEIGHT | 1.300 GRAMS |
| (NON-CORE DATA) CUBIC MEASURE | 0.045 CUBIC INCHES |
