NSN 5905-01-193-4914 HS52261001, HS5226-1001, 63035
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-193-4914 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: HS52261001, HS5226-1001, 63035, 5905-01-193-4914, 01-193-4914, 5905011934914, 011934914
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 1984 | 01-193-4914 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |

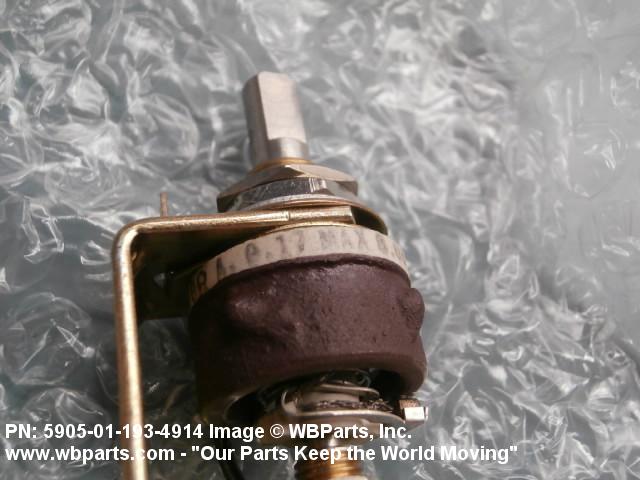

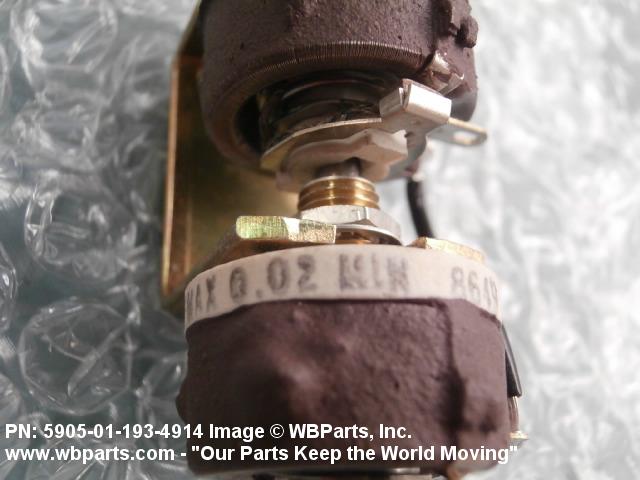

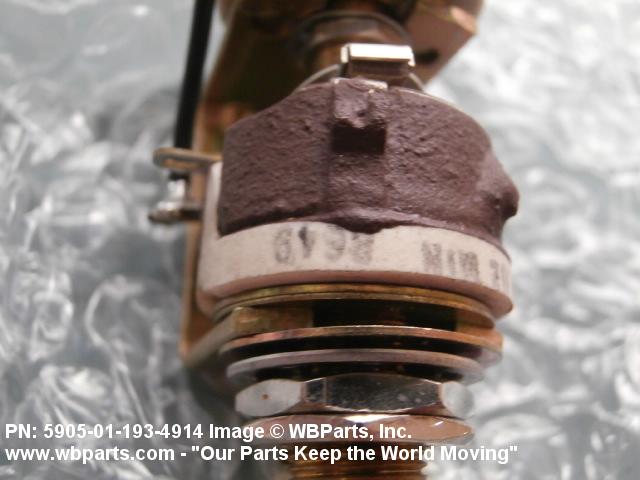

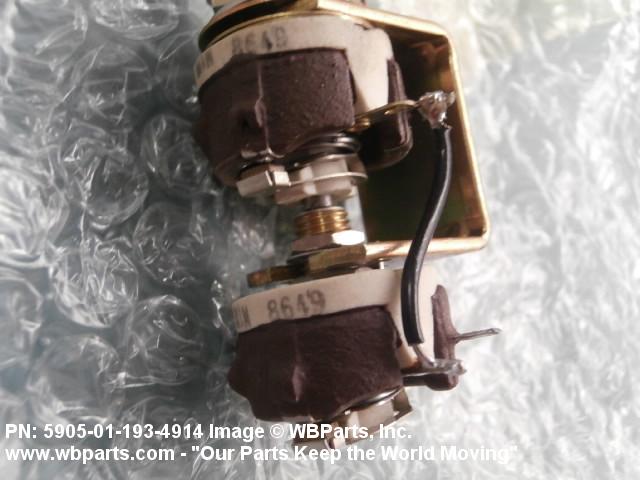

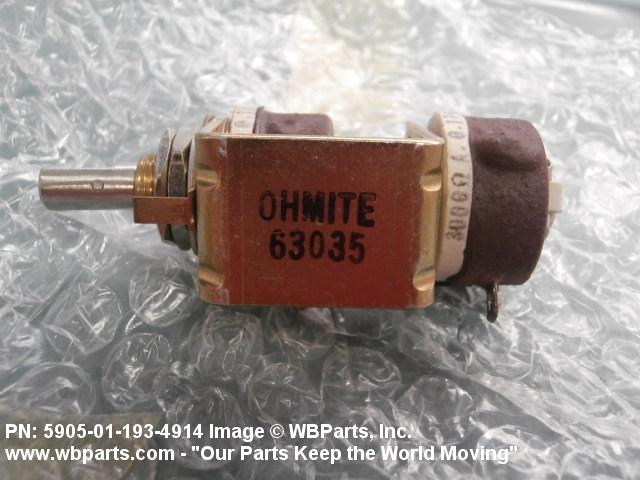

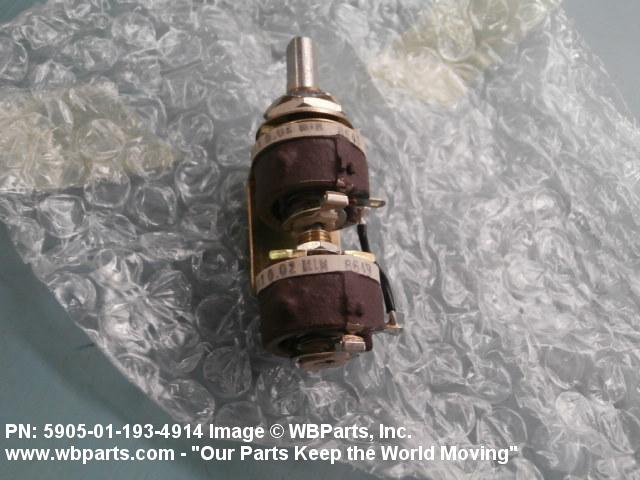

Drawings & Photos | NSN 5905-01-193-4914
Demand History | NSN 5905-01-193-4914
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-193-4914 | 2018-05-130 | 2 | United States |
| 5905-01-193-4914 | 2018-02-52 | 2 | United States |
| 5905-01-193-4914 | 2018-02-40 | 2 | United States |
| 5905-01-193-4914 | 2018-01-01 | 36 | DIBBS |
| 5905-01-193-4914 | 2016-05-130 | 61 | DIBBS |
| 5905-01-193-4914 | 2016-04-119 | 61 | DIBBS |
| 5905-01-193-4914 | 2014-05-130 | 72 | DIBBS |
| 5905-01-193-4914 | 2014-05-125 | 72 | DIBBS |
| 5905-01-193-4914 | 2014-04-118 | 72 | DIBBS |
| 5905-01-193-4914 | 2014-04-114 | 72 | DIBBS |
| 5905-01-193-4914 | 2013-12-351 | 1 | United States |
| 5905-01-193-4914 | 2013-09-267 | 40 | DIBBS |
| 5905-01-193-4914 | 2011-06-155 | 15 | DIBBS |
| 5905-01-193-4914 | 2011-05-123 | 20 | DIBBS |
| 5905-01-193-4914 | 2011-03-67 | 76 | DIBBS |
| 5905-01-193-4914 | 2010-12-349 | 65 | DIBBS |
| 63035 | 2007-12-355 | 8 | us |
| 5905-01-193-4914 | 2007-10-282 | 24 | DIBBS |
