NSN 5905-01-240-7372 C88889, C8888-9, CX4013
Product Details | FILM FIXED RESISTOR NETWORK

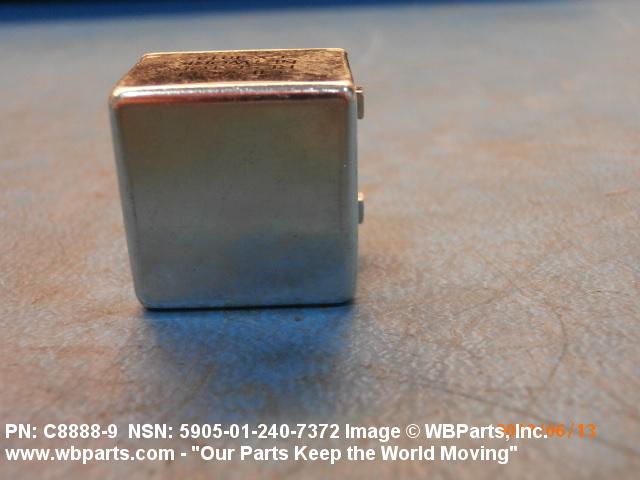

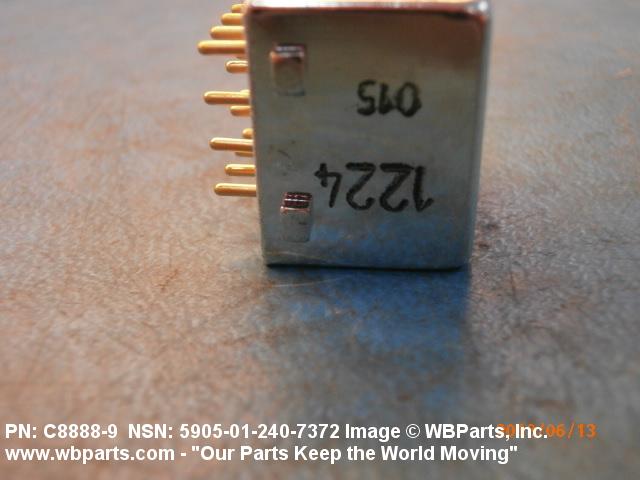

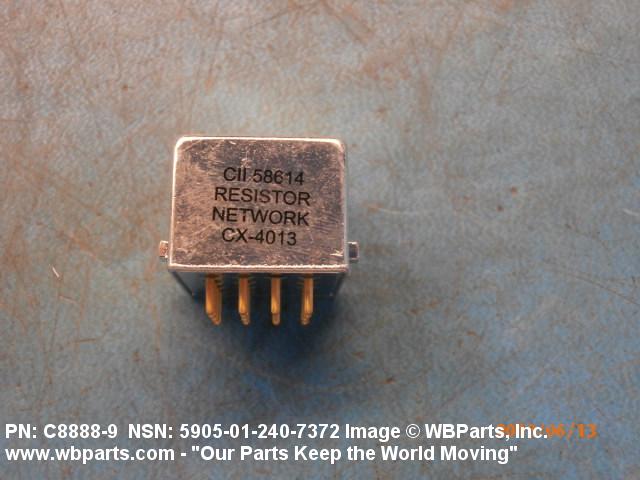

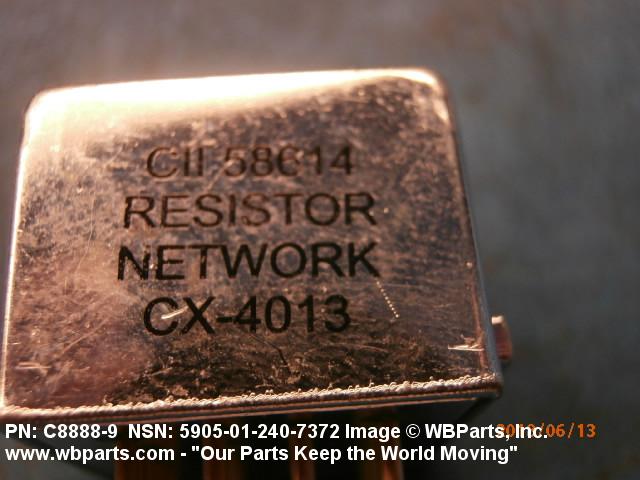

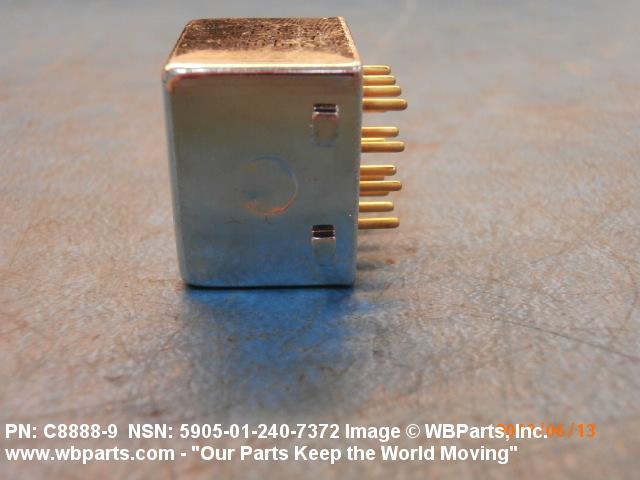

5905-01-240-7372 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: C88889, C8888-9, CX4013, EPH451, EPH-451, 5905-01-240-7372, 01-240-7372, 5905012407372, 012407372
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 SEP 1986 | 01-240-7372 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-240-7372
Demand History | NSN 5905-01-240-7372
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C8888-9 | 2025-03-69 | 56 | DIBBS |
| CX4013 | 2025-03-69 | 56 | DIBBS |
| EPH-451 | 2025-03-69 | 56 | DIBBS |
| C8888-9 | 2025-02-56 | 56 | DIBBS |
| CX4013 | 2025-02-56 | 56 | DIBBS |
| EPH-451 | 2025-02-56 | 56 | DIBBS |
| C8888-9 | 2023-11-331 | 55 | DIBBS |
| CX4013 | 2023-11-331 | 55 | DIBBS |
| EPH-451 | 2023-11-331 | 55 | DIBBS |
| C8888-9 | 2022-07-209 | 25 | DIBBS |
| CX4013 | 2022-07-209 | 25 | DIBBS |
| EPH-451 | 2022-07-209 | 25 | DIBBS |
| 5905-01-240-7372 | 2019-08-232 | 15 | United States |
| C8888-9 | 2019-04-101 | 99 | DIBBS |
| CX4013 | 2019-04-101 | 99 | DIBBS |
| EPH-451 | 2019-04-101 | 99 | DIBBS |
| 5905-01-240-7372 | 2018-12-361 | 36 | DIBBS |
| C88889 | 2018-06-152 | 1 | United States |
| C88889 | 2018-06-152 | 1 | United States |
| 5905-01-240-7372 | 2018-03-88 | 49 | DIBBS |
| 5905-01-240-7372 | 2017-06-169 | 23 | DIBBS |
| 5905-01-240-7372 | 2014-07-183 | 42 | DIBBS |
| 5905-01-240-7372 | 2013-04-91 | 15 | DIBBS |
| 5905-01-240-7372 | 2013-02-53 | 14 | DIBBS |
| 5905-01-240-7372 | 2013-01-03 | 0 | DIBBS |
| 5905-01-240-7372 | 2012-11-334 | 14 | DIBBS |
| 5905-01-240-7372 | 2012-10-277 | 7 | DIBBS |
| 5905-01-240-7372 | 2012-08-226 | 21 | DIBBS |
| 5905-01-240-7372 | 2012-07-187 | 26 | DIBBS |
| 5905-01-240-7372 | 2012-05-151 | 8 | DIBBS |
| 5905-01-240-7372 | 2012-04-115 | 11 | DIBBS |
| 5905-01-240-7372 | 2012-03-68 | 0 | DIBBS |
| 5905-01-240-7372 | 2010-01-26 | 20 | DIBBS |
| 5905-01-240-7372 | 2009-07-204 | 10 | Singapore |
| 5905-01-240-7372 | 2008-10-281 | 32 | DIBBS |
| 5905-01-240-7372 | 2007-07-207 | 13 | DIBBS |
| 5905-01-240-7372 | 2007-02-36 | 51 | DIBBS |
Cross Reference | NSN 5905-01-240-7372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C8888-9 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| CX4013 | 00213 | STRUTHERS-DUNN LLC |
| CX4013 | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| CX4013 | 78290 | STRUTHERS-DUNN INC |
| EPH-451 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-240-7372
Related Products | NSN 5905-01-240-7372
Technical Data | NSN 5905-01-240-7372
| Characteristic | Specifications |
|---|---|

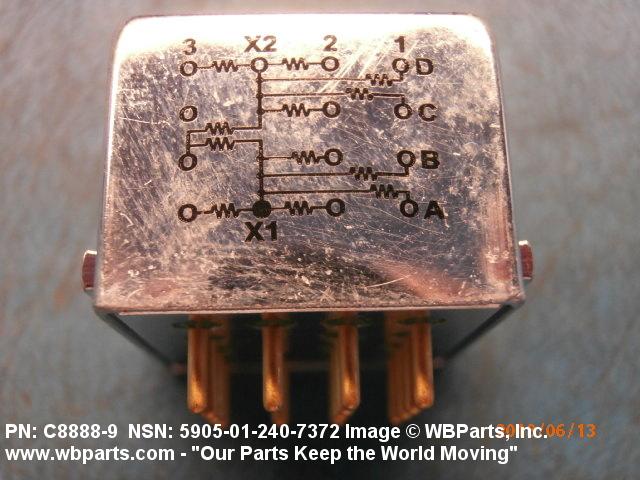

| ELECTRICAL RESISTANCE | 390.000 OHMS 2.000 KILOHMS 680.000 OHMS 1.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 5 LOWEST RESISTANCE VALUE 1 HIGHEST RESISTANCE VALUE 2 1ST INTERMEDIATE RESISTANCE VALUE 4 2ND INTERMEDIATE RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -2.000 TO 2.000 |
| POWER DISSIPATION RATING IN WATTS | 0.250 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 85.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -50.0 TO 50.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 85.0 |
| INCLOSURE METHOD | HERMETICALLY SEALED |
| STYLE DESIGNATOR | 142 TERMINALS ONE EDGE |

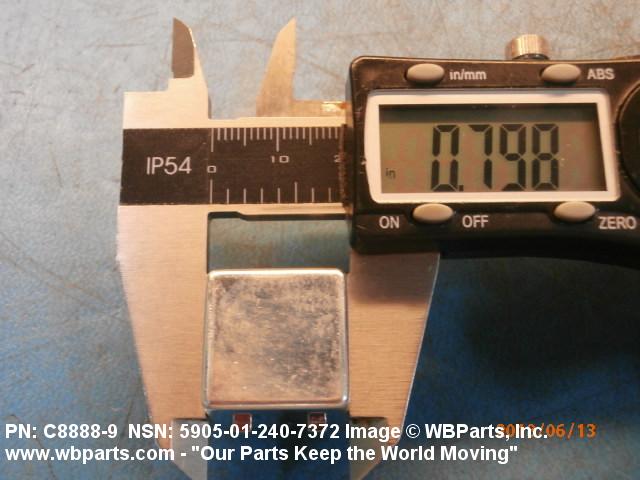

| BODY LENGTH | 0.810 INCHES MAXIMUM |

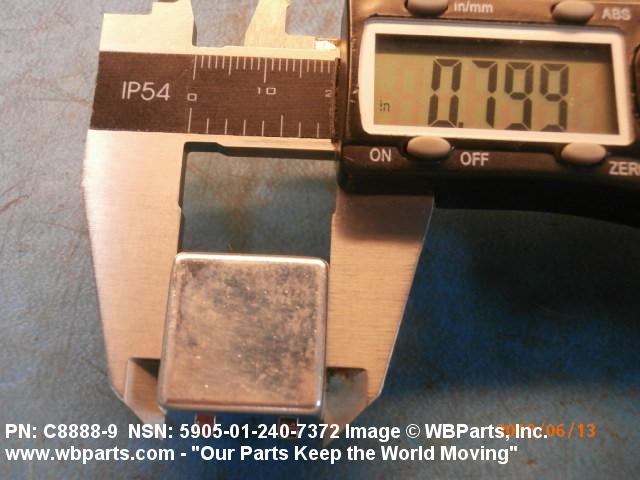

| BODY WIDTH | 0.640 INCHES MAXIMUM |
| BODY HEIGHT | 0.810 INCHES MAXIMUM |
| TERMINAL TYPE | PIN |

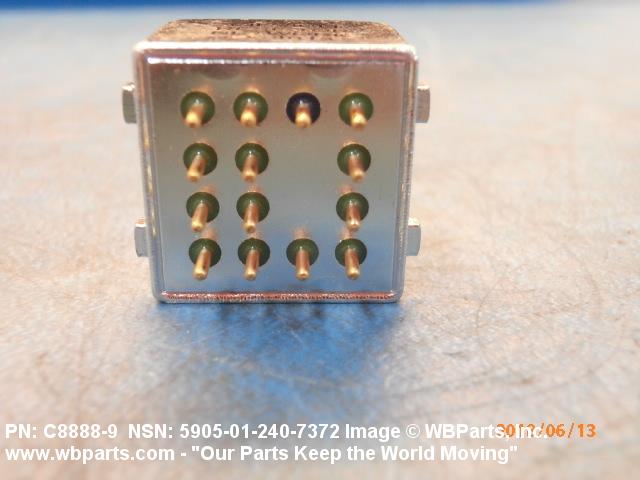

| TERMINAL QUANTITY | 16 |
