NSN 5905-01-303-7385 HVCW100KOHMSPORM15PCT, 01-303-7385, 013037385
Product Details | FILM FIXED RESISTOR
5905-01-303-7385 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: HVCW100KOHMSPORM15PCT, 5905-01-303-7385, 01-303-7385, 5905013037385, 013037385
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-303-7385 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-303-7385
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-303-7385
Technical Data | NSN 5905-01-303-7385
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 100.000 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -15.000 TO 15.000 |
| POWER DISSIPATION RATING IN WATTS | 3.000 FREE AIR |

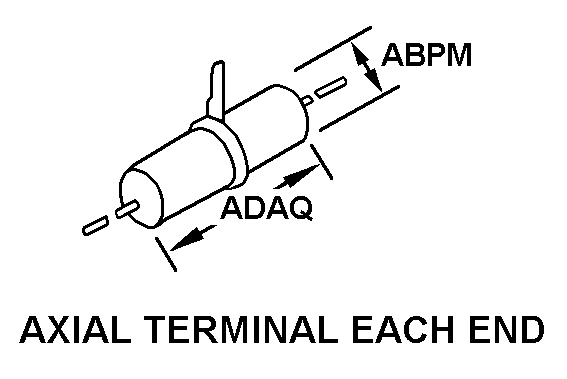

| STYLE DESIGNATOR | 128 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 3.180 INCHES NOMINAL |
| BODY LENGTH | 5.160 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-01-303-7385
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
