NSN 5905-01-335-8384 CB1520F, CB-1520-F , CB-1520-F-STYLE 1

Product Details | MOTOR DRIVEN VARIABLE RESISTOR

5905-01-335-8384 A resistor, whose resistance value is controlled by an electric motor, which is coupled to the resistor shaft by a friction type clutch.

Part Alternates: CB1520F, CB-1520-F , CB-1520-F-STYLE 1, CB1520FSTYLE1, CD1520F, CD-1520-F, U306236, 5905-01-335-8384, 01-335-8384, 5905013358384, 013358384

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 MAR 1991	01-335-8384	60948 ( RESISTOR, VARIABLE, MOTOR DRIVEN )

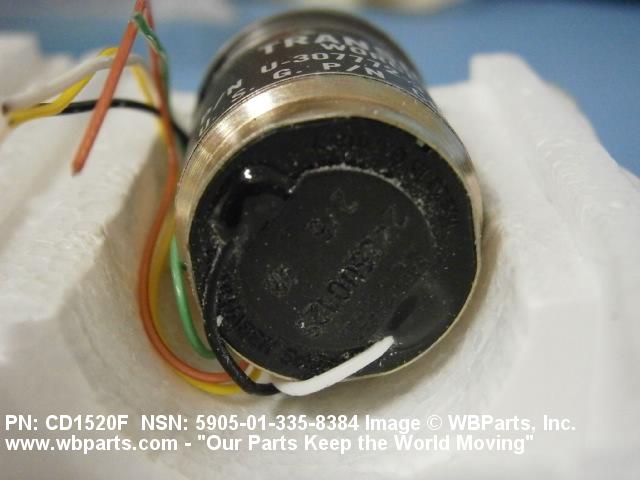

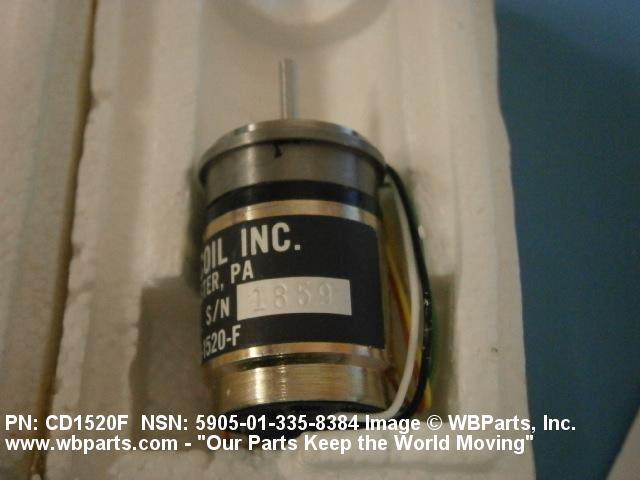

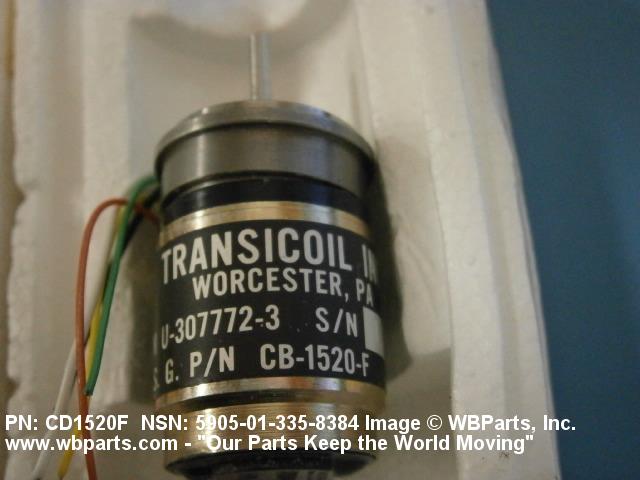

Drawings & Photos | NSN 5905-01-335-8384

Part Number	Request Date	QTY	Origin
CB-1520-F	2022-03-79	2	DIBBS
U306236	2022-03-79	2	DIBBS
CB-1520-F	2021-06-172	2	DIBBS
U306236	2021-06-172	2	DIBBS
CB-1520-F	2021-03-87	2	DIBBS
U306236	2021-03-87	2	DIBBS
CB-1520-F	2020-10-294	4	DIBBS
U306236	2020-10-294	4	DIBBS
CB1520F	2019-08-240	1	US
CB-1520-F	2019-07-196	2	DIBBS
U306236	2019-07-196	2	DIBBS
CB-1520-F	2019-07-191	2	DIBBS
U306236	2019-07-191	2	DIBBS
CB-1520-F	2019-07-185	2	DIBBS
U306236	2019-07-185	2	DIBBS
CB-1520-F	2019-04-94	2	DIBBS
U306236	2019-04-94	2	DIBBS
CB-1520-F	2019-02-56	4	DIBBS
U306236	2019-02-56	4	DIBBS
CB-1520-F	2019-02-45	4	DIBBS
U306236	2019-02-45	4	DIBBS
5905-01-335-8384	2017-10-274	2	DIBBS
5905-01-335-8384	2017-08-243	2	DIBBS
5905-01-335-8384	2017-07-211	2	DIBBS
5905-01-335-8384	2017-07-198	2	DIBBS
5905-01-335-8384	2017-03-61	2	DIBBS
5905-01-335-8384	2016-10-301	2	DIBBS
5905-01-335-8384	2015-05-138	3	DIBBS
5905-01-335-8384	2015-05-126	2	DIBBS
5905-01-335-8384	2015-03-82	2	DIBBS
5905-01-335-8384	2015-03-70	2	DIBBS
5905-01-335-8384	2013-10-283	2	DIBBS
5905-01-335-8384	2013-06-171	2	DIBBS
5905-01-335-8384	2013-03-70	2	DIBBS
5905-01-335-8384	2012-05-130	2	DIBBS
5905-01-335-8384	2012-04-111	2	DIBBS
5905-01-335-8384	2012-03-62	2	DIBBS
U306236	2011-11-325	1	United States
5905-01-335-8384	2010-07-208	2	DIBBS
5905-01-335-8384	2009-12-357	2	DIBBS

Cross Reference | NSN 5905-01-335-8384

Part Number	Cage Code	Manufacturer
CB-1520-F	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
CB-1520-F-STYLE 1	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
CD-1520-F	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
U306236	82686	TRANSICOIL LLC DBA ADS/TRANSICOIL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-335-8384

Compare

Related Products | NSN 5905-01-335-8384

5905-01-335-8908, 5905-01-335-8909, 5905-01-335-8910, 5905-01-335-8911, 5905-01-335-8912

Technical Data | NSN 5905-01-335-8384

Characteristic	Specifications
SECTION QUANTITY	1
RESISTANCE ELEMENT TYPE PER SECTION	SINGLE SECTION CONDUCTIVE PLASTIC
ELECTRICAL RESISTANCE PER SECTION	30.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT	-10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION	SINGLE SECTION LINEAR
FUNCTION CONFORMITY PER SECTION	SINGLE SECTION INDEPENDENT LINEARITY
FUNCTION CHARACTERISTIC PER SECTION	SINGLE SECTION LINEAR
FUNCTION CONFORMITY TOLERANCE PER SECTION	-0.25 TO 0.25 SINGLE SECTION

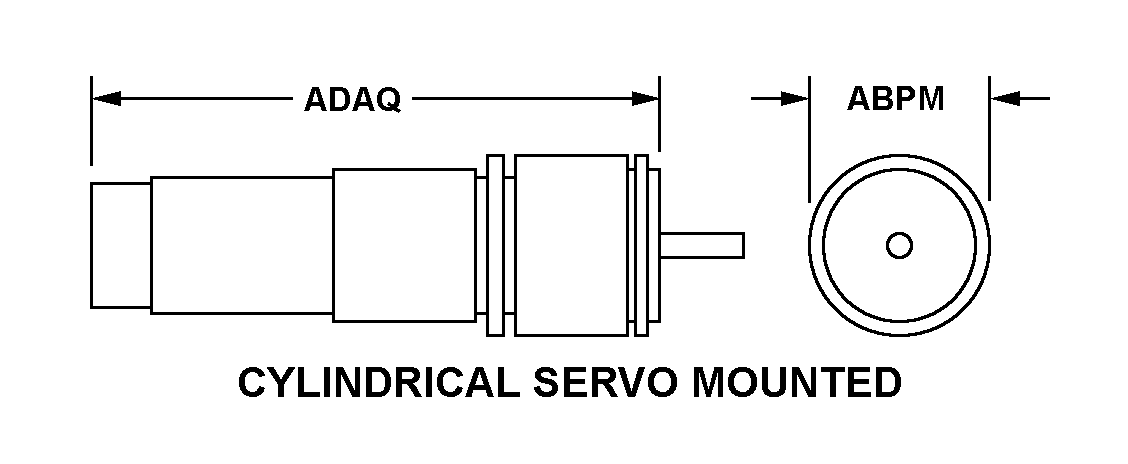

BODY STYLE	4A CYLINDRICAL SERVO MOUNTED
BODY DIAMETER	0.913 INCHES NOMINAL
BODY LENGTH	1.381 INCHES MAXIMUM
SHAFT STYLE	1B ROUND
SHAFT DIAMETER	0.090 INCHES NOMINAL
SHAFT LENGTH	0.563 INCHES NOMINAL
MOUNTING METHOD	CLAMP RING
MOUNTING FACILITY QUANTITY	1
MOTOR TYPE	PERMANENT MAGNET
MOTOR VOLTAGE TYPE AND RATING IN VOLTS	7.0 DC
TERMINAL TYPE AND QUANTITY	5 WIRE LEAD
III END ITEM IDENTIFICATION	6685-01-244-1353 INDICATOR,TEMPE

Restrictions/Controls & Freight Information | NSN 5905-01-335-8384

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	B	ESD sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062960	REOSTATS/PARTS NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5905-01-335-8384

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
