NSN 5905-01-361-2631 CM466835KOHM, 14900071, 1490007-1
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-361-2631 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: CM466835KOHM, 14900071, 1490007-1, 5905-01-361-2631, 01-361-2631, 5905013612631, 013612631
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-361-2631 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |

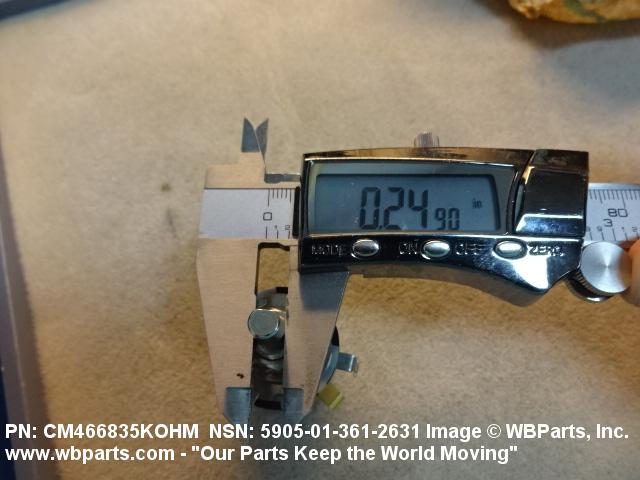

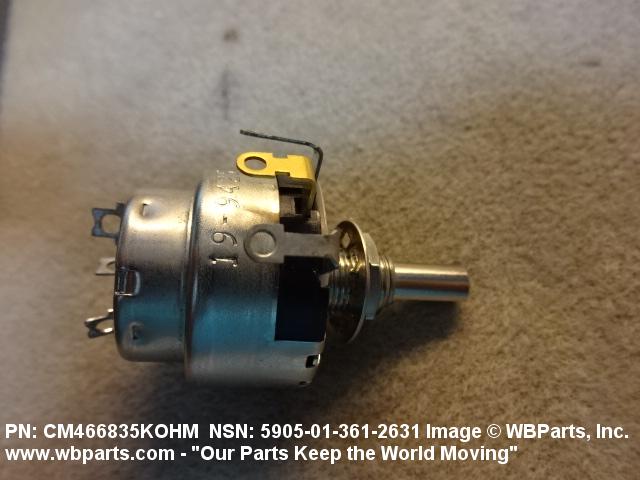

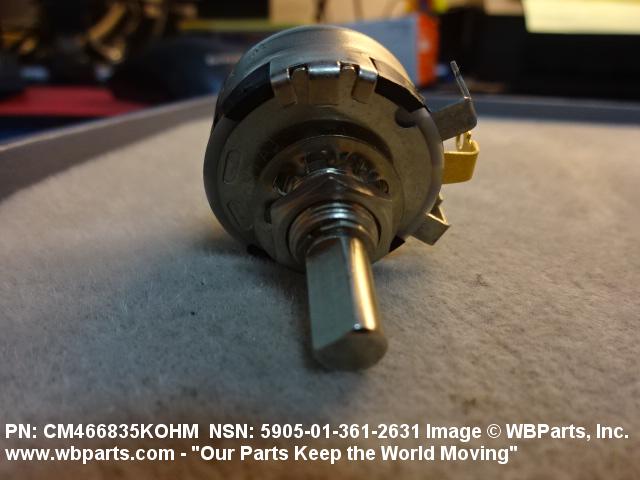

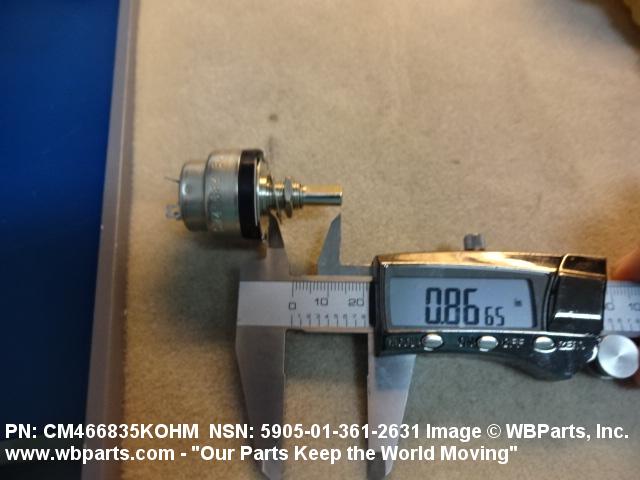

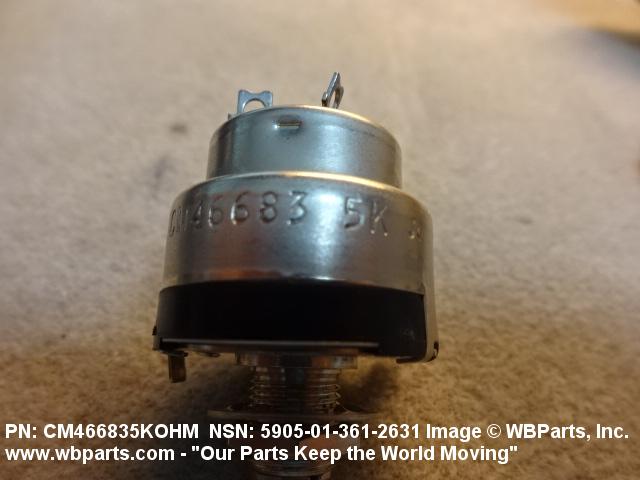

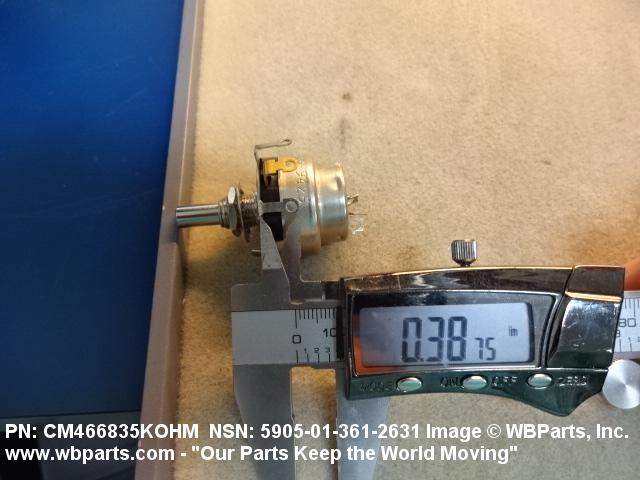

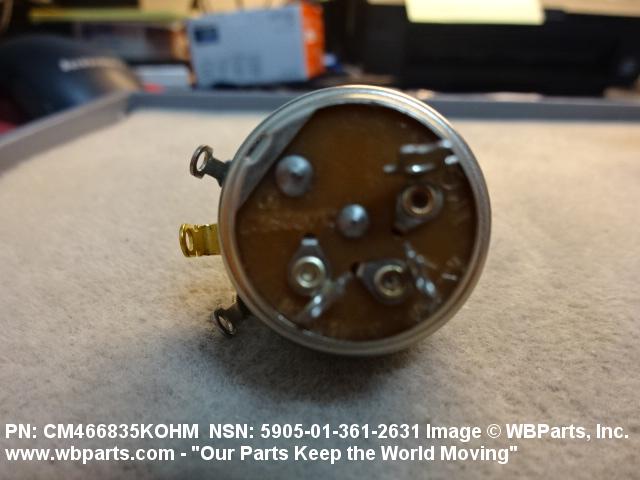

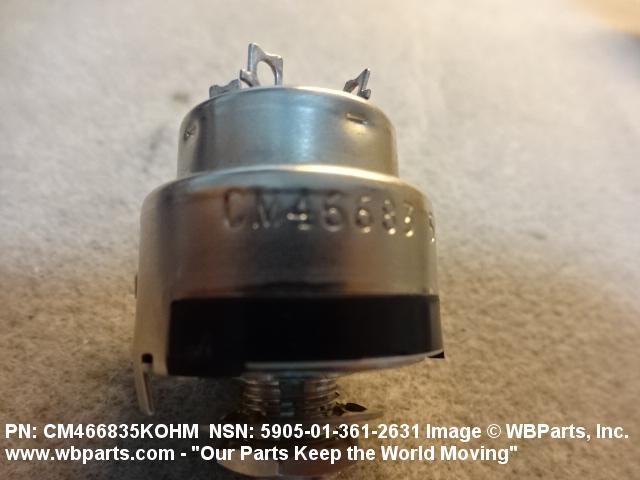

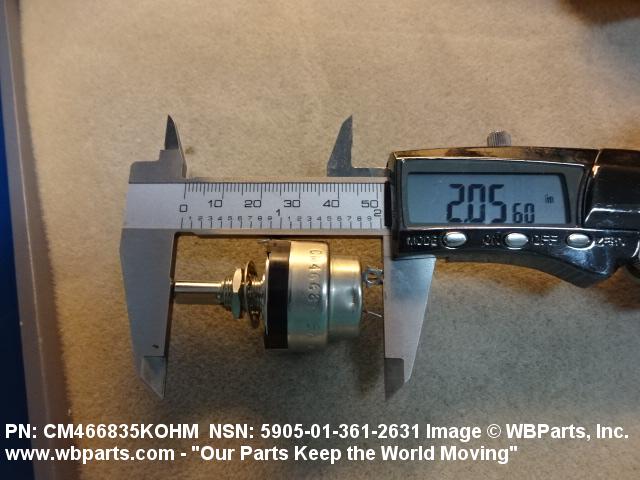

Drawings & Photos | NSN 5905-01-361-2631
Demand History | NSN 5905-01-361-2631
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CM466835KOHM | 2023-02-52 | 2 | US |
| 5905-01-361-2631 | 2019-04-101 | 2 | United States |
| 5905-01-361-2631 | 2011-08-241 | 1 | US |
| 5905-01-361-2631 | 2011-08-238 | 1 | United States |
| 5905-01-361-2631 | 2009-10-279 | 13 | DIBBS |
| 5905-01-361-2631 | 2009-02-36 | 6 | us |
| 5905-01-361-2631 | 2009-01-09 | 6 | DIBBS |
| 5905-01-361-2631 | 2008-12-344 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-361-2631
Technical Data | NSN 5905-01-361-2631
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 5.0 KILOHMS SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |

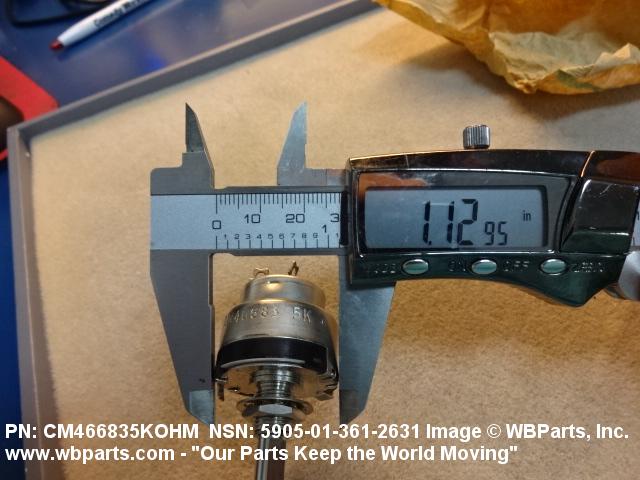

| BODY DIAMETER | 1.130 INCHES NOMINAL |
| BODY LENGTH | 0.590 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 2C ROUND, FLATTED |
| FIRST FLAT LENGTH | 0.437 INCHES NOMINAL |
| FLAT HEIGHT | 0.216 INCHES NOMINAL |
| SHAFT DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |
| CONTACT ARM ELECTRICAL OFF POSITION | FULLY CCW |
Restrictions/Controls & Freight Information | NSN 5905-01-361-2631
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
