NSN 5905-01-361-6261 13313370, 70-18257-01, 01-361-6261
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-361-6261 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 13313370, 70-18257-01, 5905-01-361-6261, 01-361-6261, 5905013616261, 013616261, 701825701
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-361-6261 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |

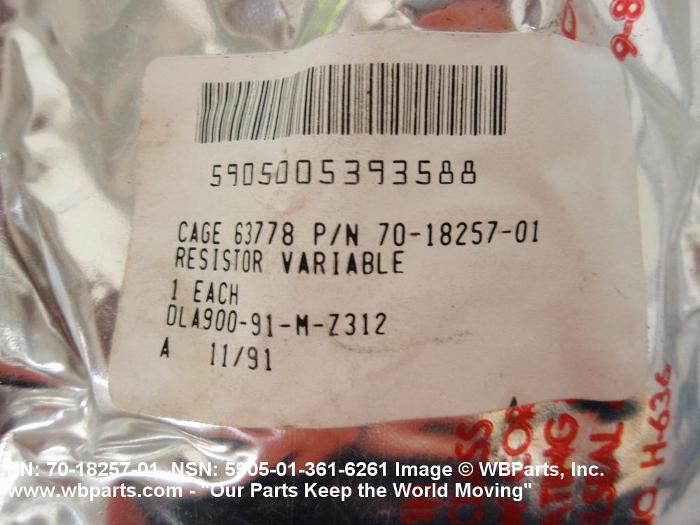

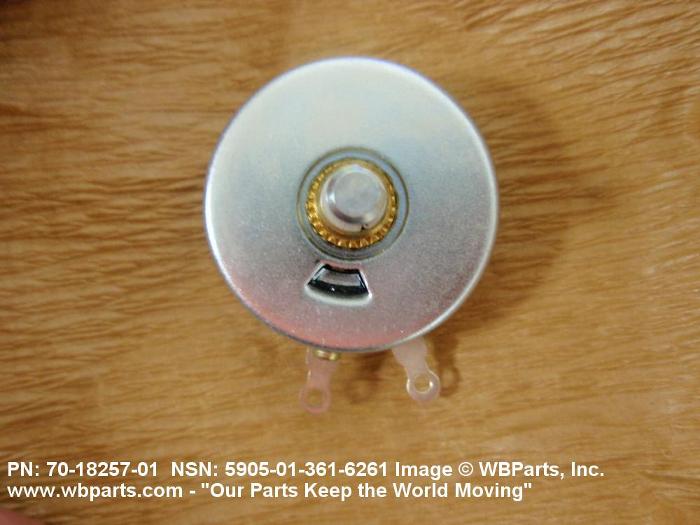

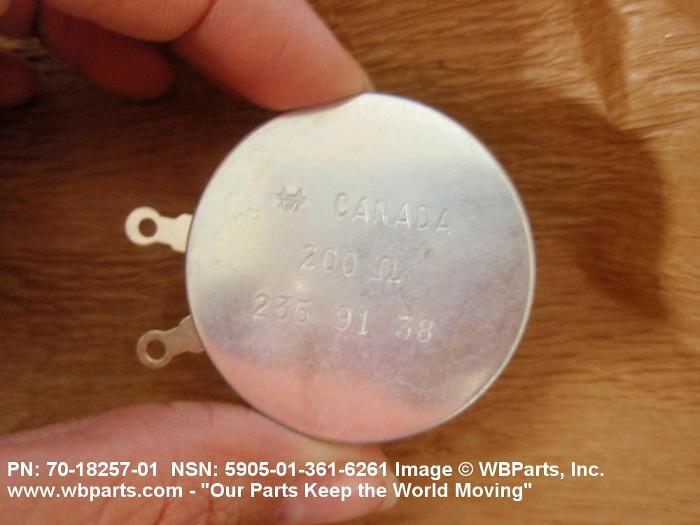

Drawings & Photos | NSN 5905-01-361-6261
Demand History | NSN 5905-01-361-6261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-361-6261 | 2011-05-126 | 8 | Taiwan |
| 5905-01-361-6261 | 2011-03-66 | 8 | US |
| 5905-01-361-6261 | 2011-02-53 | 8 | Taiwan |
| 5905-01-361-6261 | 2010-11-327 | 2 | Taiwan |
| 5905-01-361-6261 | 2010-07-193 | 10 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-361-6261
Technical Data | NSN 5905-01-361-6261
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 200.0 OHMS SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY LENGTH | 0.532 INCHES MINIMUM AND 0.592 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.345 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 1C ROUND |
| SHAFT DIAMETER | 0.246 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHAFT LENGTH | 0.751 INCHES MINIMUM AND 0.811 INCHES MAXIMUM |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.345 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIFICATION/STANDARD DATA | 18876-13313370 MANUFACTURERS SPECIFICATION CONTROL |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5905-01-361-6261
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
