Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-080-4664 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: 1955939002, 195-593-9002, 20044030703, 2004403-0703, 2DDU62D104ZAB, 5910-00-080-4664, 00-080-4664, 5910000804664, 000804664
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 DEC 1967 | 00-080-4664 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |

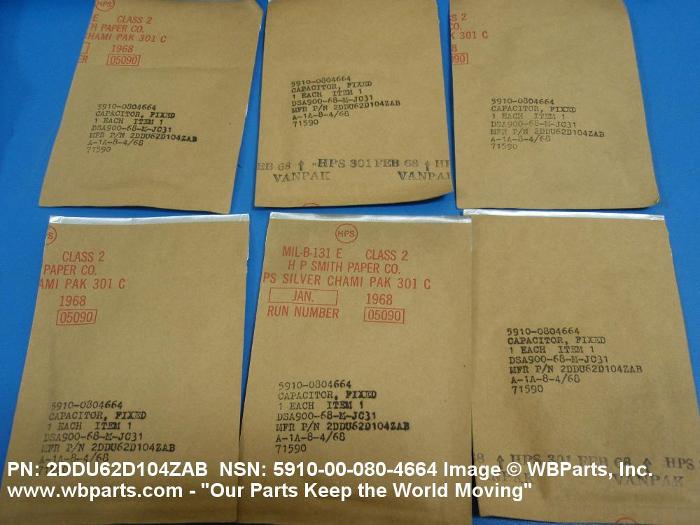

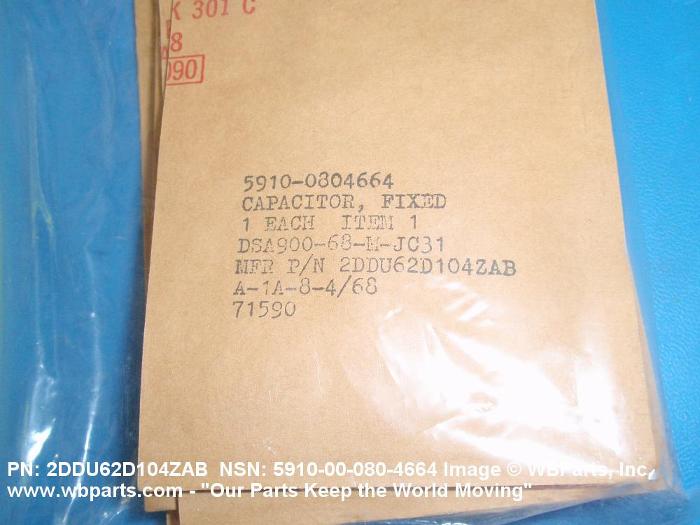

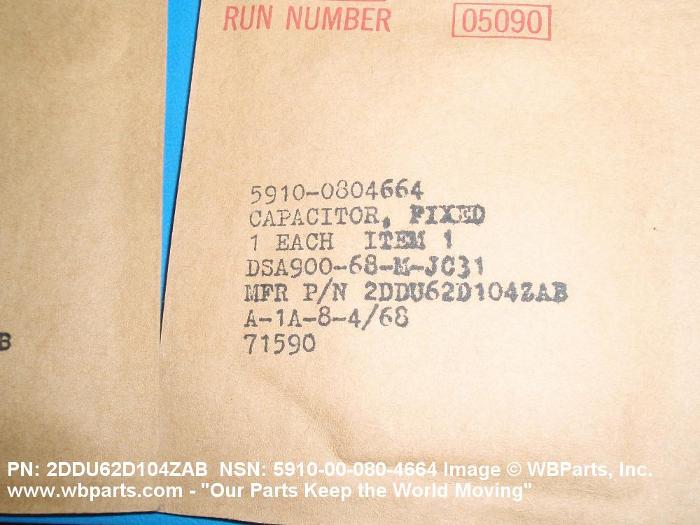

Drawings & Photos | NSN 5910-00-080-4664
Demand History | NSN 5910-00-080-4664
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5910-00-080-4664
5910-00-080-4690, 5910-00-080-4829, 5910-00-080-4832, 5910-00-080-4859, 5910-00-080-4866
Technical Data | NSN 5910-00-080-4664
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 80.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 20.0 DC SINGLE SECTION |
| VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE | -56.0 TO 22.0 WITHOUT VOLTAGE APPLIED SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 22B W/O MTG FACILITIES, RADIAL TERMINALS |
| BODY DIAMETER | 0.509 INCHES MAXIMUM |
| BODY LENGTH | 0.156 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.375 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 10.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 0.156 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL HEIGHT | 0.509 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 0.509 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5910-00-080-4664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
