NSN 5910-00-128-7765 0S1707, 31151, 3115-1
Product Details | CERAMIC DIELECTRIC VARIABLE CAPACITOR
5910-00-128-7765 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 0S1707, 31151, 3115-1, 5910-00-128-7765, 00-128-7765, 5910001287765, 001287765
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-128-7765 | 00721 ( CAPACITOR, VARIABLE, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-128-7765
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-128-7765
Technical Data | NSN 5910-00-128-7765
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 3.0 TO 12.0 SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | -500.0 SINGLE SECTION |

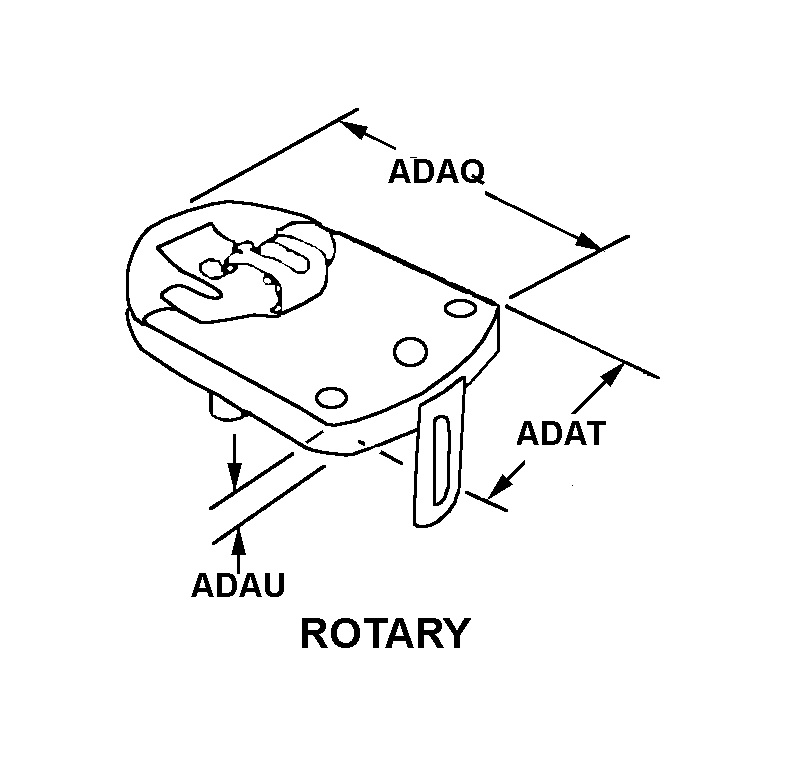

| BODY STYLE | 48 ROTARY |
| BODY LENGTH | 0.835 INCHES NOMINAL |
| BODY WIDTH | 0.610 INCHES NOMINAL |
| BODY HEIGHT | 0.137 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.119 INCHES NOMINAL AND 0.119 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-128-7765
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
