Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR

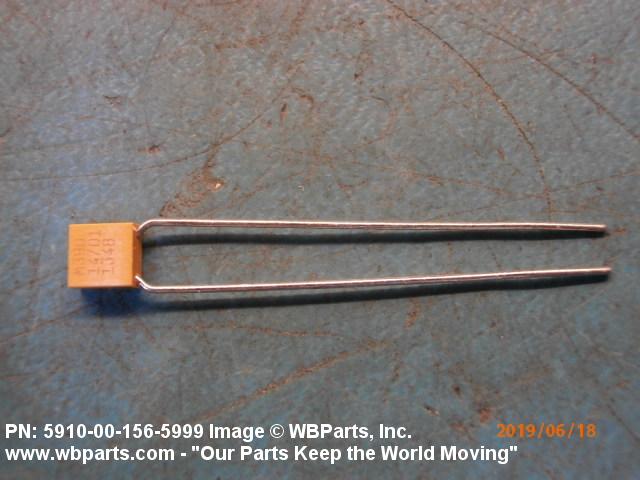

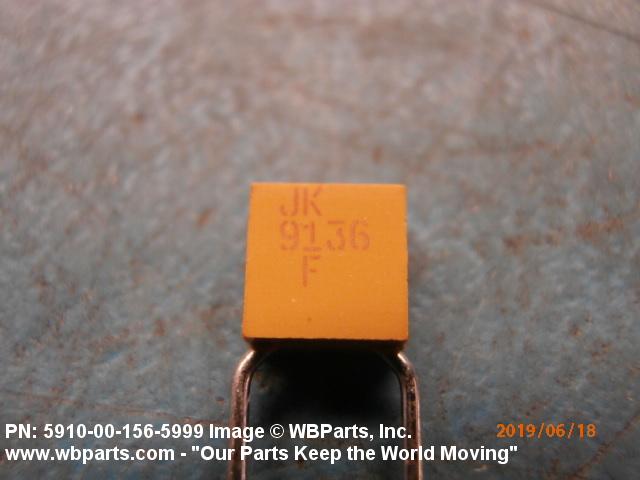

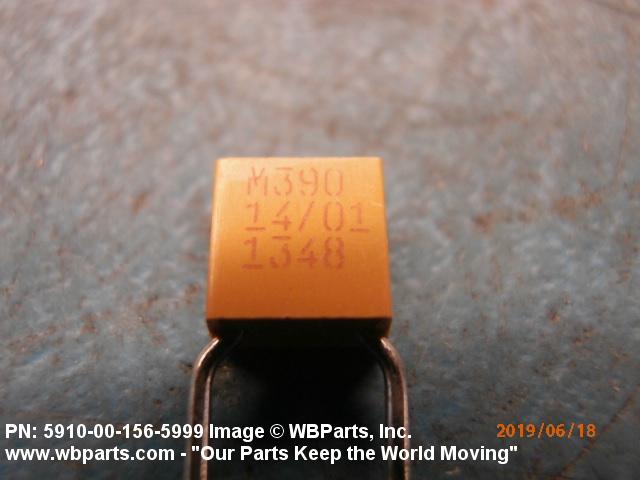

5910-00-156-5999 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.

Part Alternates: M22721, M22-721, M39014/01-0309, M39014/01-1269, M39014/01-1348, M39014/01-1349, M39014/01-1388, M39014/1-1228, M39014/1-1308, M39014010228, M39014-01-0228, M39014010229, M39014-01-0229, M39014010309, M39014010349, M39014-01-0349, M39014011228, M39014-01-1228, M39014011228V, M39014-01-1228V, M39014011229, M39014-01-1229, M39014011268, M39014-01-1268, M39014011269, M39014011308, M39014-01-1308, M39014011309, M39014-01-1309, M39014011348, M39014011349, M39014011388, M3901411228, M3901411308, M3901411348, M39014-1-1348, MC52CW331K, A41019, A41-019, B100043003, B100043-003, B95004J0028B100, BACR15AP592, BACR15AP5-92, C052C331K2X5CA, C052K331M1X1CA, C052T331K2X5CP, C096601349, C09660-1349, CER05CW331K, CK05B331K, CK05BX331J, CK05BX331K, CK05BX331KR, CK05NX331K, CK41BX331K, CKR05BX331MP, EK200, KS19708L2K330PF, KS19708L2K-330PF, KV20CW, MILC1101524, MILC11015-24, MIL-C-39014/1, MILC390141, VA050319028, VA-05-0319-028, VK20CW331K, 7906459-27, 047002552019, 047-002552-019, 07784, 10134848, 102-412-331, 10249-0134, 14501136001, 14501136-001, 172280-228, 209990010449, 209-990010-449, 2233310B, 4006200-11, 4111885178, 4111885-178, 4411041019, 441-1041-019, 4411182018, 441-1182-018, 4411272004, 441-1272-004, 472901, 4729-01, 50754044, 507540-44, 53210428, 532104-28, 2606435-28, 339315-436, 339351-060, 352250007999, 538135-228, 538135-268, 538135-308, 6L.5224.032.00-443546, 6L522403200443546, 705744K19, 804147-331, 8123002V5U331K, 8123-002V5U331K, 8123D1BGEV5U331K, 8123Z1000331KX, 8123Z-100-0331-K-X, 8330211268, 833021-1268, 9134012000, 913-4012-000, 9134012001, 913-4012-001, 9134489330, 913-4489-330, 94100411, 941004-11, 9472541348, 947254-1348, 9607581, 960758-1, 5910-00-156-5999, 00-156-5999, 5910001565999, 538135308, 790645927, 538135268, 400620011, 339351060, 339315436, 001565999, 102490134, 102412331, 260643528, 172280228, 538135228, 804147331

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 JAN 1973	00-156-5999	00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC )

Drawings & Photos | NSN 5910-00-156-5999

Part Number	Request Date	QTY	Origin
5910-00-156-5999	2023-02-33	725	DIBBS
5910-00-156-5999	2020-09-274	1471	DIBBS
5910-00-156-5999	2019-03-87	5	Taiwan
5910-00-156-5999	2018-11-310	5	Taiwan
M39014010228	2012-09-271	1	United States
MILC390141	2012-06-173	3	United States

Cross Reference | NSN 5910-00-156-5999

Part Number	Cage Code	Manufacturer
047-002552-019	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
07784	25420	MOTOROLA/CODEX CORP SUB OF MOTOROLA INC
102-412-331	20747	L-3 COMMUNICATIONS CORPORATION DBA GLOBAL NETWORK SOLUTIONS DIV
10249-0134	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
14501136-001	17479	HONEYWELL INC COMMERCIAL DIV
172280-228	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
209-990010-449	38753	CMC ELECTRONICS INC
2233310B	KA042	QES LTD QUALITY ELECTRONIC SERVICES
2606435-28	06424	ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS
339315-436	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
339351-060	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
352250007999	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
4006200-11	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4111885-178	05869	RAYTHEON COMPANY DBA RAYTHEON
441-1041-019	94756	BOEING COMPANY, THE DBA BOEING
441-1182-018	94756	BOEING COMPANY, THE DBA BOEING
441-1272-004	94756	BOEING COMPANY, THE DBA BOEING
4729-01	05464	INDUSTRIAL ELECTRONIC ENGINEERS, INC.
507540-44	96214	RAYTHEON COMPANY DBA RAYTHEON
532104-28	96214	RAYTHEON COMPANY DBA RAYTHEON
538135-228	96214	RAYTHEON COMPANY DBA RAYTHEON
538135-268	96214	RAYTHEON COMPANY DBA RAYTHEON
538135-308	96214	RAYTHEON COMPANY DBA RAYTHEON
6L.5224.032.00-443546	D0327	SELEX COMMUNICATIONS GMBH
705744K19	73030	HAMILTON SUNDSTRAND CORPORATION
7906459-27	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
804147-331	53938	EVANS & SUTHERLAND COMPUTER CORPORATION
8123-002V5U331K	72982	ERIE SPECIALTY PRODUCTS INC
8123D1BGEV5U331K	72982	ERIE SPECIALTY PRODUCTS INC
8123Z-100-0331-K-X	K3921	VISHAY LTD
833021-1268	65597	THALES DEFENSE & SECURITY, INC.
913-4012-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
913-4012-001	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
913-4012-001	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
913-4489-330	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
941004-11	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
947254-1348	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
960758-1	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
A41-019	00656	AEROVOX CORP.
B100043-003	17981	SCI SYSTEMS INC
B95004J0028B100	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS
BACR15AP5-92	81205	THE BOEING COMPANY DBA BOEING
C052C331K2X5CA	31433	KEMET ELECTRONICS CORPORATION DBA KEMET
C052K331M1X1CA	05397	UNION CARBIDE CORP MATERIALS SYSTEMS DIV
C052T331K2X5CP	31433	KEMET ELECTRONICS CORPORATION DBA KEMET
C09660-1349	04274	ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND
CER05CW331K	14158	AVX FILTERS
CK05B331K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CK05BX331J	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CK05BX331K	72982	ERIE SPECIALTY PRODUCTS INC
CK05BX331K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CK05BX331KR	90201	MALLORY SONALERT PRODUCTS INC.
CK05NX331K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CK41BX331K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CKR05BX331MP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
EK200	20932	ILLINOIS TOOL WORKS INC EMCON DIV
KS19708L2K-330PF	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
KV20CW	95275	VITRAMON INC PO BOX 544 BRIDGEPORT CT 06601
M22-721	54418	MILTOPE CORPORATION
M39014-01-0228	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-0229	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-0349	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1228	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1228V	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1229	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1268	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1308	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-01-1309	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014-1-1348	96095	AVX CORPORATION DBA OLEAN ADVANCED PRODUCTS
M39014/01-0309	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/01-1269	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/01-1348	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/01-1349	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/01-1388	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/1-1228	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39014/1-1308	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MC52CW331K	00656	AEROVOX CORP.
MIL-C-39014/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC11015-24	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
VA-05-0319-028	K0668	SELEX ES LTD DBA SELEX S & A S
VK20CW331K	95275	VITRAMON INC PO BOX 544 BRIDGEPORT CT 06601

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5910-00-156-5999

Compare

Related Products | NSN 5910-00-156-5999

5910-00-156-6000, 5910-00-156-6001, 5910-00-156-6249, 5910-00-156-6254, 5910-00-156-6255

Technical Data | NSN 5910-00-156-5999

Characteristic	Specifications
CAPACITANCE VALUE PER SECTION	330.000 PICOFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION	-10.00 TO 10.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION	200.0 DC SINGLE SECTION
VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE	-25.0 TO 15.0 WITH RATED VOLTAGE APPLIED SINGLE SECTION
NONDERATED OPERATING TEMP	-55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
BODY STYLE	27A W/O MTG FACILITIES TERMINAL(S) ON ONE SURFACE

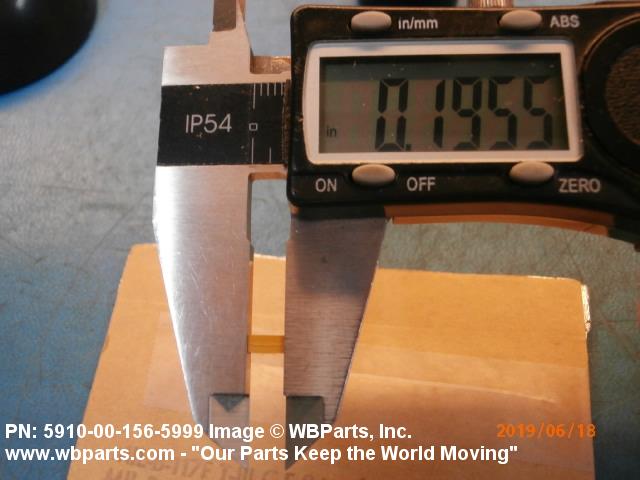

BODY LENGTH	0.190 INCHES NOMINAL

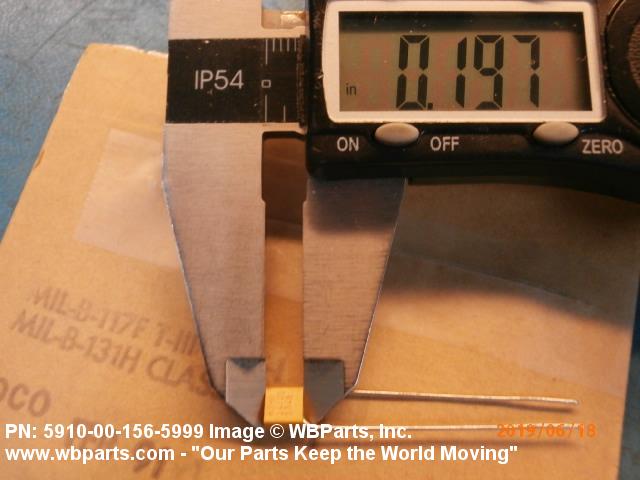

BODY WIDTH	0.190 INCHES NOMINAL

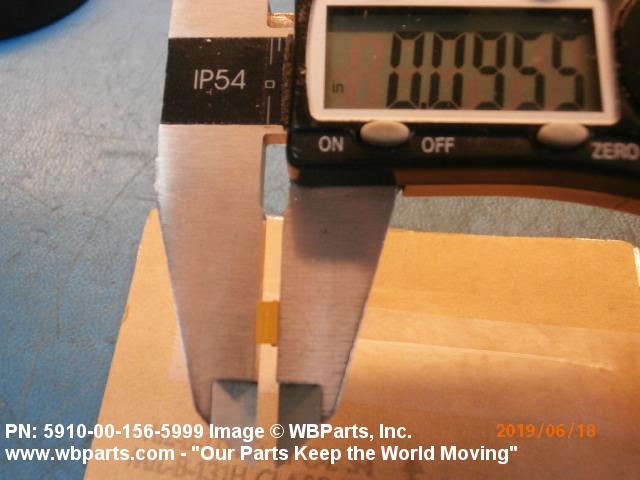

BODY HEIGHT	0.090 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR	1C NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL TYPE AND QUANTITY	2 UNINSULATED WIRE LEAD

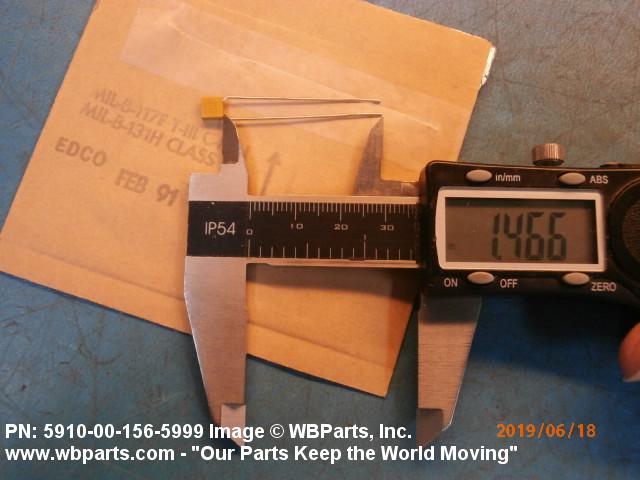

TERMINAL LENGTH	1.250 INCHES MINIMUM
