NSN 5910-00-345-6858 JMC7265, 7265, 4174228P001
Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-345-6858 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: JMC7265, 7265, 4174228P001, 4174228P1, 5910-00-345-6858, 00-345-6858, 5910003456858, 003456858
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 1974 | 00-345-6858 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-345-6858
Cross Reference | NSN 5910-00-345-6858
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-345-6858
Related Products | NSN 5910-00-345-6858
Technical Data | NSN 5910-00-345-6858
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 0.3 TO 1.2 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 500.0 DC DIELECTRIC WITHSTANDING SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | 50.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |
| TUNING CHARACTERISTIC | STRAIGHT LINE CAPACITY SINGLE SECTION |

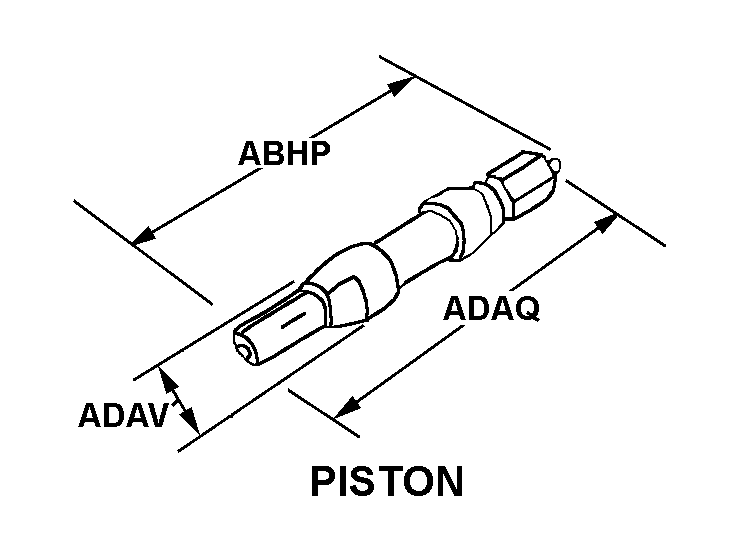

| BODY STYLE | 15 PISTON |
| OVERALL LENGTH | 0.210 INCHES NOMINAL |
| BODY LENGTH | 0.170 INCHES NOMINAL |
| OVERALL DIAMETER | 0.075 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE ROTATION | 800.0 TURNS NOMINAL COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 1 FLANGE |
| TERMINAL DIAMETER | 0.190 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.005 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 100000.0 MEGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 4000.0 |
| III MATERIAL | METAL BASE |
