Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-472-5023 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 01210033, 0121-0033, 10110525008920, 10-1105-25008-920, 1890503029, 189-0503-029, 1895031, 189-503-1 , 327-121-033, 5910-00-472-5023, 00-472-5023, 5910004725023, 004725023, 327121033
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUN 1971 | 00-472-5023 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-472-5023
Cross Reference | NSN 5910-00-472-5023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0121-0033 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 0121-0033 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 10-1105-25008-920 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 10-1105-25008-920 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 189-0503-029 | 71313 | VIKING TECHNOLOGIES, LTD. |
| 189-503-1 | 71313 | VIKING TECHNOLOGIES, LTD. |
| 327-121-033 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-472-5023
Related Products | NSN 5910-00-472-5023
Technical Data | NSN 5910-00-472-5023
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 1.8 TO 8.8 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 350.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | 45.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -15.0 TO 15.0 SINGLE SECTION |
| TUNING CHARACTERISTIC | STRAIGHT LINE CAPACITY SINGLE SECTION |

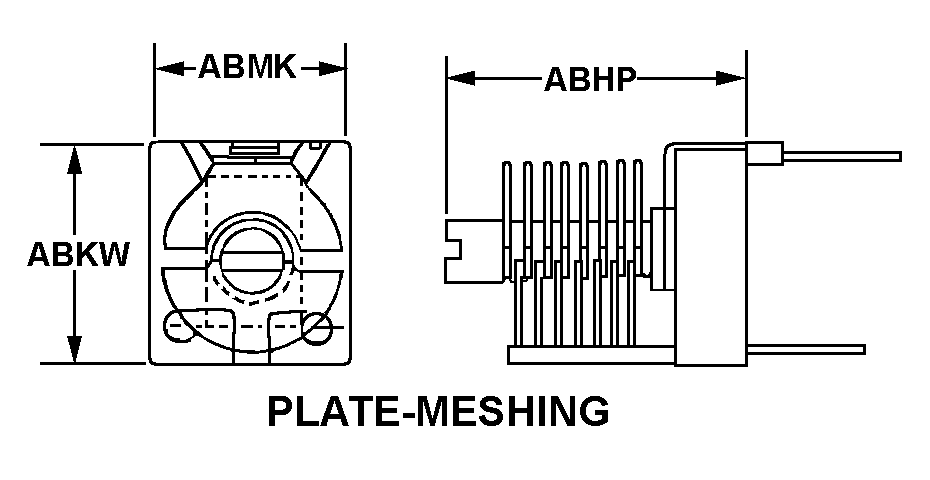

| BODY STYLE | 35 PLATE-MESHING |
