NSN 5910-00-568-3353 CMV140000105, CMV1-4000-0105, 9190282010
Product Details | GAS DIELECTRIC VARIABLE CAPACITOR
5910-00-568-3353 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. Its dielectric may be either gas or vacuum.
Part Alternates: CMV140000105, CMV1-4000-0105, 9190282010, 919-0282-010, 5910-00-568-3353, 00-568-3353, 5910005683353, 005683353
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 NOV 1974 | 00-568-3353 | 30689 ( CAPACITOR, VARIABLE, GAS DIELECTRIC ) |

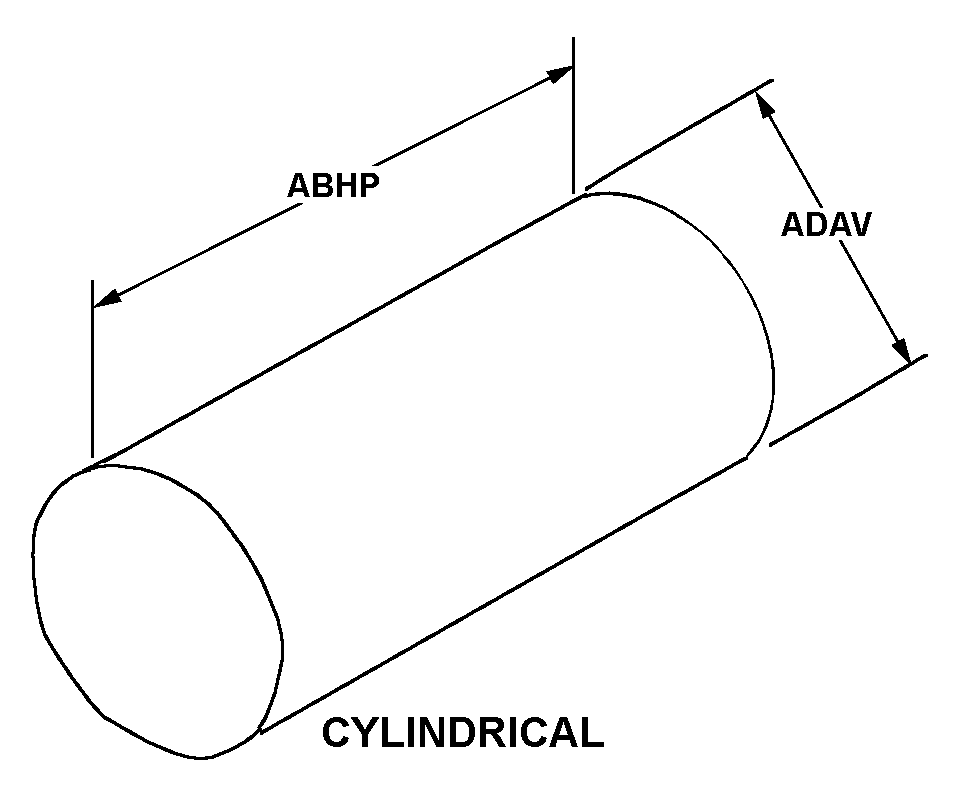

Drawings & Photos | NSN 5910-00-568-3353
Demand History | NSN 5910-00-568-3353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CMV140000105 | 2022-12-349 | 2 | United States |
| CMV140000105 | 2007-12-353 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-568-3353
Related Products | NSN 5910-00-568-3353
Technical Data | NSN 5910-00-568-3353
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 25.0 TO 4000.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 5000.0 AC PEAK SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| ALTERNATING CURRENT RATING IN AMPS | 30.0 |
| BODY STYLE | 63 CYLINDRICAL |
| OVERALL LENGTH | 6.510 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.380 INCHES MAXIMUM |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 HEX NUT |
| ADJUSTMENT DEVICE TORQUE | 30.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 1 FLANGE |
| TERMINAL DIAMETER | 3.000 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.150 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| BUSHING SHAPE | ROUND |
| BUSHING DIAMETER | 0.625 INCHES NOMINAL |
| BUSHING LENGTH | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| III DISSIPATION FACTOR AT 25 DEG CELSIUS IN PERCENT | 0.001 |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 1000.0 |
