NSN 5910-00-677-1354 UCSL15003N103, UCSL1500-3N103, 788C415H01
Product Details | GAS DIELECTRIC VARIABLE CAPACITOR
5910-00-677-1354 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. Its dielectric may be either gas or vacuum.
Part Alternates: UCSL15003N103, UCSL1500-3N103, 788C415H01, 333C647H01, 341C791G01, 5910-00-677-1354, 00-677-1354, 5910006771354, 006771354
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-677-1354 | 30689 ( CAPACITOR, VARIABLE, GAS DIELECTRIC ) |

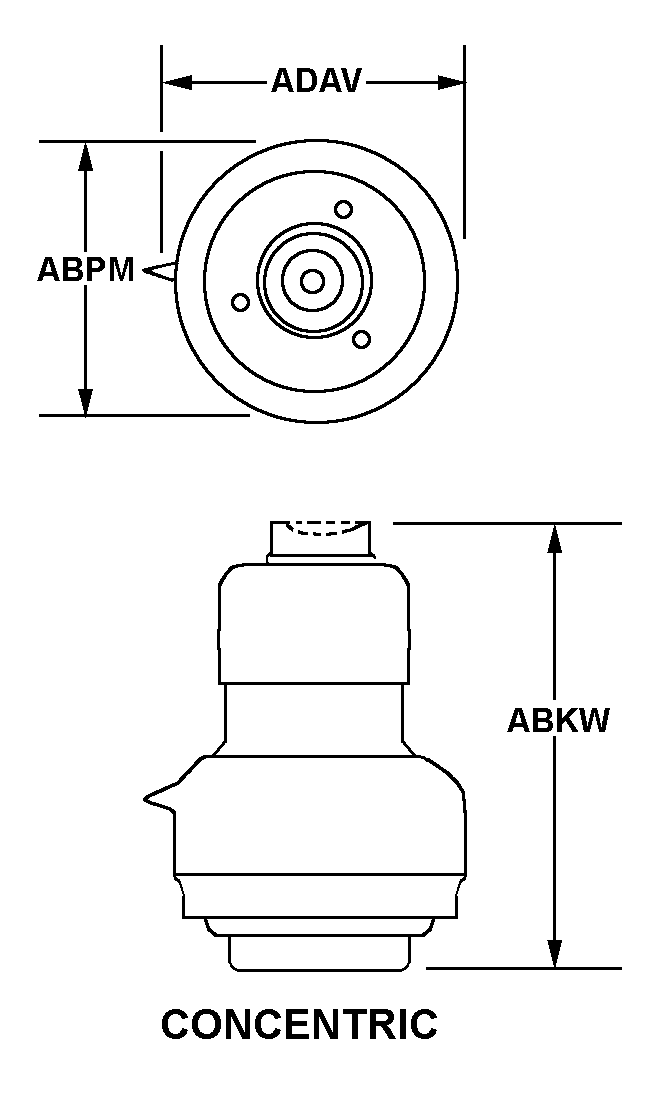

Drawings & Photos | NSN 5910-00-677-1354
Cross Reference | NSN 5910-00-677-1354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 333C647H01 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 333C647H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 341C791G01 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 341C791G01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 788C415H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| UCSL1500-3N103 | 73905 | JENNINGS TECHNOLOGY COMPANY LLC DBA JENNINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-677-1354
Technical Data | NSN 5910-00-677-1354
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 20.0 TO 1500.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 3000.0 AC PEAK SINGLE SECTION |
| ALTERNATING CURRENT RATING IN AMPS | 42.0 |
| BODY STYLE | 56 CONCENTRIC |
| OVERALL HEIGHT | 5.656 INCHES NOMINAL |
| BODY DIAMETER | 3.125 INCHES NOMINAL |
| OVERALL DIAMETER | ANY ACCEPTABLE |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE ROTATION | 21.0 TURNS NOMINAL COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 1 FLANGE AND 1 FERRULE |
