NSN 5910-00-753-9639 A3164, A-3164, B7539639
Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-753-9639 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: A3164, A-3164, B7539639, 7539639, 158G7, 1916595, 5910-00-753-9639, 00-753-9639, 5910007539639 , 007539639
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-753-9639 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-753-9639
Cross Reference | NSN 5910-00-753-9639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 158G7 | 56442 | DIAMOND REO TRUCK CO |
| 1916595 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1916595 | 1LW55 | REMY, INC. |
| 1916595 | 24617 | GENERAL MOTORS CORP |
| 1916595 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 5910007539639 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7539639 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| A-3164 | 25579 | ARGENT INDUSTRIES INC. |
| B7539639 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-753-9639
Technical Data | NSN 5910-00-753-9639
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 90000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.00 TO 60000.00 PICOFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 28B W/MTG BRACKET, AXIAL TERMINALS |
| BODY DIAMETER | 0.656 INCHES NOMINAL |
| BODY LENGTH | 1.188 INCHES NOMINAL |

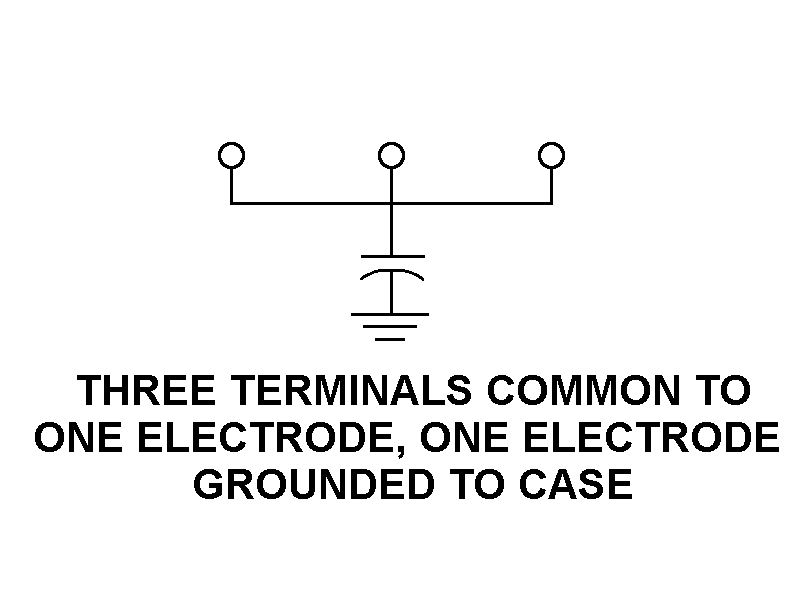

| SCHEMATIC DIAGRAM DESIGNATOR | 19C THREE TERMINALS COMMON TO ONE ELECTRODE, ONE ELECTRODE GROUNDED TO CASE |
| CONTINUOUS CURRENT RATING IN AMPS | 25.0 |
| TERMINAL TYPE AND QUANTITY | 1 INSULATED WIRE LEAD AND 1 INSULATED WIRE LEAD W/TERMINAL LUG |
| TERMINAL LENGTH | 2.875 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.147 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.875 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 6000.0 MEGOHMS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 1.496 INCHES NOMINAL |
