NSN 5910-00-760-5075 AR29410103, AR294-10-103, 294100F103G01
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-760-5075 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: AR29410103, AR294-10-103, 294100F103G01, 390MF103X2103S2, 5910-00-760-5075, 00-760-5075, 5910007605075, 007605075
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 OCT 1969 | 00-760-5075 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-760-5075
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-760-5075
Technical Data | NSN 5910-00-760-5075
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -2.00 TO 2.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 10000.0 AC-PEAK SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | 0.0 TO 70.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

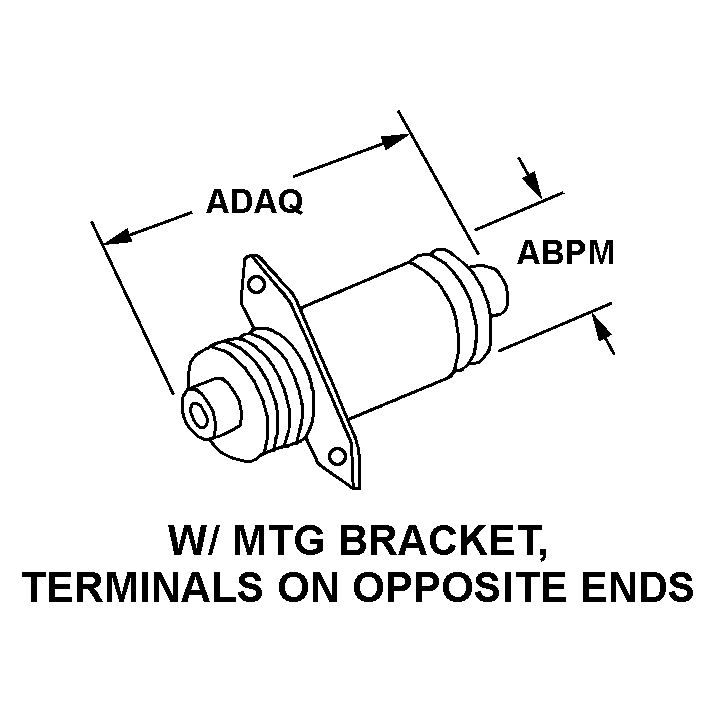

| BODY STYLE | 52B W/MTG BRACKET, TERMINALS ON OPPOSITE ENDS |
| BODY DIAMETER | 3.500 INCHES NOMINAL |
| BODY LENGTH | 5.000 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 THREADED HOLE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.382 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 5.750 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 7500.0 MEGOHMS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM RF CURRENT RATING AT HIGHEST RATED FREQUENCY IN RMS AMPS | 30.0 |
| III HIGHEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 3000.0 |
| III MAXIMUM RF CURRENT RATING AT LOWEST RATED FREQUENCY IN RMS AMPS | 18.0 |
| III LOWEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 100.0 |
