Product Details | GLASS DIELECTRIC VARIABLE CAPACITOR
5910-00-957-0582 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: GSG113A, V2017, 682275, 9223031020, 922-3031-020, 562065, 562-065, 5910-00-957-0582, 00-957-0582, 5910009570582, 009570582
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAY 1966 | 00-957-0582 | 00532 ( CAPACITOR, VARIABLE, GLASS DIELECTRIC ) |

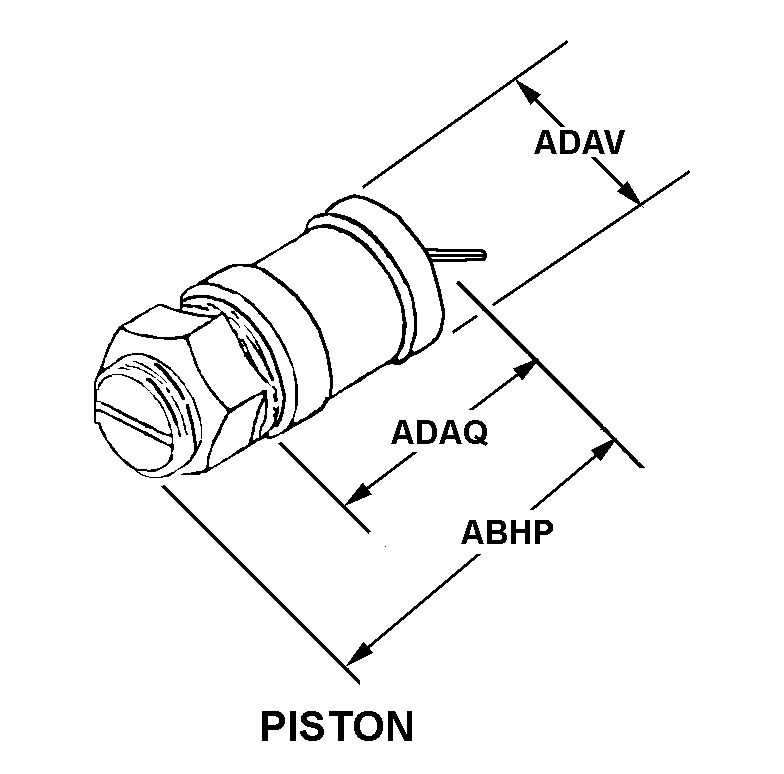

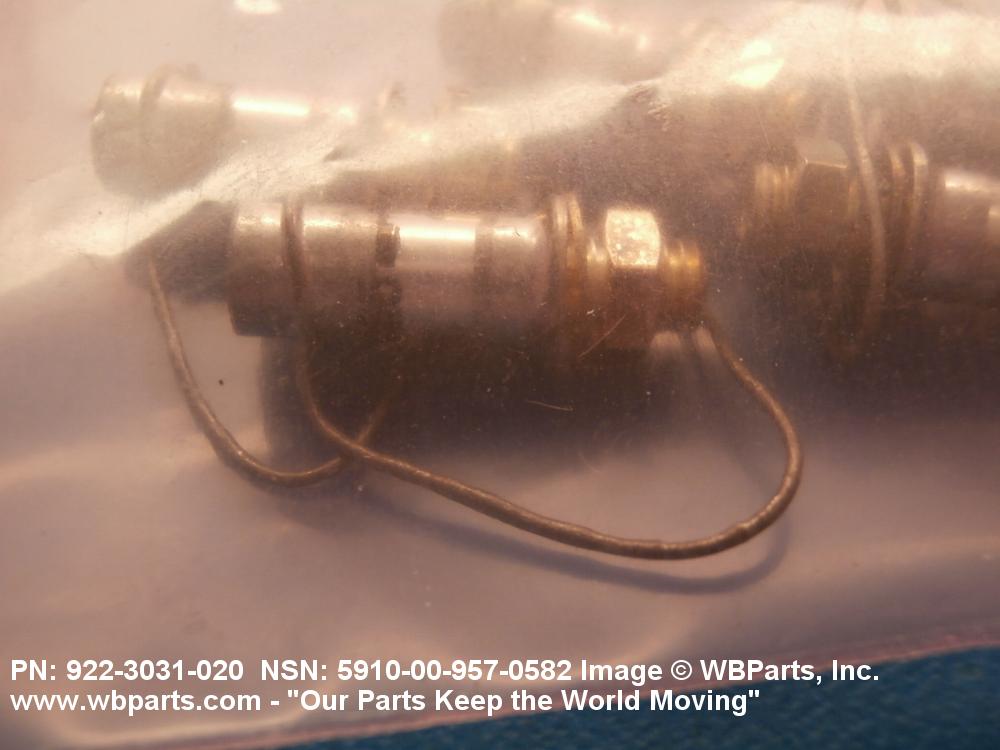

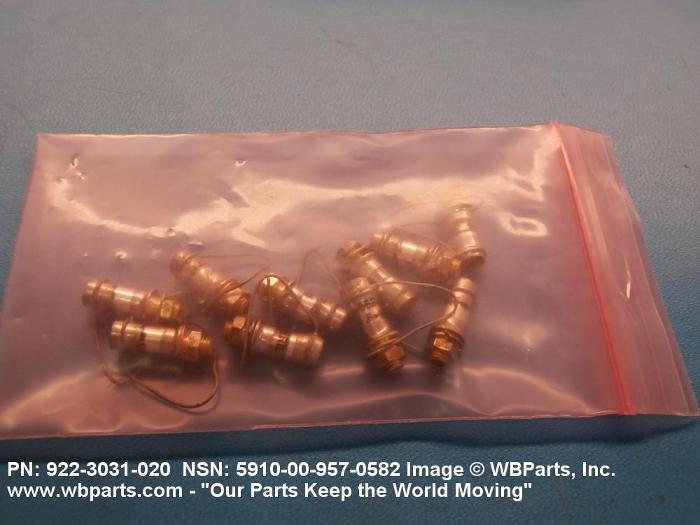

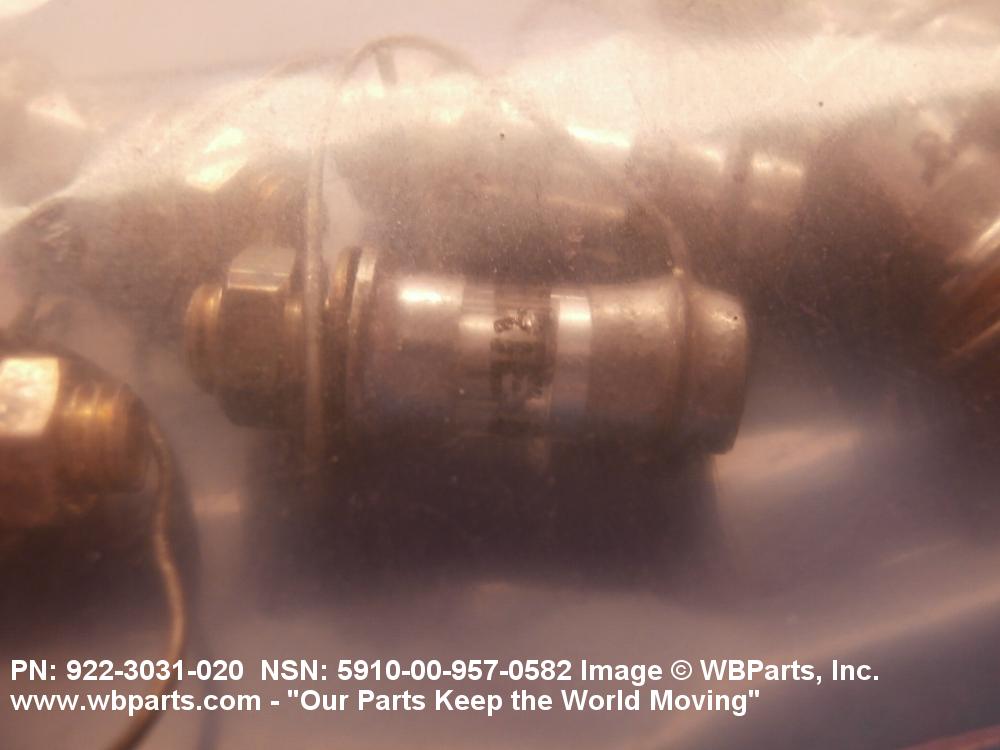

Drawings & Photos | NSN 5910-00-957-0582
Demand History | NSN 5910-00-957-0582
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-00-957-0582 | 2012-09-270 | 10 | Taiwan |
| 5910-00-957-0582 | 2012-09-263 | 50 | Taiwan |
Cross Reference | NSN 5910-00-957-0582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 562-065 | 52769 | SPRAGUE-GOODMAN ELECTRONICS, INC. |
| 562-065 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 682275 | 19644 | L R C ELECTRONICS INC |
| 922-3031-020 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| GSG113A | 52769 | SPRAGUE-GOODMAN ELECTRONICS, INC. |
| V2017 | 18736 | VOLTRONICS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-957-0582
Related Products | NSN 5910-00-957-0582
Technical Data | NSN 5910-00-957-0582
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 0.8 TO 8.5 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 750.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | 0.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |
| BODY STYLE | 21 PISTON |
| OVERALL LENGTH | 0.813 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| BODY LENGTH | 0.532 INCHES MINIMUM AND 0.594 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.313 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE TORQUE | 1.000 INCH-OUNCES MINIMUM AND 10.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| BUSHING SHAPE | ROUND W/FLAT |
| BUSHING DIAMETER | 0.191 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| BUSHING LENGTH | 0.281 INCHES NOMINAL |
| BUSHING WIDTH | 0.171 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| III CAPACITANCE DRIFT IN PICOFARADS | 0.04 SINGLE SECTION |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 1000000.0 MEGOHMS |
| III INSULATION DC RESISTANCE AT MAX OPERATING TEMP | 100000.0 MEGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 500.0 |
| III MATERIAL | GLASS INCLOSURE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
