NSN 5910-00-958-0017 EP33312, 334506, 00-958-0017
Product Details | PAPER-PLASTIC DIELECTRI METALLIZED FIXED CAPACITOR
5910-00-958-0017 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Part Alternates: EP33312, 334506, 5910-00-958-0017, 00-958-0017, 5910009580017, 009580017
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-958-0017 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-958-0017
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-958-0017
Technical Data | NSN 5910-00-958-0017
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 3 |
| CAPACITANCE VALUE PER SECTION | 1.000 MICROFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 1000.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 100.0 DEG CELSIUS MAXIMUM |

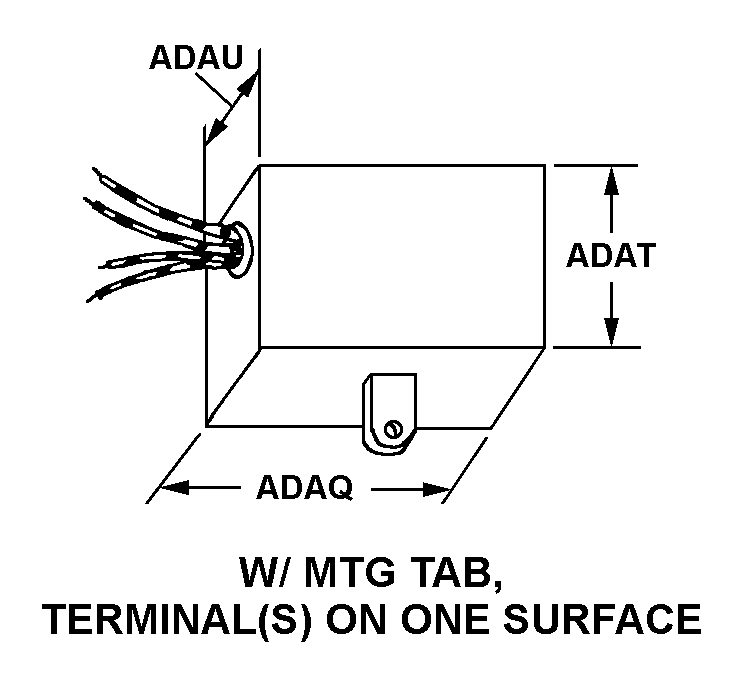

| BODY STYLE | 26A W/MTG TAB, TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 3.000 INCHES MAXIMUM |
| BODY WIDTH | 1.312 INCHES MAXIMUM |
| BODY HEIGHT | 2.125 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 7C ONE TERMINAL COMMON TO EACH SECTION |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.812 INCHES NOMINAL |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.2000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 3.000 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 2.125 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 1.312 INCHES NOMINAL |
