NSN 5910-00-958-5028 SC591000081, SC5910-0008-1, DV11P11B
Product Details | CERAMIC DIELECTRIC VARIABLE CAPACITOR
5910-00-958-5028 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: SC591000081, SC5910-0008-1, DV11P11B, 552192-303, 577R469H06, 2444, 53800290B, 538-002-90B, 538-002B2.5-11, 538002B2511, 538002B2-5-11, 538002B2R511PF, 538-002B2R5-11PF, 53800332511, 538-00332-5-11, 538-003B2.5-11, 538003B2511, 538-003B2-5-11, 538003B2P090R, 538-003B2P090R, 538-003B2P0-90R, 538003B2PD90R, 538-003B2PD90R, 538003N3002R511MMF, 538-003N300-2R5-11MMF, 5910-00-958-5028, 00-958-5028, 5910009585028, 009585028, 552192303
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-958-5028 | 00721 ( CAPACITOR, VARIABLE, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-958-5028
Cross Reference | NSN 5910-00-958-5028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2444 | 50423 | BALLANTINE LABORATORIES INC |
| 538-002-90B | 20827 | ERIE ELECTRIC CO INC |
| 538-002B2.5-11 | 59660 | TUSONIX, INC. |
| 538-002B2R5-11PF | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538-00332-5-11 | 59660 | TUSONIX, INC. |
| 538-00332-5-11 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538-003B2-5-11 | 59660 | TUSONIX, INC. |
| 538-003B2-5-11 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538-003B2.5-11 | 59660 | TUSONIX, INC. |
| 538-003B2P0-90R | 59660 | TUSONIX, INC. |
| 538-003B2P0-90R | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538-003B2P090R | 91674 | ERIE ELECTRIC MFG CORP |
| 538-003B2PD90R | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538-003N300-2R5-11MMF | 59660 | TUSONIX, INC. |
| 538-003N300-2R5-11MMF | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 538002B2-5-11 | 59660 | TUSONIX, INC. |
| 538002B2-5-11 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 552192-303 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 577R469H06 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| DV11P11B | 72982 | ERIE SPECIALTY PRODUCTS INC |
| SC5910-0008-1 | 12115 | DRS ICAS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-958-5028
Related Products | NSN 5910-00-958-5028
Technical Data | NSN 5910-00-958-5028
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 2.5 TO 11.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 200.0 DC CONTINUOUS SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | 300.0 SINGLE SECTION |

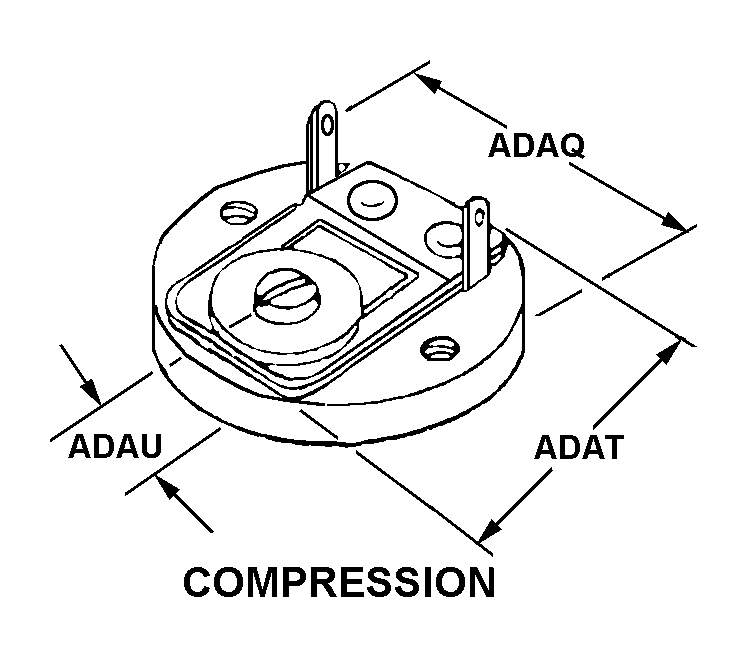

| BODY STYLE | 10 COMPRESSION |
| BODY LENGTH | 0.375 INCHES NOMINAL |
| BODY WIDTH | 0.375 INCHES NOMINAL |
| BODY HEIGHT | 0.275 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5910-00-958-5028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-958-5028
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
