NSN 5910-01-010-1054 C711281, C-71128-1, ESC484A1
Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-01-010-1054 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: C711281, C-71128-1, ESC484A1, ESC-484A1, ESC484A1A, 7710250, 7710250A, 7B423114A, 7B423-114A, 5910-01-010-1054, 01-010-1054, 5910010101054, 010101054
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 SEP 1975 | 01-010-1054 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |

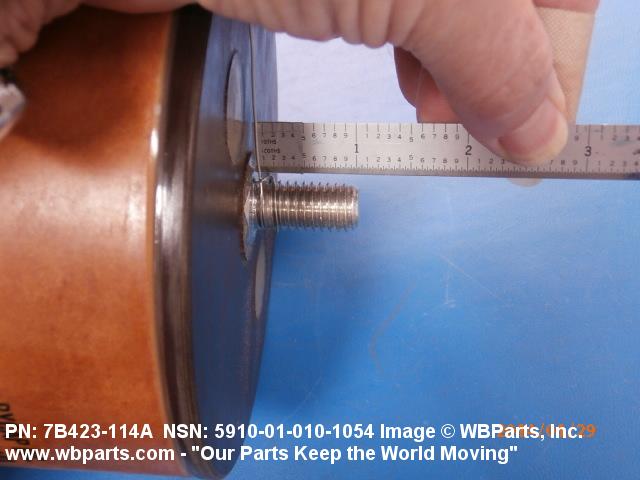

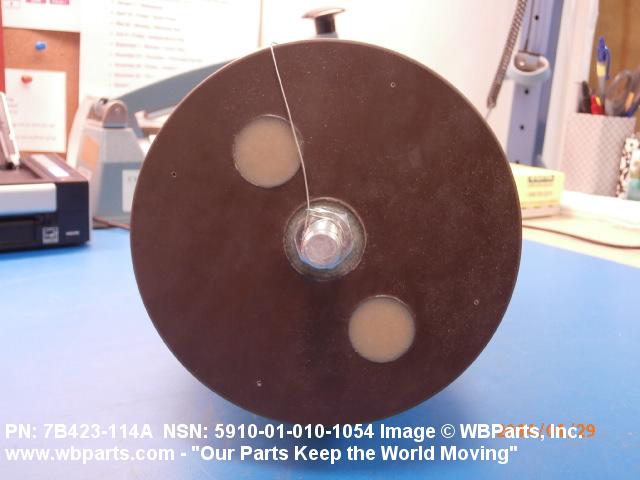

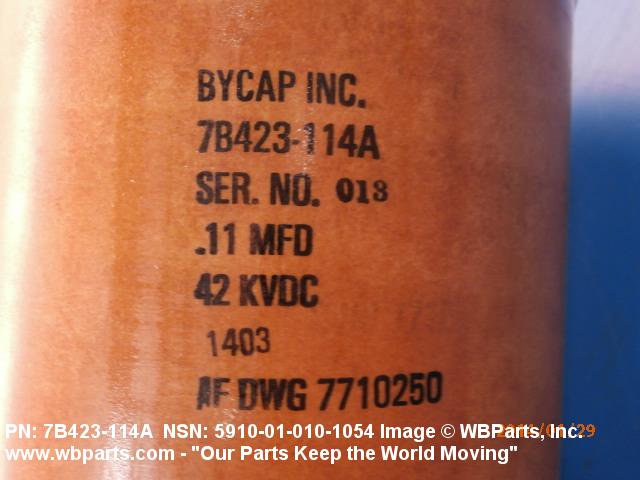

Drawings & Photos | NSN 5910-01-010-1054
Demand History | NSN 5910-01-010-1054
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7B423-114A | 2022-04-104 | 3 | DIBBS |
| ESC484A1A | 2022-04-104 | 3 | DIBBS |
| 7B423-114A | 2022-02-46 | 1 | DIBBS |
| ESC484A1A | 2022-02-46 | 1 | DIBBS |
| 7B423-114A | 2021-12-355 | 1 | DIBBS |
| ESC484A1A | 2021-12-355 | 1 | DIBBS |
| 5910-01-010-1054 | 2018-09-263 | 1 | DIBBS |
| 5910-01-010-1054 | 2018-08-227 | 1 | DIBBS |
| 5910-01-010-1054 | 2014-11-316 | 1 | DIBBS |
| 5910-01-010-1054 | 2013-11-315 | 1 | DIBBS |
| 5910-01-010-1054 | 2013-10-287 | 1 | United Kingdom |
| 5910-01-010-1054 | 2013-10-283 | 1 | United Kingdom |
| 5910-01-010-1054 | 2011-03-83 | 2 | DIBBS |
| 5910-01-010-1054 | 2007-10-277 | 1 | DIBBS |
| 5910-01-010-1054 | 2007-10-274 | 1 | DIBBS |
Cross Reference | NSN 5910-01-010-1054
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-010-1054
Related Products | NSN 5910-01-010-1054
Technical Data | NSN 5910-01-010-1054
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.110 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -15.00 TO 15.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 42000.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG FAHRENHEIT MINIMUM AND 175.0 DEG FAHRENHEIT MAXIMUM |

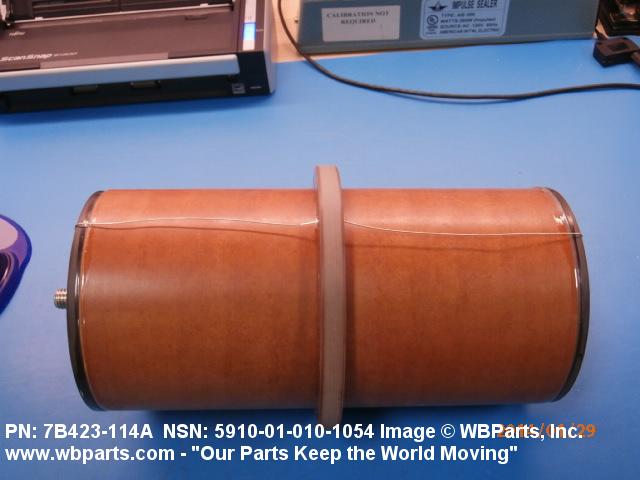

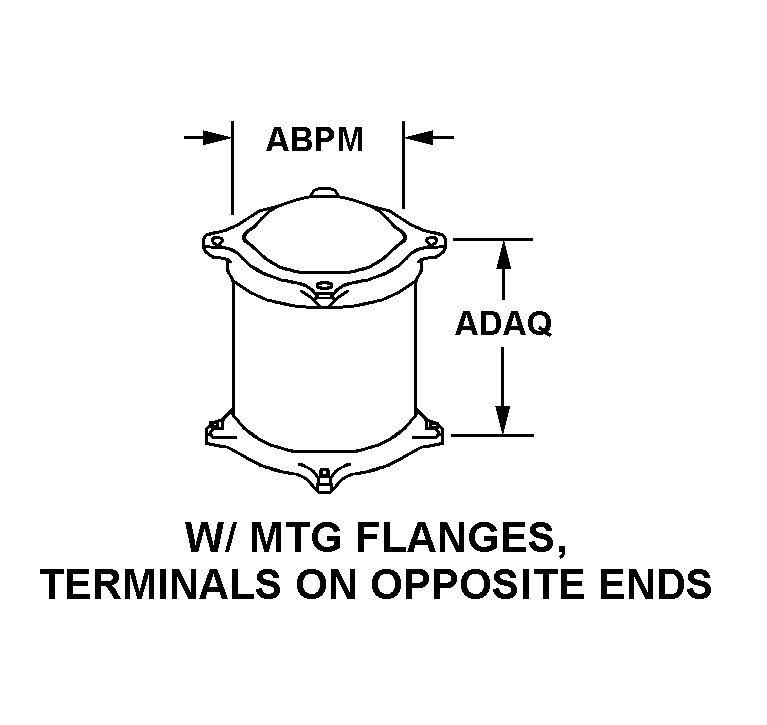

| BODY STYLE | 50B W/MTG FLANGES, TERMINALS ON OPPOSITE ENDS |

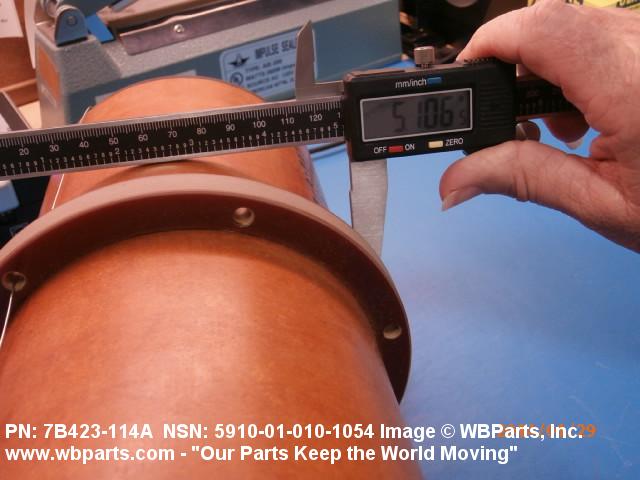

| BODY DIAMETER | 5.125 INCHES NOMINAL |

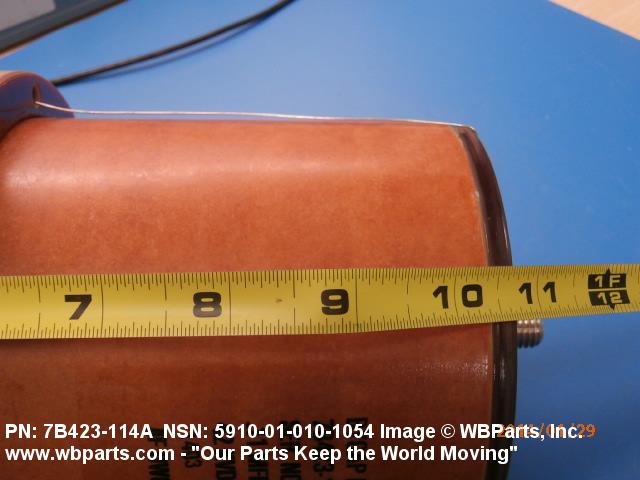

| BODY LENGTH | 10.500 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |

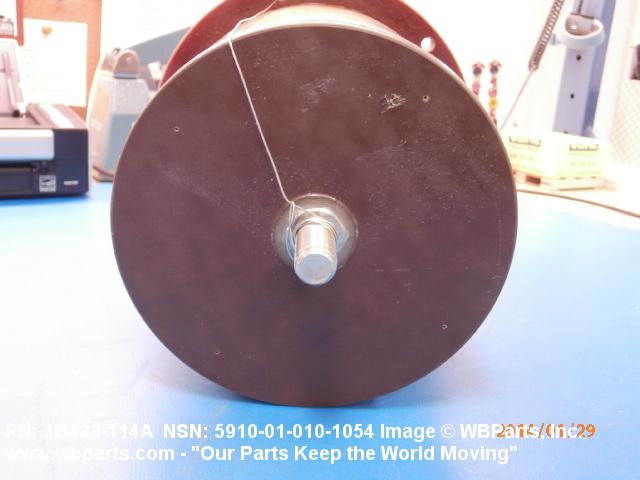

| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| TERMINAL LENGTH | 1.250 INCHES NOMINAL |

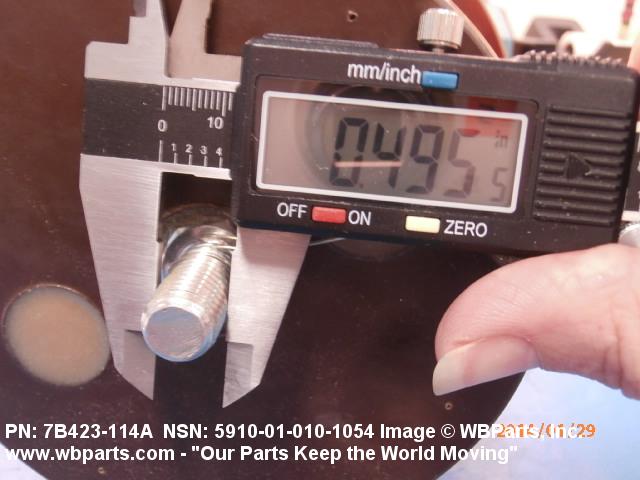

| TERMINAL DIAMETER | 0.500 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED MOUNTING HOLES |

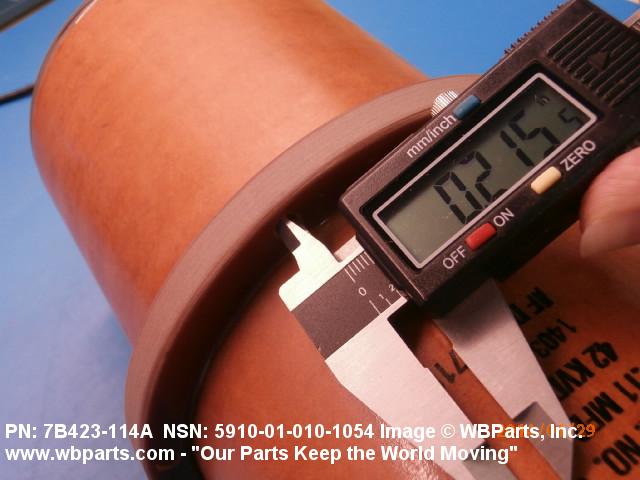

| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |

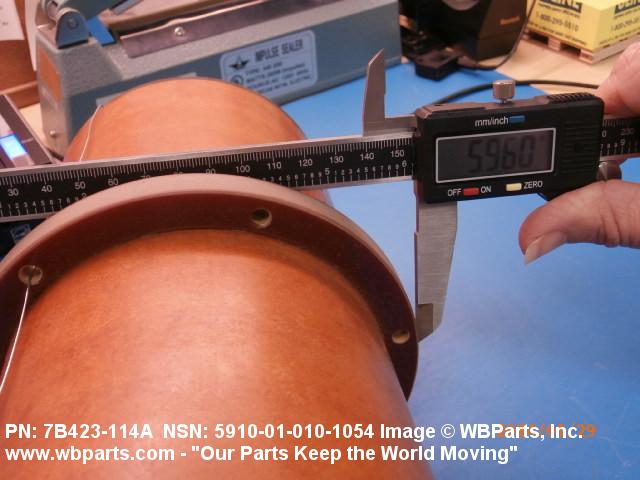

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 5.625 INCHES NOMINAL |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.500 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | MOUNTING FLANGE WILL BE CENTRALLY LOCATED ON HOUSING |
| (NON-CORE DATA) OVERALL LENGTH | 12.500 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 6.125 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 6.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-01-010-1054
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-010-1054
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
