NSN 5910-01-111-9431 204-53390-6, 01-111-9431, 204533906
Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-01-111-9431 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: 204-53390-6, 5910-01-111-9431, 01-111-9431, 5910011119431, 204533906, 011119431
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1981 | 01-111-9431 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |

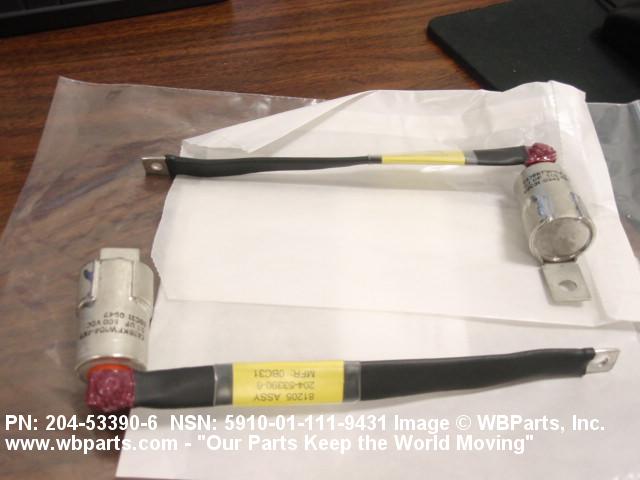

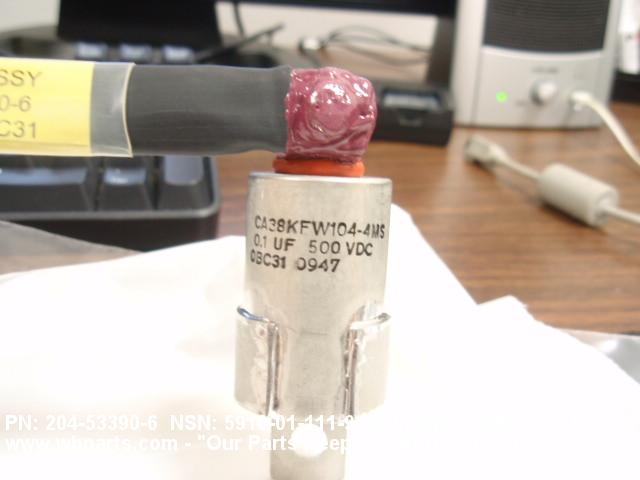

Drawings & Photos | NSN 5910-01-111-9431
Demand History | NSN 5910-01-111-9431
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204-53390-6 | 2025-03-70 | 5 | DIBBS |
| 204-53390-6 | 2024-07-183 | 20 | DIBBS |
| 204-53390-6 | 2023-08-230 | 2 | DIBBS |
| 204-53390-6 | 2023-08-229 | 3 | DIBBS |
| 204-53390-6 | 2023-08-219 | 2 | DIBBS |
| 204-53390-6 | 2023-08-219 | 2 | DIBBS |
| 5910-01-111-9431 | 2019-12-346 | 1 | SA |
| 5910-01-111-9431 | 2019-12-346 | 1 | SA |
| 5910-01-111-9431 | 2014-05-127 | 15 | DIBBS |
| 5910-01-111-9431 | 2013-09-268 | 2 | DIBBS |
| 5910-01-111-9431 | 2013-04-93 | 2 | DIBBS |
| 5910-01-111-9431 | 2012-11-312 | 8 | DIBBS |
| 5910-01-111-9431 | 2012-08-234 | 5 | DIBBS |
| 5910-01-111-9431 | 2012-07-213 | 2 | DIBBS |
| 5910-01-111-9431 | 2012-03-68 | 3 | DIBBS |
| 204533906 | 2010-07-207 | 2 | United States |
Cross Reference | NSN 5910-01-111-9431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-53390-6 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-111-9431
Related Products | NSN 5910-01-111-9431
Technical Data | NSN 5910-01-111-9431
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 50.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 5B W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.688 INCHES NOMINAL |
| BODY LENGTH | 1.094 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.625 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 4500.0 MEGOHMS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |

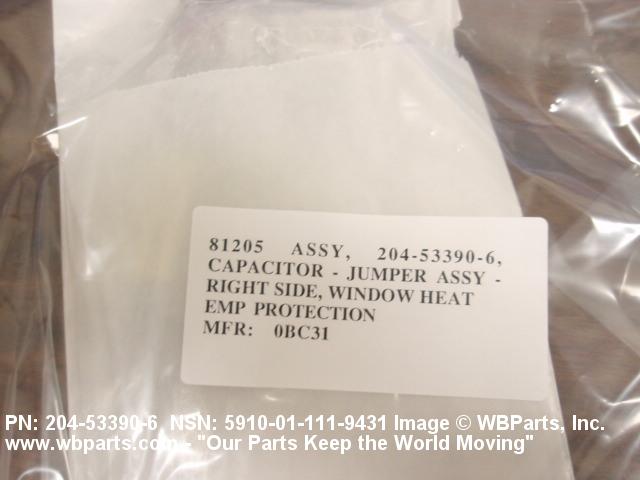

| SPECIAL FEATURES | CAPACITOR JUMPER ASSY RIGHT SIDE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 2.594 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.782 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.782 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-01-111-9431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-111-9431
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
