NSN 5910-01-128-3551 SC19900101U, SC19900-101U, SCI9900101AS
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-128-3551 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: SC19900101U, SC19900-101U, SCI9900101AS, SCI9900-101AS, CSK20746, ZS1C2101HA, ZS1C2-101HA, D900, 76181011008, 7618-1011-008, 9133305030, 913-3305-030, 5910-01-128-3551, 01-128-3551, 5910011283551, 011283551
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 1982 | 01-128-3551 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |

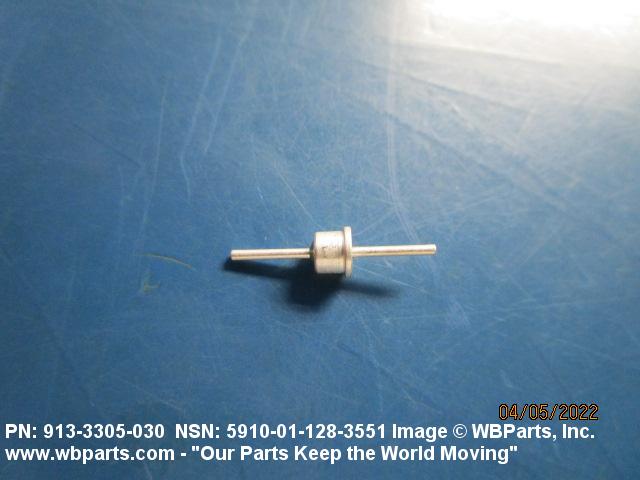

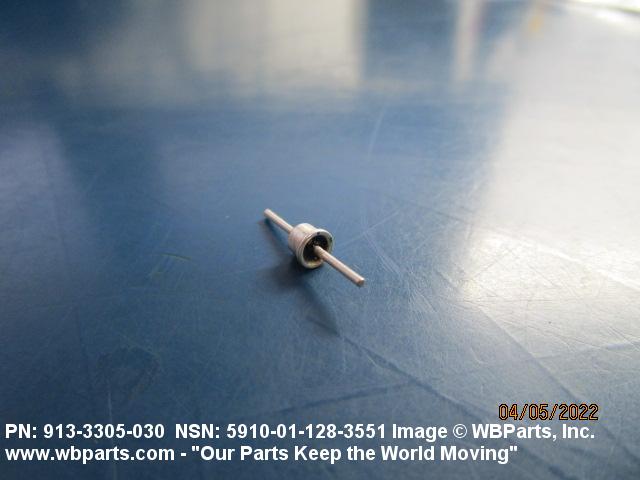

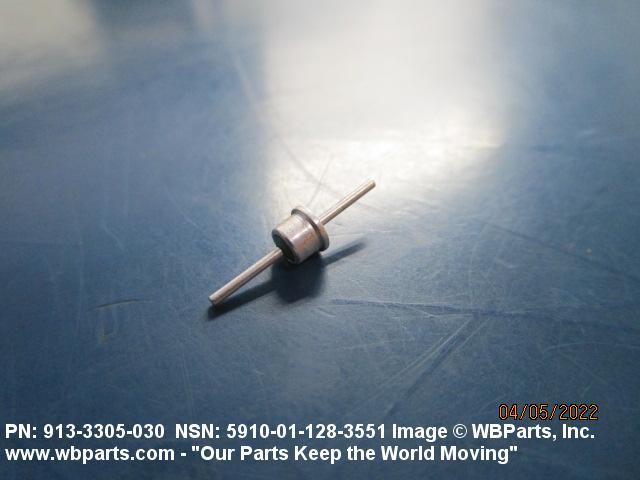

Drawings & Photos | NSN 5910-01-128-3551
Demand History | NSN 5910-01-128-3551
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7618-1011-008 | 2023-11-331 | 210 | DIBBS |
| 913-3305-030 | 2023-11-331 | 210 | DIBBS |
| D900 | 2023-11-331 | 210 | DIBBS |
| SCI9900-101AS | 2023-11-331 | 210 | DIBBS |
| ZS1C2-101HA | 2023-11-331 | 210 | DIBBS |
| 7618-1011-008 | 2023-11-320 | 210 | DIBBS |
| 913-3305-030 | 2023-11-320 | 210 | DIBBS |
| D900 | 2023-11-320 | 210 | DIBBS |
| SCI9900-101AS | 2023-11-320 | 210 | DIBBS |
| ZS1C2-101HA | 2023-11-320 | 210 | DIBBS |
| 7618-1011-008 | 2022-03-79 | 168 | DIBBS |
| 913-3305-030 | 2022-03-79 | 168 | DIBBS |
| D900 | 2022-03-79 | 168 | DIBBS |
| SCI9900-101AS | 2022-03-79 | 168 | DIBBS |
| ZS1C2-101HA | 2022-03-79 | 168 | DIBBS |
| 5910-01-128-3551 | 2022-02-54 | 44 | United States |
| 5910-01-128-3551 | 2022-02-47 | 44 | United States |
| 7618-1011-008 | 2022-02-35 | 44 | DIBBS |
| 913-3305-030 | 2022-02-35 | 44 | DIBBS |
| D900 | 2022-02-35 | 44 | DIBBS |
| SCI9900-101AS | 2022-02-35 | 44 | DIBBS |
| ZS1C2-101HA | 2022-02-35 | 44 | DIBBS |
| 7618-1011-008 | 2022-01-25 | 44 | DIBBS |
| 913-3305-030 | 2022-01-25 | 44 | DIBBS |
| D900 | 2022-01-25 | 44 | DIBBS |
| SCI9900-101AS | 2022-01-25 | 44 | DIBBS |
| ZS1C2-101HA | 2022-01-25 | 44 | DIBBS |
Cross Reference | NSN 5910-01-128-3551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7618-1011-008 | 51959 | KYOCERA INTL INC ELECTRONIC COMPONENTS DIV |
| 913-3305-030 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| CSK20746 | 18796 | MURATA ERIE NORTH AMERICA INC STATE COLLEGE OPNS |
| D900 | 51642 | CENTRE CAPACITOR INC |
| SC19900-101U | 33095 | SPECTRUM CONTROL, INC. DBA API TECHNOLOGIES |
| SCI9900-101AS | 0LSP2 | SPECTRUM CONTROL, INC. DBA ELECTROMAGNETIC DIVISION |
| SCI9900-101AS | 33095 | SPECTRUM CONTROL, INC. DBA API TECHNOLOGIES |
| ZS1C2-101HA | 59942 | AVX FILTERS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-128-3551
Related Products | NSN 5910-01-128-3551
Technical Data | NSN 5910-01-128-3551
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 100.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 0.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -30.0 TO 30.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |

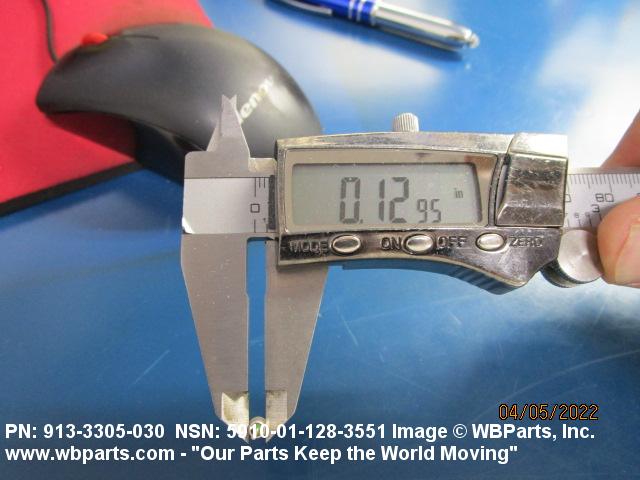

| BODY DIAMETER | 0.130 INCHES NOMINAL |
| BODY LENGTH | 0.110 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 17C FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |

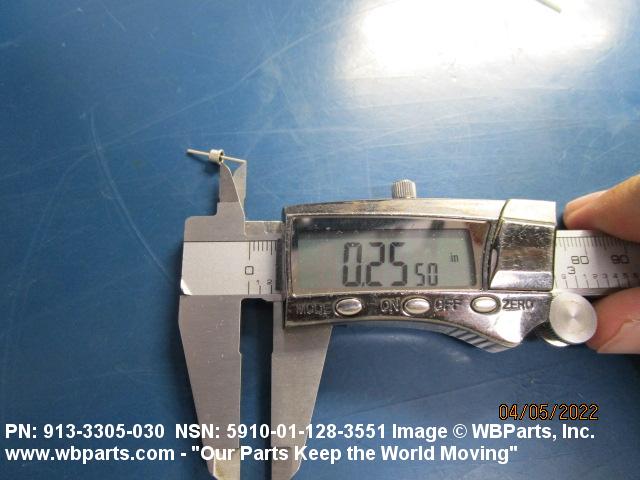

| TERMINAL LENGTH | 0.250 INCHES NOMINAL |

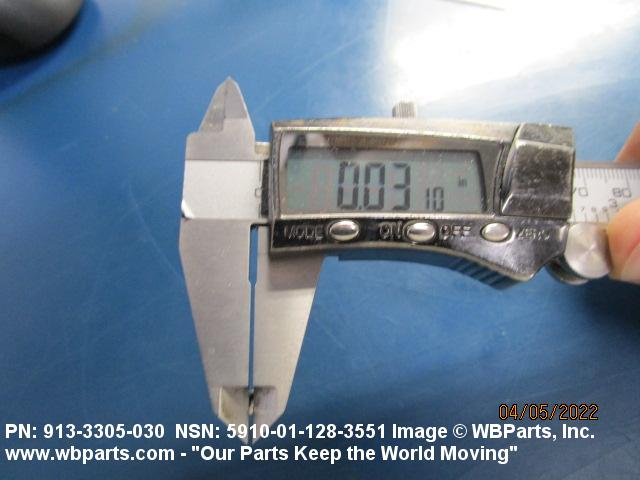

| TERMINAL DIAMETER | 0.030 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 500.0 MEGOHMS |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 3.5000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | LANDING CRAFT AIR CUSHION (LCAC); HELICOPTER, USCG SEARCH AND RESCUE, HH-60J; HELICOPTER, SEARCH AND RESCUE, HH-60H; NIMITZ CLASS CVN; FORRESTAL CLASS CV; HELICOPTER, CARRIER BASED ASW, SH-60F; HELICOPTER, MH-53E; HELICOPTER, ADVANCE ATTACK, AH-1W; WASP CLASS LHD; MILSTAR SYSTEM |
| (NON-CORE DATA) OVERALL LENGTH | 0.110 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.130 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.130 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-01-128-3551
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-128-3551
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
