Product Details | CAPACITOR RETAINER
5910-01-134-9112 An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: CMC41, CMC-41, 7402012P003, 5910-01-134-9112, 01-134-9112, 5910011349112, 011349112
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13-JUL-82 | 01-134-9112 | 19799 ( RETAINER, CAPACITOR ) |
Drawings & Photos | NSN 5910-01-134-9112
Cross Reference | NSN 5910-01-134-9112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8004-902 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 054198 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 094598-0005 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 16755434-007 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 1803149-3 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 1C1782-03ZG1 | 09166 | STONE CITY PRODUCTS INC |
| 4586-1 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| 45886-1 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| 7402012P003 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 885C054198 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| CMC-41 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| CMC40 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| MP-4188 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5910-01-134-9112
5910-01-134-9301, 5910-01-134-9302, 5910-01-135-0379, 5910-01-135-0380, 5910-01-135-0391
Technical Data | NSN 5910-01-134-9112
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | CADMIUM |

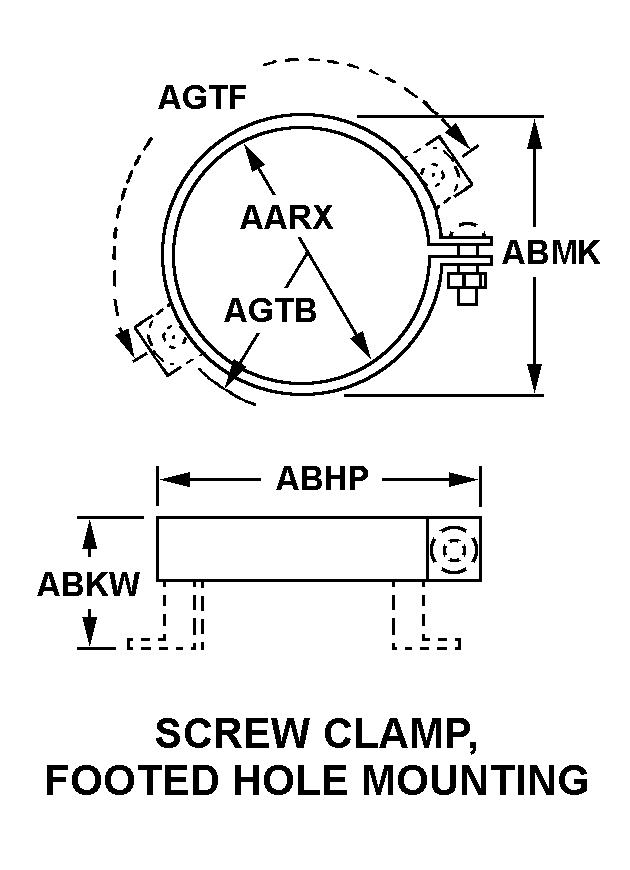

| STYLE DESIGNATOR | 2B SCREW CLAMP, FOOTED HOLE MOUNTING |
| INSIDE DIAMETER | 2.562 INCHES NOMINAL |
| OVERALL LENGTH | 3.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 2.562 INCHES MINIMUM |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.281 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 120.0 |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MANUFACTURERS CODE | 94117 |
| MFR SOURCE CONTROLLING REFERENCE | 7402012P003 |
Restrictions/Controls & Freight Information | NSN 5910-01-134-9112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
