Product Details | CERAMIC DIELECTRIC VARIABLE CAPACITOR
5910-01-135-0968 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: DV2SN20D, TZ03R200FR169, 5910-01-135-0968, 01-135-0968, 5910011350968, 011350968
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUL 1982 | 01-135-0968 | 00721 ( CAPACITOR, VARIABLE, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-135-0968
Demand History | NSN 5910-01-135-0968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TZ03R200FR169 | 2021-03-60 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-135-0968
Related Products | NSN 5910-01-135-0968
Technical Data | NSN 5910-01-135-0968
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 4.2 TO 20.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 100.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | -750.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -300.0 TO 300.0 SINGLE SECTION |

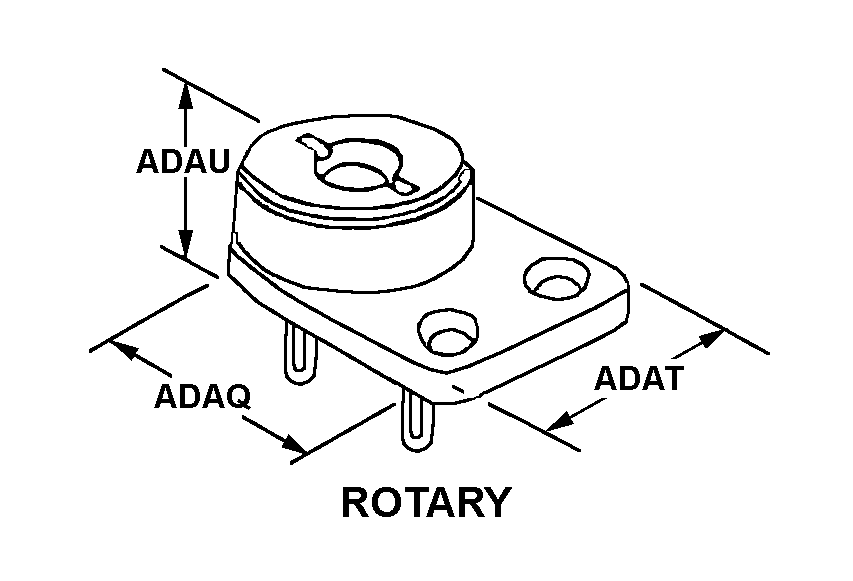

| BODY STYLE | 47 ROTARY |
| BODY LENGTH | 0.236 INCHES NOMINAL |
| BODY WIDTH | 0.236 INCHES NOMINAL |
| BODY HEIGHT | 0.189 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE TORQUE | 0.400 INCH-OUNCES MINIMUM AND 2.800 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 PRINTED CIRCUIT |
| TERMINAL LENGTH | 0.128 INCHES NOMINAL |
| TERMINAL WIDTH | 0.039 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.010 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.197 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 100000.0 MEGOHMS |
