NSN 5910-01-153-8514 KEM2A4715SP, 221M762A, 585R206H02
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-01-153-8514 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: KEM2A4715SP, 221M762A, 585R206H02, 585R206H03, 5910-01-153-8514, 01-153-8514, 5910011538514, 011538514
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAY 1983 | 01-153-8514 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |

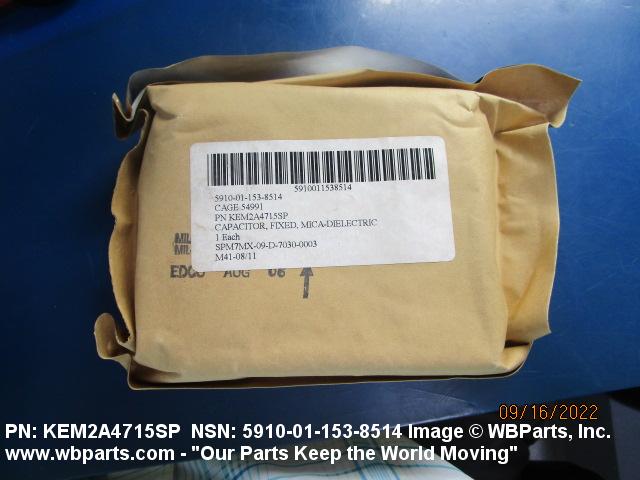

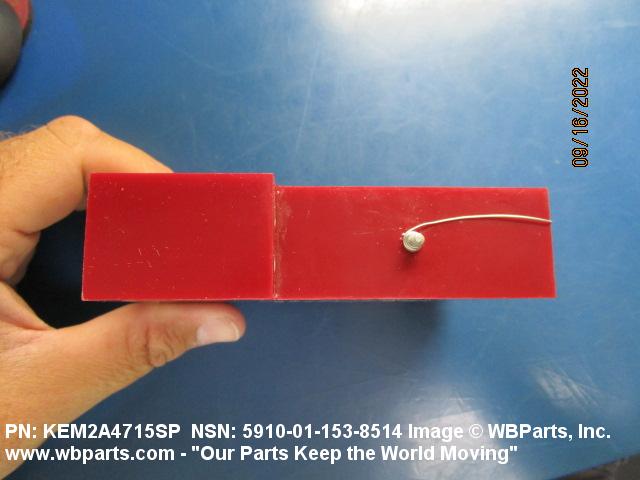

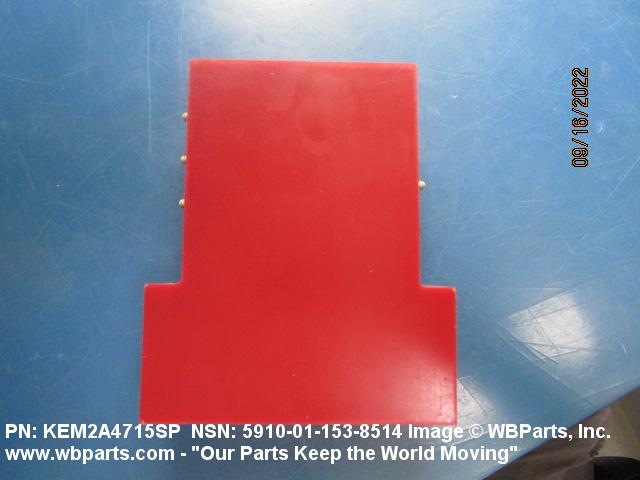

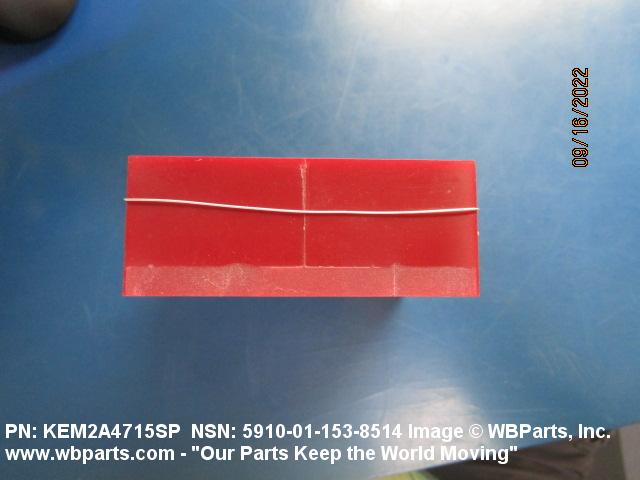

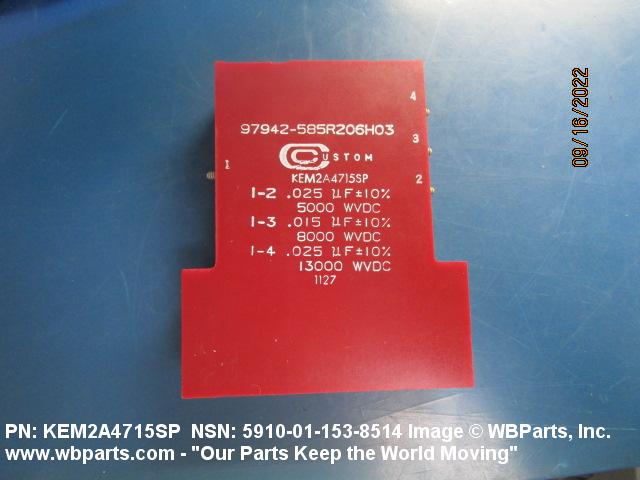

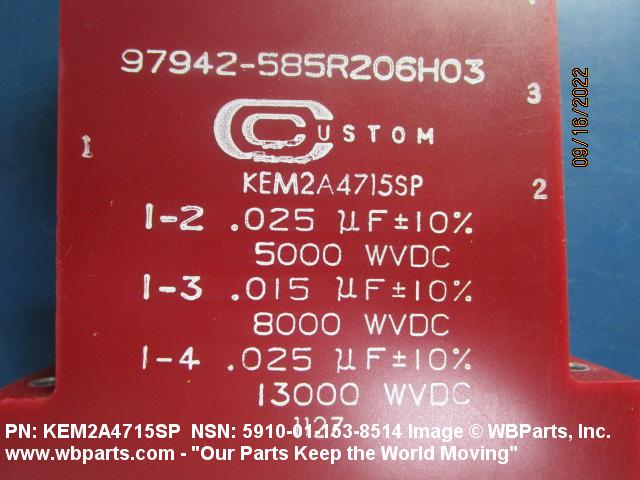

Drawings & Photos | NSN 5910-01-153-8514
Demand History | NSN 5910-01-153-8514
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-153-8514 | 2025-05-148 | 5 | US |
| 585R206H03 | 2022-09-244 | 1 | United States |
| KEM2A4715SP | 2022-09-244 | 1 | United States |
| 5910-01-153-8514 | 2015-04-114 | 4 | DIBBS |
| 5910-01-153-8514 | 2015-04-103 | 4 | DIBBS |
| 5910-01-153-8514 | 2010-03-69 | 5 | DIBBS |
| 5910-01-153-8514 | 2009-05-128 | 8 | DIBBS |
| 5910-01-153-8514 | 2009-04-106 | 6 | DIBBS |
| 5910-01-153-8514 | 2009-03-75 | 5 | DIBBS |
| 5910-01-153-8514 | 2009-02-50 | 3 | DIBBS |
| 5910-01-153-8514 | 2009-02-34 | 4 | DIBBS |
Cross Reference | NSN 5910-01-153-8514
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-153-8514
Related Products | NSN 5910-01-153-8514
Technical Data | NSN 5910-01-153-8514
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 25.000 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 5000.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 4A W/MTG TABS/FLANGES, TERMINAL(S) ON ONE SURFACE |

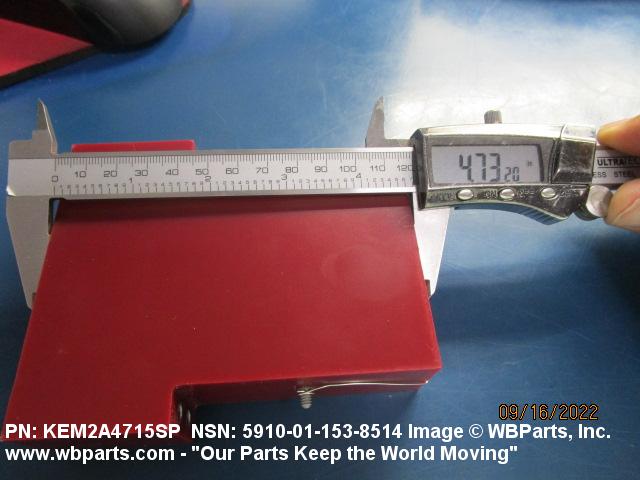

| BODY LENGTH | 4.760 INCHES NOMINAL |

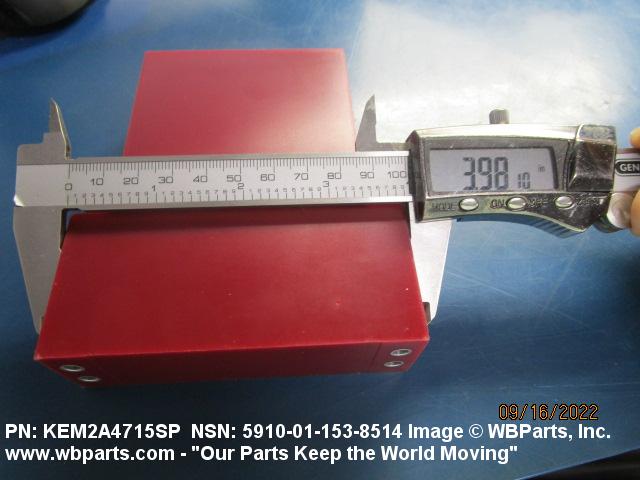

| BODY WIDTH | 4.000 INCHES NOMINAL |

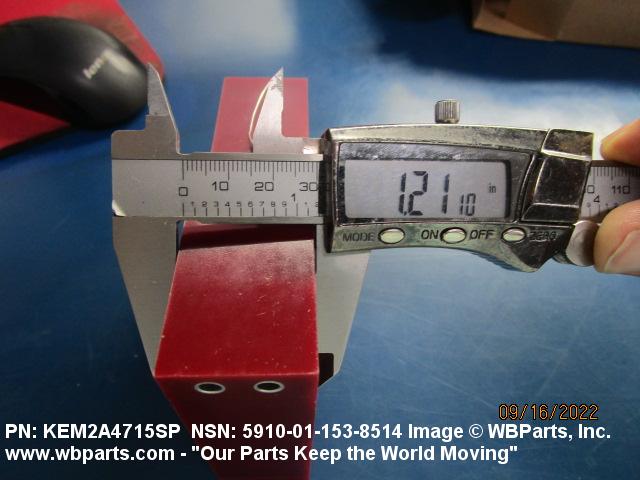

| BODY HEIGHT | 3.062 INCHES NOMINAL |

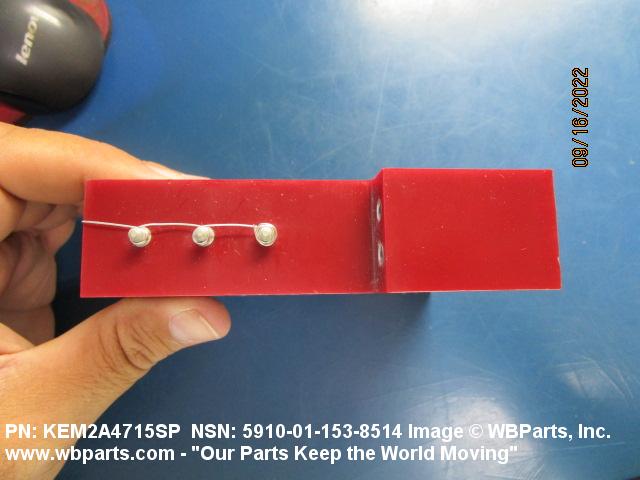

| TERMINAL TYPE AND QUANTITY | 4 STANDOFF, SOLDER LUG |
| TERMINAL HEIGHT FROM BODY | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | SELECTED ITEM |
| III END ITEM IDENTIFICATION | F-16 |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 585R206H03 |
Restrictions/Controls & Freight Information | NSN 5910-01-153-8514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-153-8514
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
