NSN 5910-01-156-7075 CGR243U040V513PL, 101-1573-02, 101243U040BF2A

Product Details | ELECTROLYTIC FIXED CAPACITOR

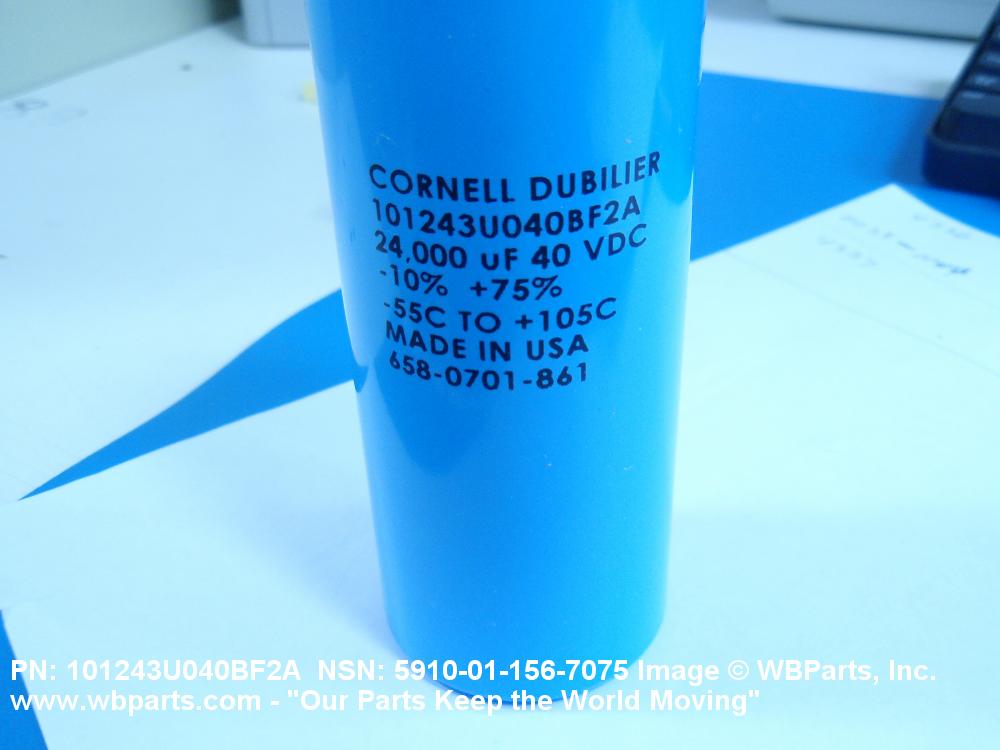

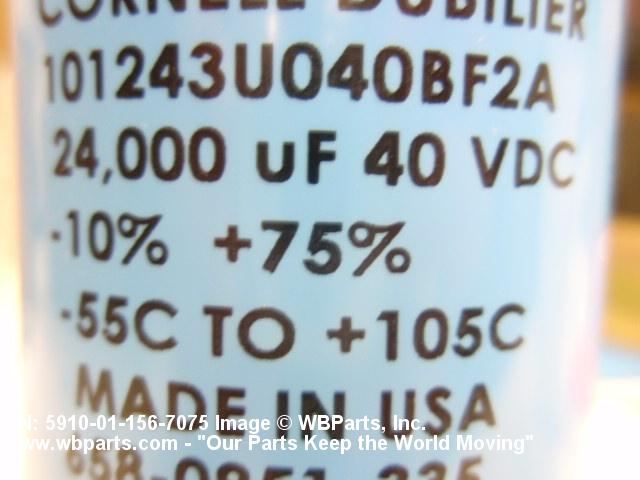

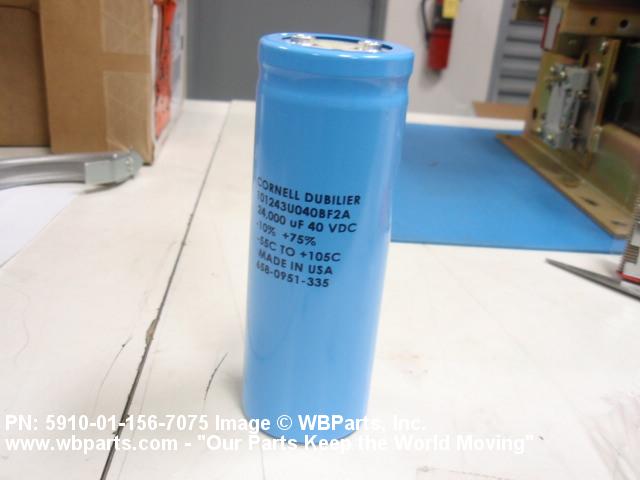

5910-01-156-7075 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
