NSN 5910-01-169-4612 5028ES50RD224M, 01-169-4612, 011694612
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-169-4612 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: 5028ES50RD224M, 5910-01-169-4612, 01-169-4612, 5910011694612, 011694612
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JAN 1984 | 01-169-4612 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-169-4612
Cross Reference | NSN 5910-01-169-4612
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5028ES50RD224M | 20932 | ILLINOIS TOOL WORKS INC EMCON DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-169-4612
Technical Data | NSN 5910-01-169-4612
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.220 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

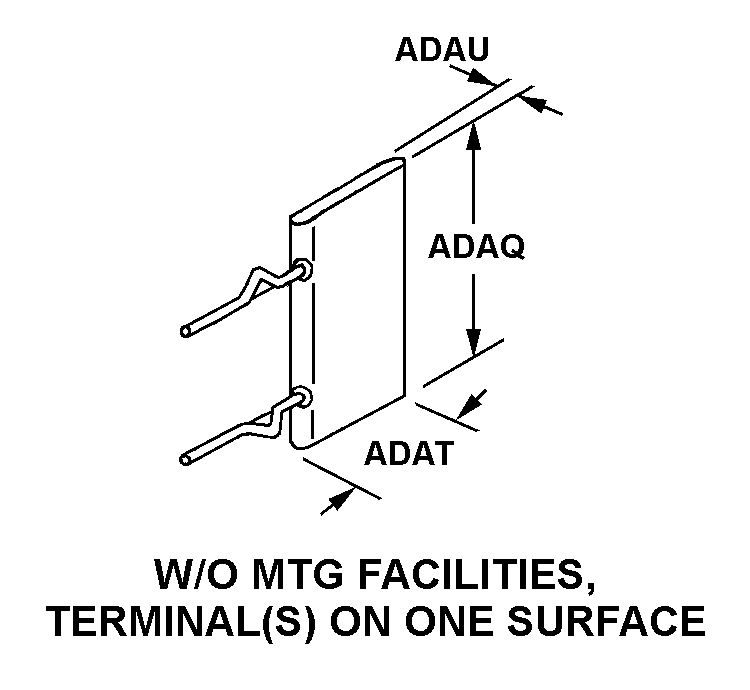

| BODY STYLE | 27A W/O MTG FACILITIES TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 0.200 INCHES MAXIMUM |
| BODY WIDTH | 0.200 INCHES MAXIMUM |
| BODY HEIGHT | 0.125 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.250 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.019 INCHES MINIMUM AND 0.024 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 0.200 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 2500.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 2.5000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
