NSN 5910-01-208-6473 MD20312J, 11436863, 1601809
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-01-208-6473 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: MD20312J, 11436863, 1601809, 160-1809, 5910-01-208-6473, 01-208-6473, 5910012086473, 012086473
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAY 1985 | 01-208-6473 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |

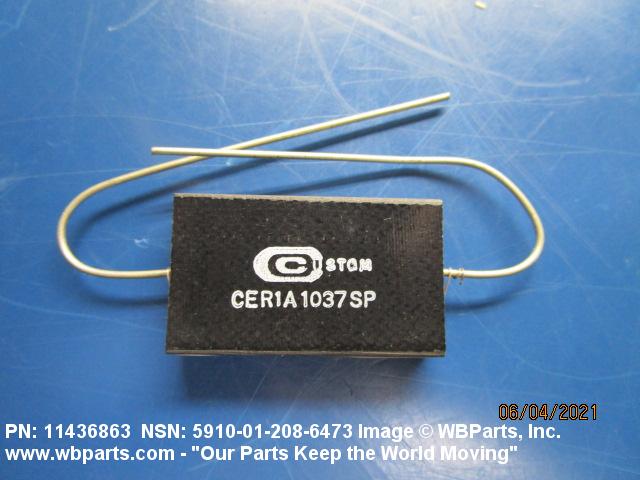

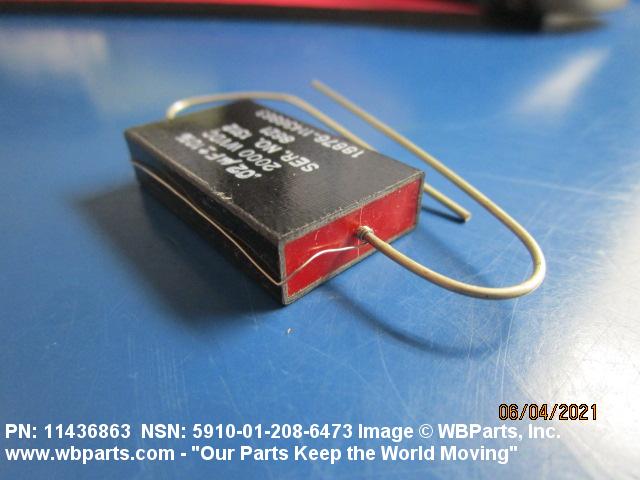

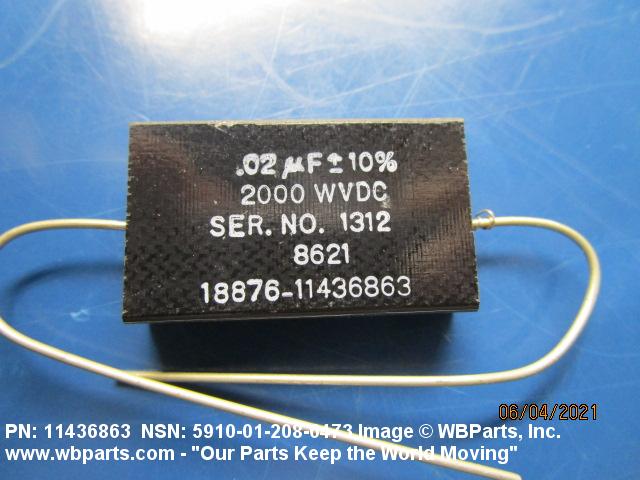

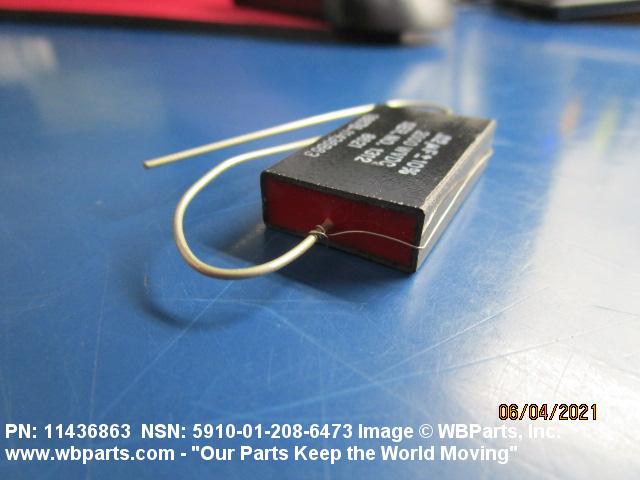

Drawings & Photos | NSN 5910-01-208-6473
Demand History | NSN 5910-01-208-6473
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 160-1809 | 2026-03-88 | 32 | DIBBS |
| 11436863 | 2021-04-116 | 1 | Greece |
| 5910-01-208-6473 | 2019-01-31 | 41 | DIBBS |
| 5910-01-208-6473 | 2018-04-116 | 20 | DIBBS |
| 5910-01-208-6473 | 2018-01-09 | 31 | DIBBS |
| 5910-01-208-6473 | 2017-12-362 | 33 | DIBBS |
| 5910-01-208-6473 | 2017-03-66 | 26 | DIBBS |
| 5910-01-208-6473 | 2017-02-56 | 19 | DIBBS |
| 5910-01-208-6473 | 2017-02-33 | 19 | DIBBS |
| 5910-01-208-6473 | 2015-12-344 | 60 | DIBBS |
| 5910-01-208-6473 | 2012-06-172 | 40 | DIBBS |
| 5910-01-208-6473 | 2011-10-287 | 21 | DIBBS |
| 5910-01-208-6473 | 2011-03-75 | 61 | DIBBS |
| 5910-01-208-6473 | 2011-02-49 | 1 | DIBBS |
| 5910-01-208-6473 | 2011-02-49 | 3 | DIBBS |
| 5910-01-208-6473 | 2011-02-49 | 4 | DIBBS |
| 5910-01-208-6473 | 2011-02-49 | 29 | DIBBS |
| 5910-01-208-6473 | 2010-12-345 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-208-6473
Related Products | NSN 5910-01-208-6473
Technical Data | NSN 5910-01-208-6473
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 20000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PICOFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 2000.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -0.0 TO 70.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -65.0 DEG CELSIUS MINIMUM AND |
| BODY STYLE | W/O MTG FACILITIES, TERMINALS ON OPPOSITE SURFACES |

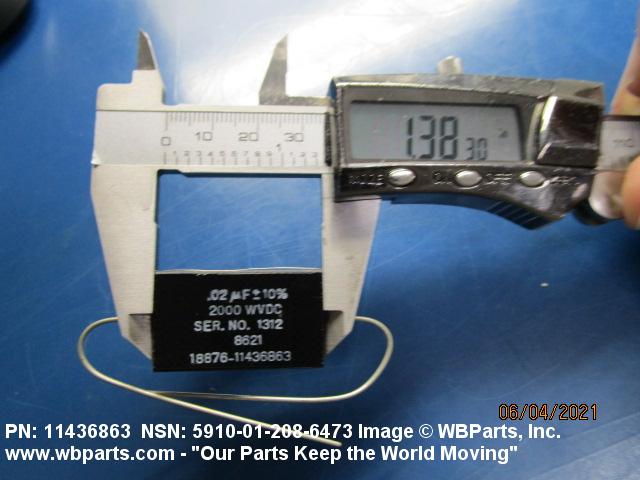

| BODY LENGTH | 1.438 INCHES NOMINAL |

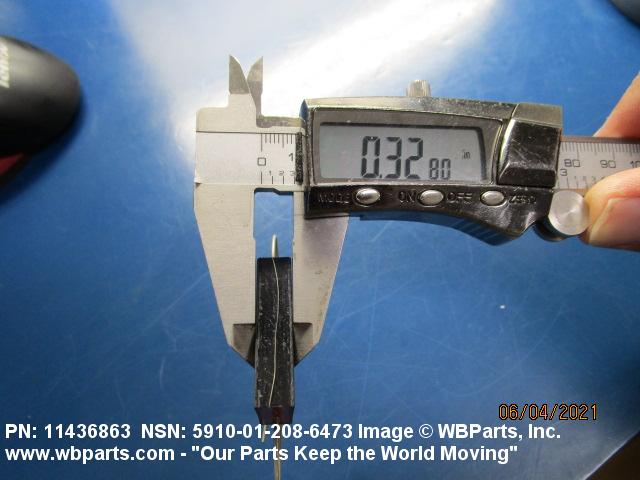

| BODY WIDTH | 0.344 INCHES NOMINAL |

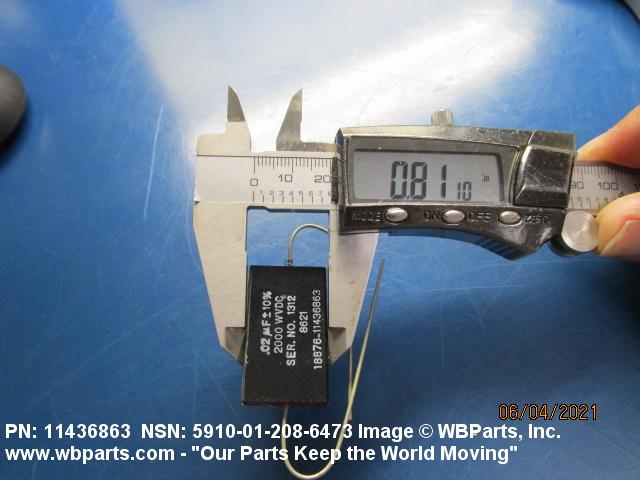

| BODY HEIGHT | 0.844 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 2.000 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.050 INCHES MAXIMUM |
| CASE MATERIAL | PLASTIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 5000.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.50000 |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 1.0000 |
| TEST DATA DOCUMENT | 81349-MIL-C-39001 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| III TERMINAL SURFACE TREATMENT | COPPER |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 25.0 MEGOHM-MICROFARADS |
Restrictions/Controls & Freight Information | NSN 5910-01-208-6473
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-208-6473
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
