NSN 5910-01-210-9744 5942962, 80180309, 80180-309
Product Details | PAPER-PLASTIC DIELECTRI METALLIZED FIXED CAPACITOR
5910-01-210-9744 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Part Alternates: 5942962, 80180309, 80180-309, 5910-01-210-9744, 01-210-9744, 5910012109744, 012109744
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1985 | 01-210-9744 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |

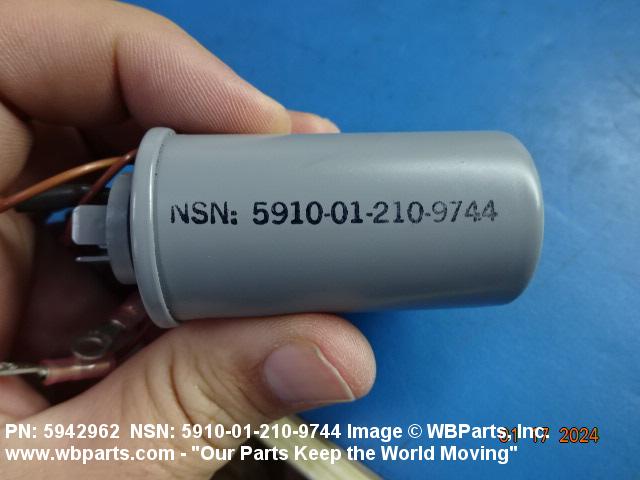

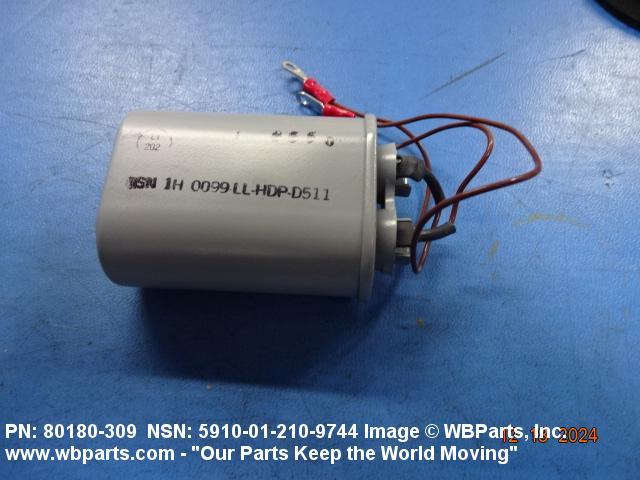

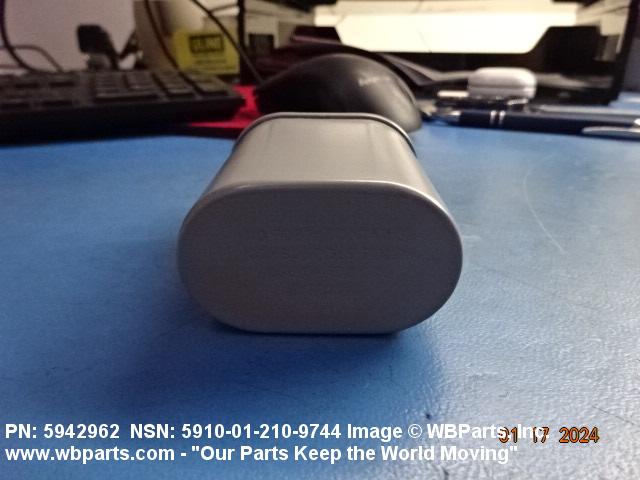

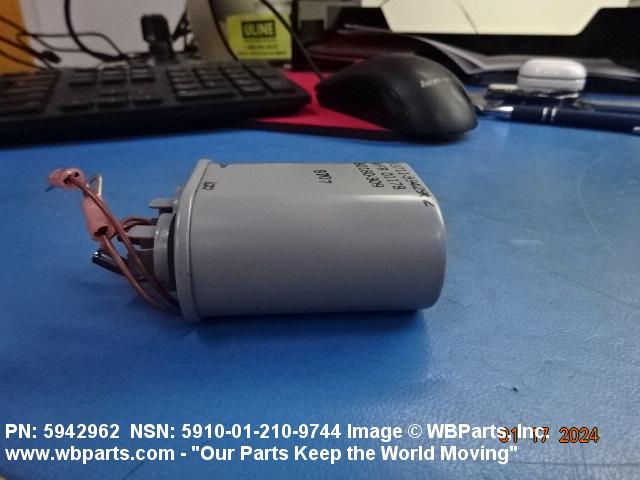

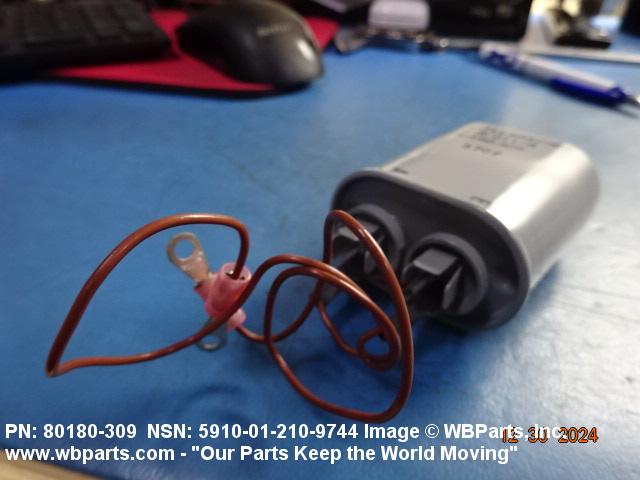

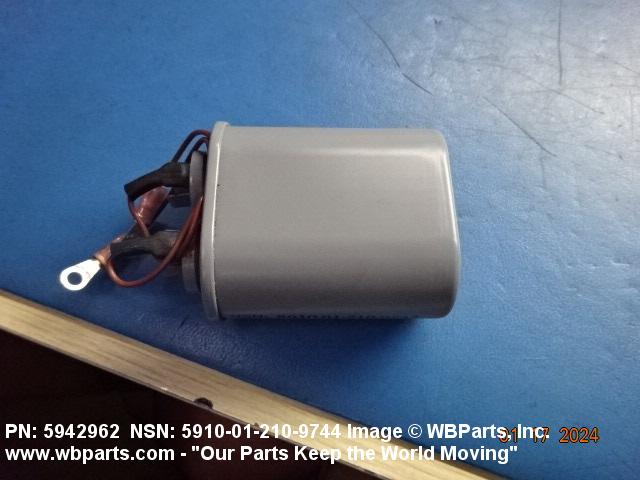

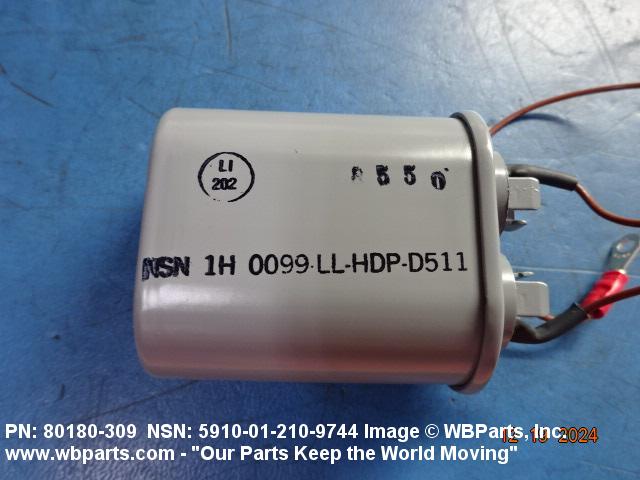

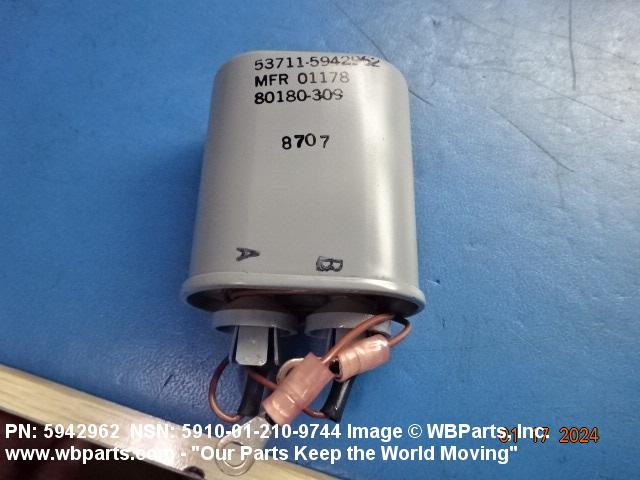

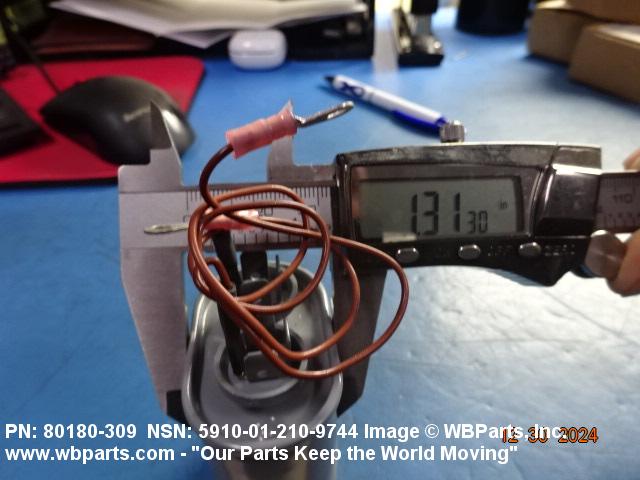

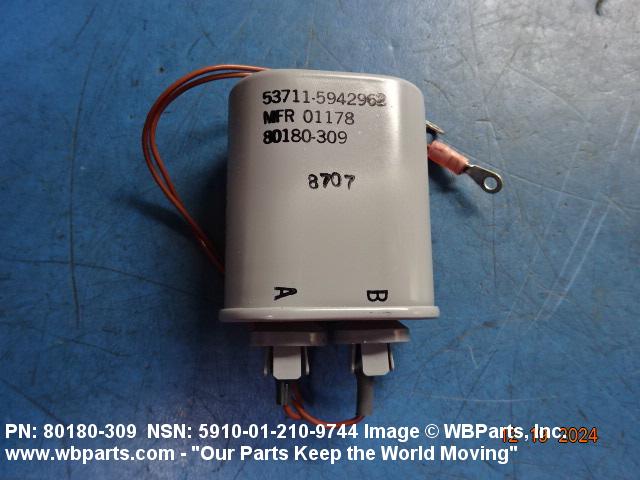

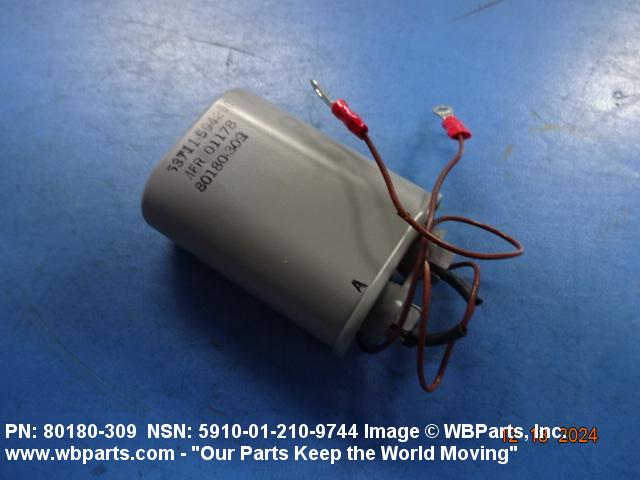

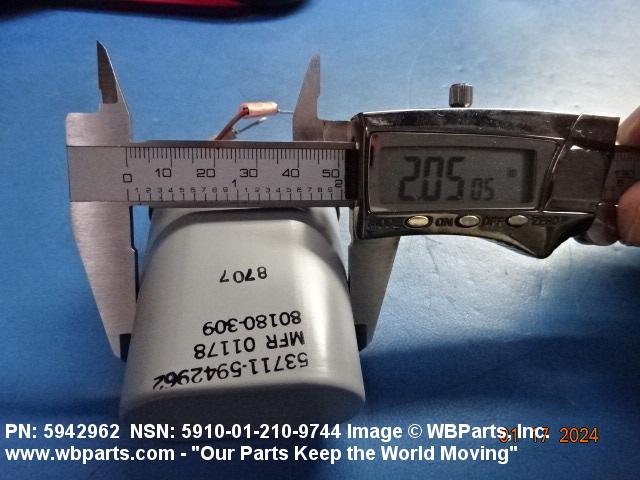

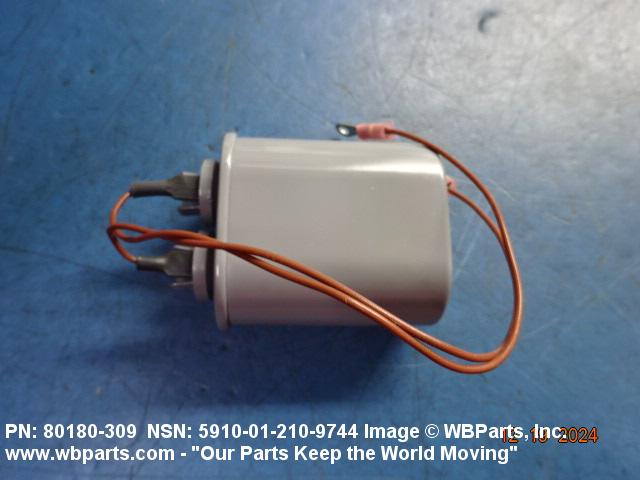

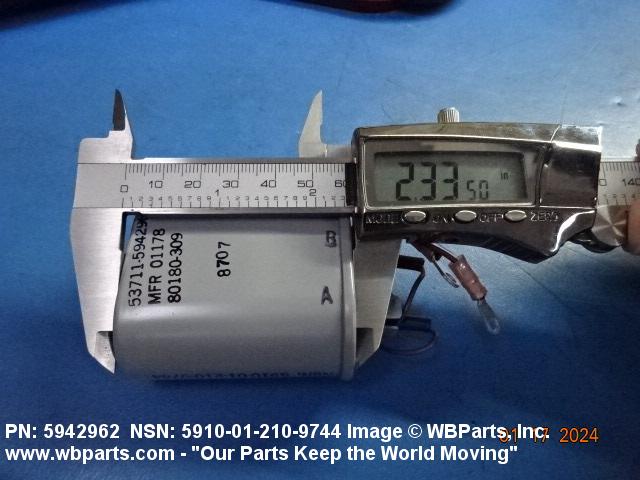

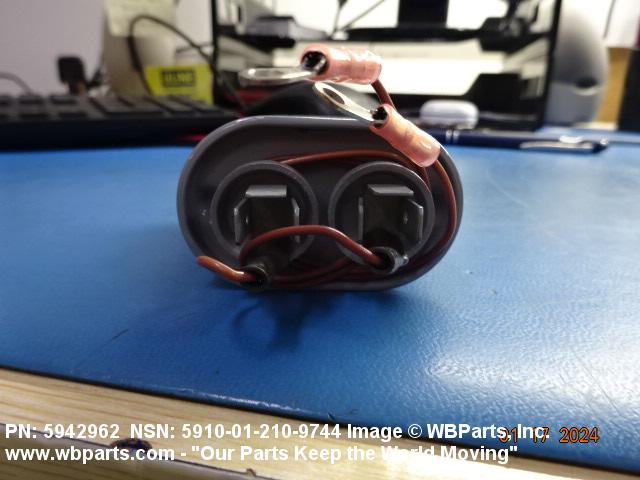

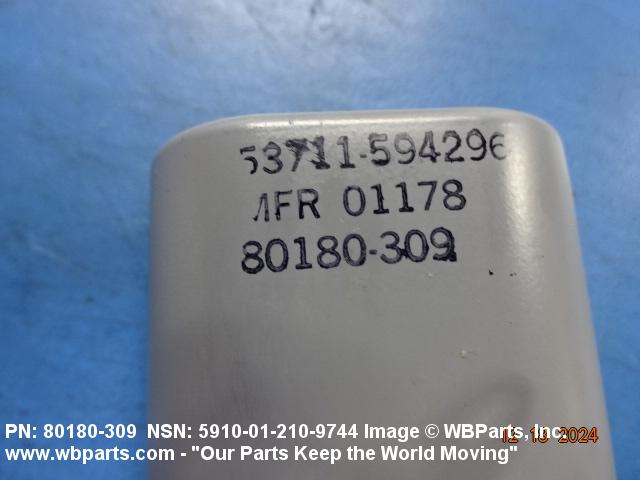

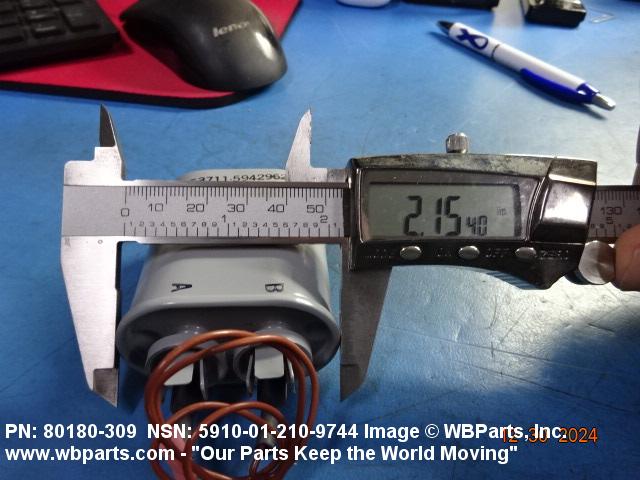

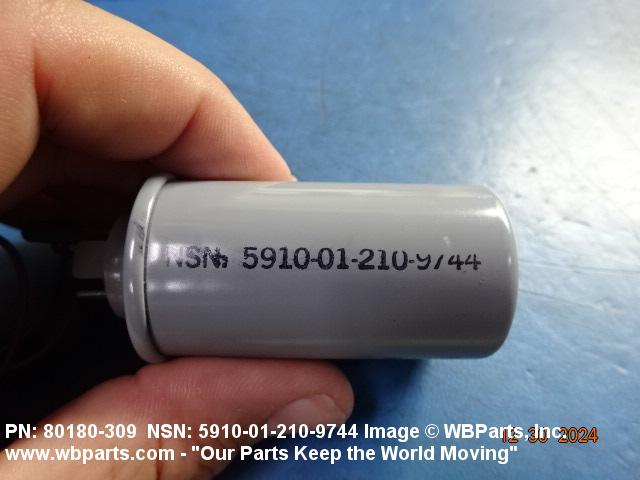

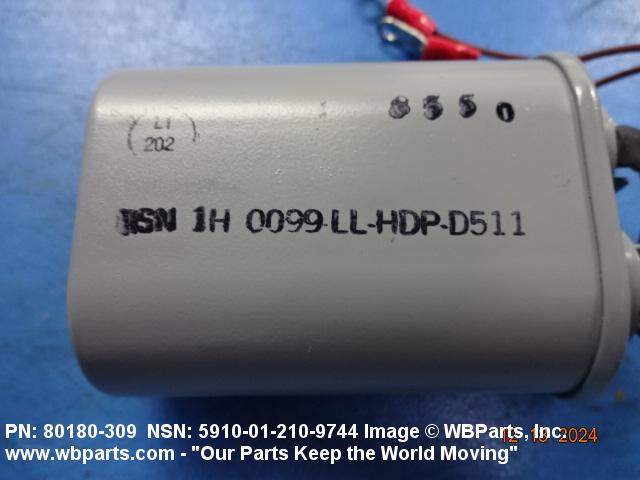

Drawings & Photos | NSN 5910-01-210-9744
Demand History | NSN 5910-01-210-9744
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5942962 | 2025-11-310 | 26 | DIBBS |
| 80180-309 | 2025-11-310 | 26 | DIBBS |
| 80180309 | 2024-10-282 | 12 | Greece |
| 5942962 | 2024-05-126 | 32 | DIBBS |
| 80180-309 | 2024-05-126 | 32 | DIBBS |
| 5910-01-210-9744 | 2024-01-11 | 7 | Greece |
| 5910-01-210-9744 | 2024-01-11 | 7 | Greece |
| 5910-01-210-9744 | 2024-01-08 | 20 | Greece |
| 5942962 | 2023-08-213 | 32 | DIBBS |
| 80180-309 | 2023-08-213 | 32 | DIBBS |
| 5942962 | 2022-11-321 | 5 | DIBBS |
| 80180-309 | 2022-11-321 | 5 | DIBBS |
| 5942962 | 2022-11-307 | 5 | DIBBS |
| 80180-309 | 2022-11-307 | 5 | DIBBS |
| 5942962 | 2022-10-283 | 27 | DIBBS |
| 80180-309 | 2022-10-283 | 27 | DIBBS |
| 5942962 | 2022-09-265 | 12 | DIBBS |
| 80180-309 | 2022-09-265 | 12 | DIBBS |
| 5942962 | 2019-01-31 | 15 | DIBBS |
| 80180-309 | 2019-01-31 | 15 | DIBBS |
| 5910-01-210-9744 | 2017-06-155 | 8 | DIBBS |
| 5910-01-210-9744 | 2010-09-260 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-210-9744
Related Products | NSN 5910-01-210-9744
Technical Data | NSN 5910-01-210-9744
| Characteristic | Specifications |
|---|---|
| BODY WIDTH | 1.250 INCHES MINIMUM AND 1.370 INCHES MAXIMUM |
| BODY HEIGHT | 2.560 INCHES MINIMUM AND 2.680 INCHES MAXIMUM |
| CASE MATERIAL | METAL |
| OVERALL HEIGHT (NON-CORE) | 3.080 INCHES MINIMUM AND 3.200 INCHES MAXIMUM |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 370.0 AC-RMS SINGLE SECTION |
| TERMINAL SURFACE TREATMENT | SOLDER |
| CAPACITANCE VALUE PER SECTION | 5.000 MICROFARADS SINGLE SECTION |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| OVERALL WIDTH (NON-CORE) | 1.250 INCHES MINIMUM AND 1.370 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| BODY STYLE | W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE |
| TERMINAL LENGTH | 0.520 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 QUICK DISCONNECT, MALE, FOUR BLADE |
| BODY LENGTH | 2.100 INCHES MINIMUM AND 2.220 INCHES MAXIMUM |
| OVERALL LENGTH (NON-CORE) | 2.100 INCHES MINIMUM AND 2.220 INCHES MAXIMUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.100 |
| NONDERATED OPERATING TEMP | -40.0 DEG CELSIUS MINIMUM AND 70.0 DEG CELSIUS MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5910-01-210-9744
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-210-9744
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
