NSN 5910-01-254-0978 MIL-C-14409/15, MILC1440915, PC30J5R0
Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-01-254-0978 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: MIL-C-14409/15, MILC1440915, PC30J5R0, 1804604, 5910-01-254-0978, 01-254-0978, 5910012540978, 012540978
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAY 1987 | 01-254-0978 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-254-0978
Demand History | NSN 5910-01-254-0978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PC30J5R0 | 2007-08-222 | 3 | US |
| PC30J5R0 | 2006-03-61 | 73 | US |
| PC30J5R0 | 2006-02-32 | 200 | IL |
| 5910-01-254-0978 | 2006-01-23 | 200 | IL |
| PC30J5R0 | 2006-01-18 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-254-0978
Related Products | NSN 5910-01-254-0978
Technical Data | NSN 5910-01-254-0978
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 0.6 TO 5.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 250.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | 0.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |
| TUNING CHARACTERISTIC | STRAIGHT LINE CAPACITY SINGLE SECTION |

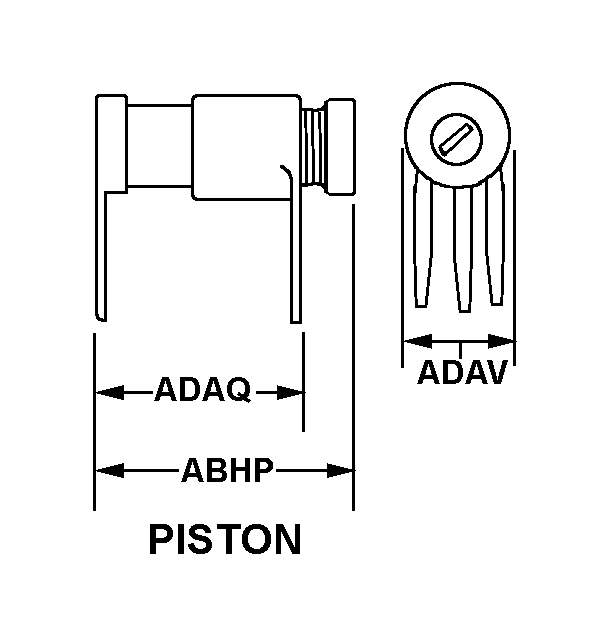

| BODY STYLE | 24 PISTON |
| OVERALL LENGTH | 0.651 INCHES NOMINAL |
| BODY LENGTH | 0.281 INCHES NOMINAL |
| OVERALL DIAMETER | 0.145 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE TORQUE | 5.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 1 FERRULE AND 1 PRINTED CIRCUIT |
| TERMINAL LOCATION | ADJUSTMENT CONTROL END BENT BACKWARD |
| TERMINAL LENGTH | 0.406 INCHES NOMINAL |
| TERMINAL WIDTH | 0.020 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.010 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.125 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-C-14409 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-14409/15 GOVERNMENT SPECIFICATION |
| III CAPACITANCE DRIFT IN PICOFARADS | 0.02 SINGLE SECTION |
| III INSULATION DC RESISTANCE AT MAX OPERATING TEMP | 100000.0 MEGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 7500.0 |
| III MATERIAL | CERAMIC BASE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-14409/15 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | PC30J5R0 |
