NSN 5910-01-261-7814 CG60C050751H, CG60C050-751H, MILC231835
Product Details | GAS DIELECTRIC VARIABLE CAPACITOR
5910-01-261-7814 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. Its dielectric may be either gas or vacuum.
Part Alternates: CG60C050751H, CG60C050-751H, MILC231835, MILC23183-5, 5910-01-261-7814, 01-261-7814, 5910012617814, 012617814
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 1987 | 01-261-7814 | 30689 ( CAPACITOR, VARIABLE, GAS DIELECTRIC ) |

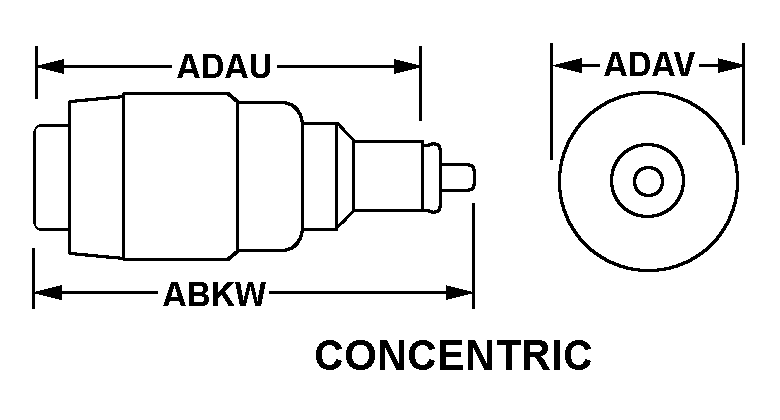

Drawings & Photos | NSN 5910-01-261-7814
