NSN 5910-01-263-5162 32548841, 3254884-1, 50426W1
Product Details | PLASTIC DIELECTRIC FIXED CAPACITOR
5910-01-263-5162 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: 32548841, 3254884-1, 50426W1, 50426W-1, 5910-01-263-5162, 01-263-5162, 5910012635162, 012635162
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 SEP 1987 | 01-263-5162 | 00006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-263-5162
Demand History | NSN 5910-01-263-5162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50426W-1 | 2025-10-303 | 20 | DIBBS |
| 50426W-1 | 2025-02-49 | 14 | DIBBS |
| 50426W-1 | 2024-10-281 | 16 | DIBBS |
| 50426W-1 | 2024-09-270 | 16 | DIBBS |
| 50426W-1 | 2024-04-92 | 14 | DIBBS |
| 50426W-1 | 2024-03-81 | 14 | DIBBS |
| 50426W-1 | 2021-05-142 | 38 | DIBBS |
| 50426W-1 | 2021-05-126 | 38 | DIBBS |
| 50426W-1 | 2020-05-139 | 18 | DIBBS |
| 50426W-1 | 2020-05-124 | 18 | DIBBS |
| 50426W-1 | 2020-04-111 | 7 | DIBBS |
| 50426W-1 | 2020-04-100 | 7 | DIBBS |
| 5910-01-263-5162 | 2018-05-126 | 19 | DIBBS |
| 5910-01-263-5162 | 2017-10-296 | 13 | DIBBS |
| 5910-01-263-5162 | 2017-10-284 | 13 | DIBBS |
| 5910-01-263-5162 | 2014-07-211 | 12 | DIBBS |
| 5910-01-263-5162 | 2013-09-258 | 12 | DIBBS |
| 5910-01-263-5162 | 2013-09-245 | 11 | DIBBS |
| 5910-01-263-5162 | 2013-02-32 | 13 | DIBBS |
| 5910-01-263-5162 | 2012-11-309 | 9 | DIBBS |
| 5910-01-263-5162 | 2012-10-284 | 15 | DIBBS |
| 5910-01-263-5162 | 2012-07-209 | 58 | DIBBS |
| 5910-01-263-5162 | 2012-07-206 | 7 | DIBBS |
| 5910-01-263-5162 | 2009-06-180 | 10 | DIBBS |
| 5910-01-263-5162 | 2009-05-138 | 2 | DIBBS |
| 5910-01-263-5162 | 2009-01-26 | 4 | DIBBS |
| 5910-01-263-5162 | 2008-08-242 | 2 | DIBBS |
| 5910-01-263-5162 | 2008-02-58 | 6 | DIBBS |
| 5910-01-263-5162 | 2007-02-52 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-263-5162
Related Products | NSN 5910-01-263-5162
Technical Data | NSN 5910-01-263-5162
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.500 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 21000.0 DC SINGLE SECTION |

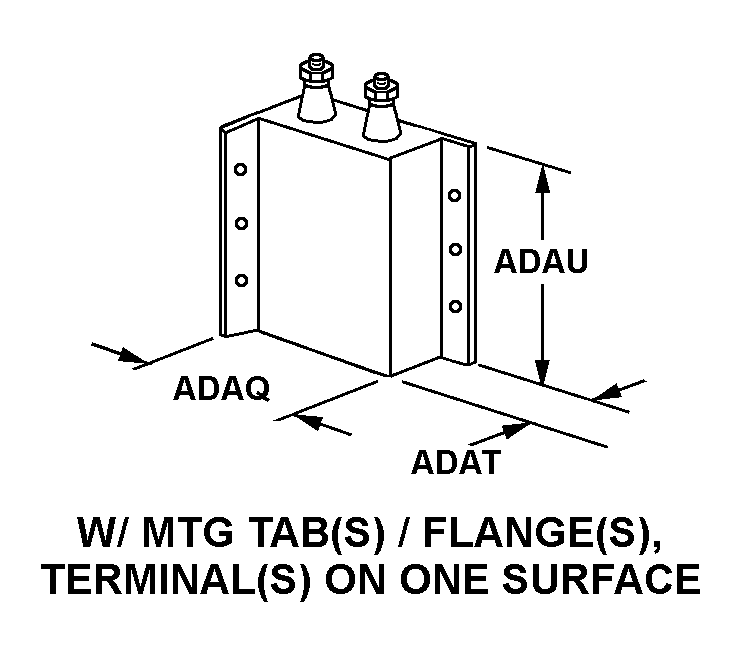

| BODY STYLE | 32A W/MTG TAB(S)/FLANGE(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 8.500 INCHES NOMINAL |
| BODY HEIGHT | 7.500 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |
| TERMINAL HEIGHT FROM BODY | 5.150 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED MOUNTING STUDS AND 4 UNTHREADED MOUNTING HOLES AND 3 MOUNTING SLOTS |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.340 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| MOUNTING SLOT WIDTH | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| INSULATION RESISTANCE AT REFERENCE TEMP | 1000.0 MEGOHM-MICROFARADS |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| MANUFACTURERS CODE | 13058 |
| DESIGN CONTROL REFERENCE | 50426W-1 |
Restrictions/Controls & Freight Information | NSN 5910-01-263-5162
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-263-5162
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
