NSN 5910-01-264-2817 SG1C3104A, FT335C104MHA, 81581251
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-264-2817 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: SG1C3104A, FT335C104MHA, 81581251, 8158125-1, 5910-01-264-2817, 01-264-2817, 5910012642817, 012642817
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1987 | 01-264-2817 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-264-2817
Cross Reference | NSN 5910-01-264-2817
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8158125-1 | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| 8158125-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| FT335C104MHA | 04222 | AVX CORPORATION DBA OLEAN ADVANCED PRODUCTS |
| SG1C3104A | 96095 | AVX CORPORATION DBA OLEAN ADVANCED PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-264-2817
Related Products | NSN 5910-01-264-2817
Technical Data | NSN 5910-01-264-2817
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE | -15.0 TO 15.0 WITHOUT VOLTAGE APPLIED SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

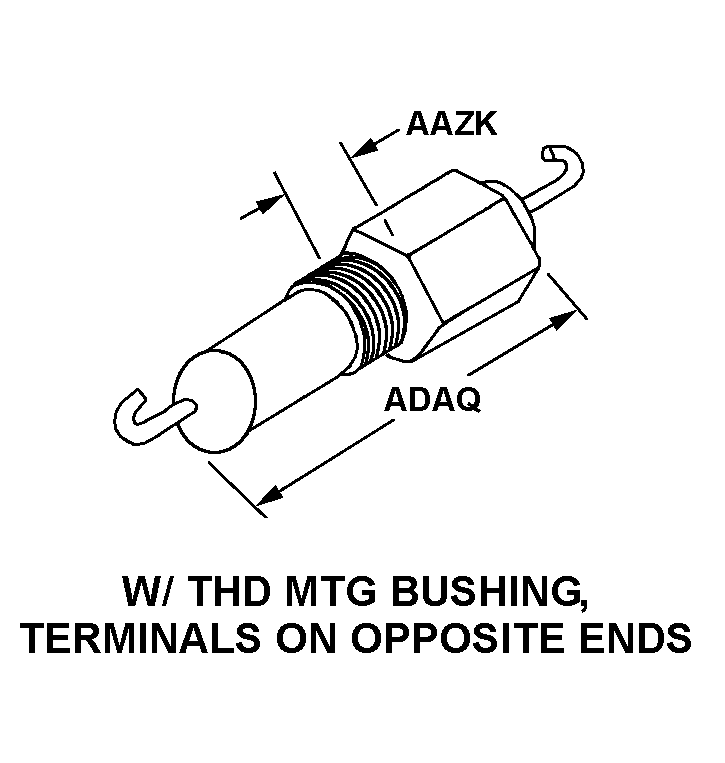

| BODY STYLE | 54B W/THD MTG BUSHING, TERMINALS ON OPPOSITE ENDS |
