NSN 5910-01-266-0828 ATC100B1R0CNMS500X, 01-266-0828, 012660828
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-266-0828 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: ATC100B1R0CNMS500X, 5910-01-266-0828, 01-266-0828, 5910012660828, 012660828
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 OCT 1987 | 01-266-0828 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-266-0828
Cross Reference | NSN 5910-01-266-0828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ATC100B1R0CNMS500X | 29990 | AMERICAN TECHNICAL CERAMICS CORP DBA ATC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-266-0828
Technical Data | NSN 5910-01-266-0828
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.10 TO 0.10 PICOFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 90.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO 20.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

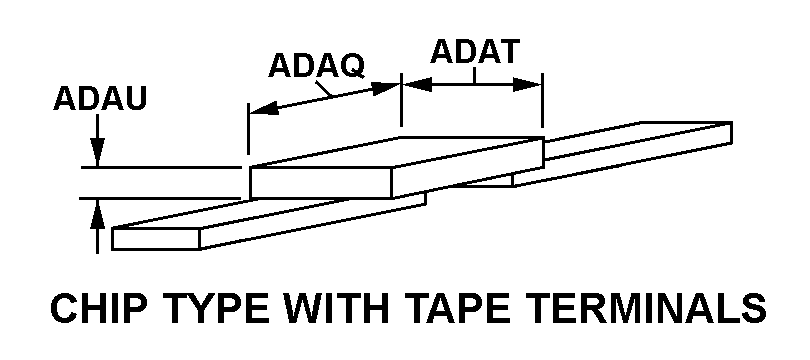

| BODY STYLE | 40A CHIP TYPE WITH TAPE TERMINALS |
| BODY LENGTH | 0.155 INCHES MAXIMUM |
| BODY WIDTH | 0.110 INCHES NOMINAL |
| BODY HEIGHT | 0.100 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 RIBBON |
| TERMINAL LENGTH | 0.250 INCHES MINIMUM |
| CASE MATERIAL | CERAMIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 0.155 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL HEIGHT | 0.100 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 0.110 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-01-266-0828
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
