Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-01-315-4894 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: L04164, 1330841, 133084-1, 5910-01-315-4894, 01-315-4894, 5910013154894, 013154894
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1990 | 01-315-4894 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-315-4894
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-315-4894
Technical Data | NSN 5910-01-315-4894

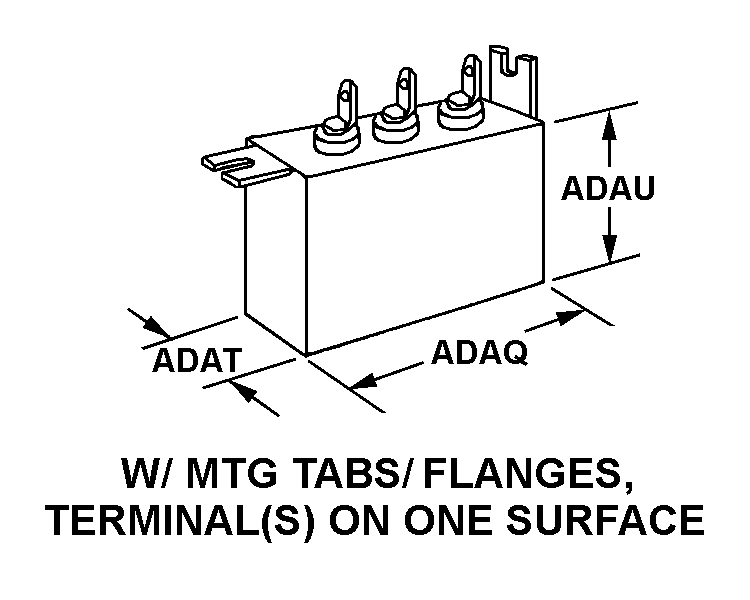

| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 700.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -6.00 TO 6.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 660.0 AC-RMS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -5.0 DEG CELSIUS MINIMUM AND 90.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 12A W/MTG TABS/FLANGES, TERMINAL(S) ON ONE SURFACE |
