NSN 5910-01-363-9902 19A705126P1, 01-363-9902, 013639902
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-363-9902 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: 19A705126P1, 5910-01-363-9902, 01-363-9902, 5910013639902, 013639902
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1992 | 01-363-9902 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-363-9902
Cross Reference | NSN 5910-01-363-9902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19A705126P1 | 08771 | GENERAL ELECTRIC CO MOBILE COMMUNICATIONS BUSINESS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-363-9902
Technical Data | NSN 5910-01-363-9902
| Characteristic | Specifications |
|---|---|
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -25.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

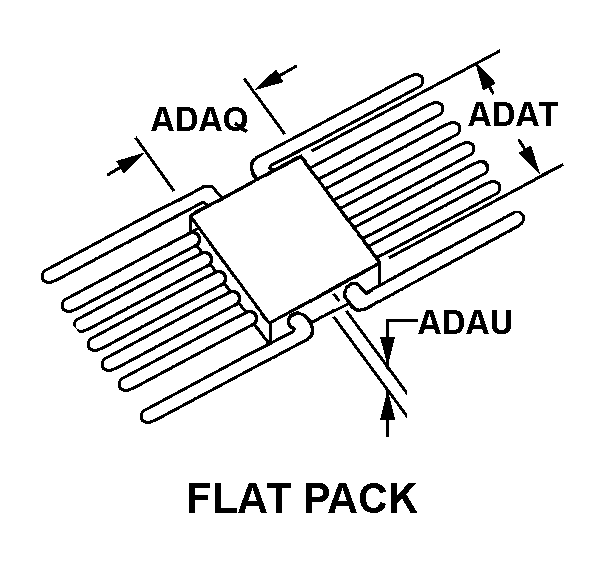

| BODY STYLE | 48A FLAT PACK |
| TERMINAL TYPE AND QUANTITY | 6 PIN |
Restrictions/Controls & Freight Information | NSN 5910-01-363-9902
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
