NSN 5910-01-557-1325 CQR09A1KC105K3P, MIL-C-19978/9, MILC199789
Product Details | PLASTIC DIELECTRIC FIXED CAPACITOR
5910-01-557-1325 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: CQR09A1KC105K3P, MIL-C-19978/9, MILC199789, 5910-01-557-1325, 01-557-1325, 5910015571325, 015571325
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 2007 | 01-557-1325 | 00006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC ) |

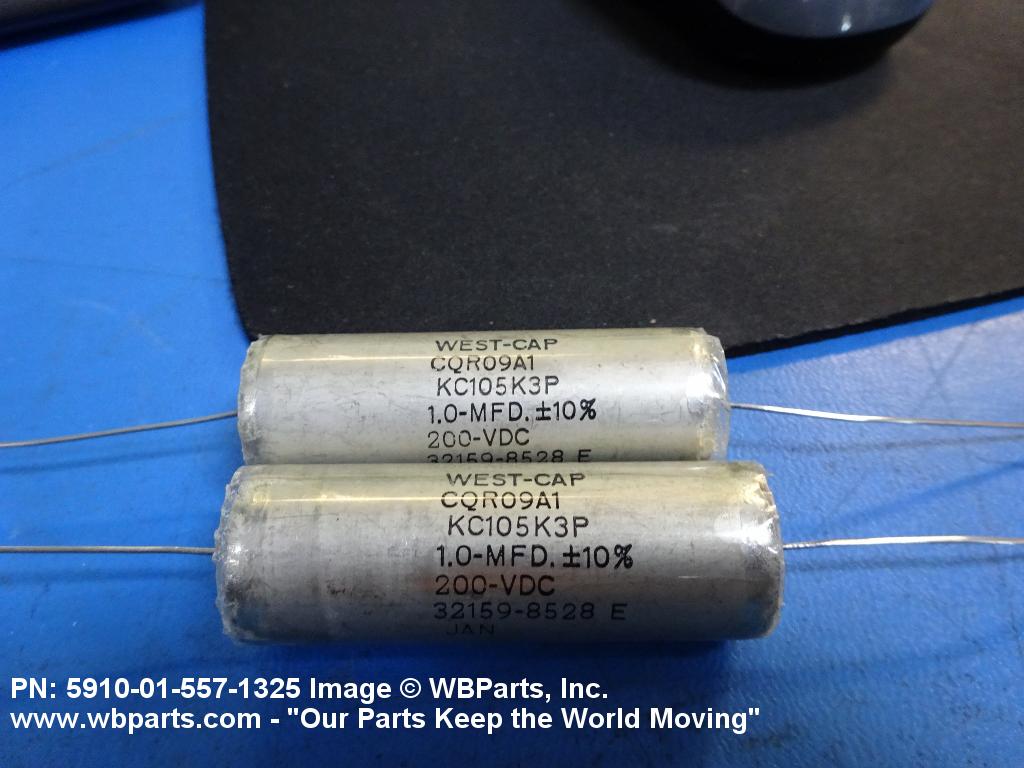

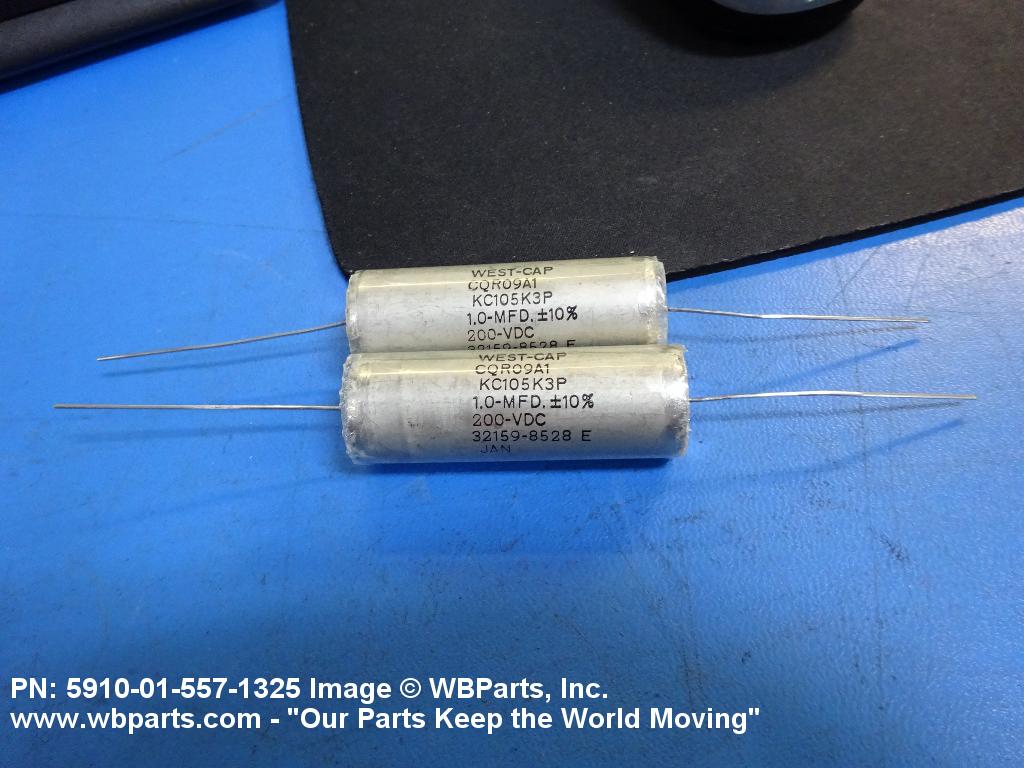

Drawings & Photos | NSN 5910-01-557-1325
Demand History | NSN 5910-01-557-1325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-557-1325 | 2022-04-117 | 2 | United States |
| 5910-01-557-1325 | 2022-03-83 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-557-1325
Technical Data | NSN 5910-01-557-1325
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.000 TO 10.000 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |

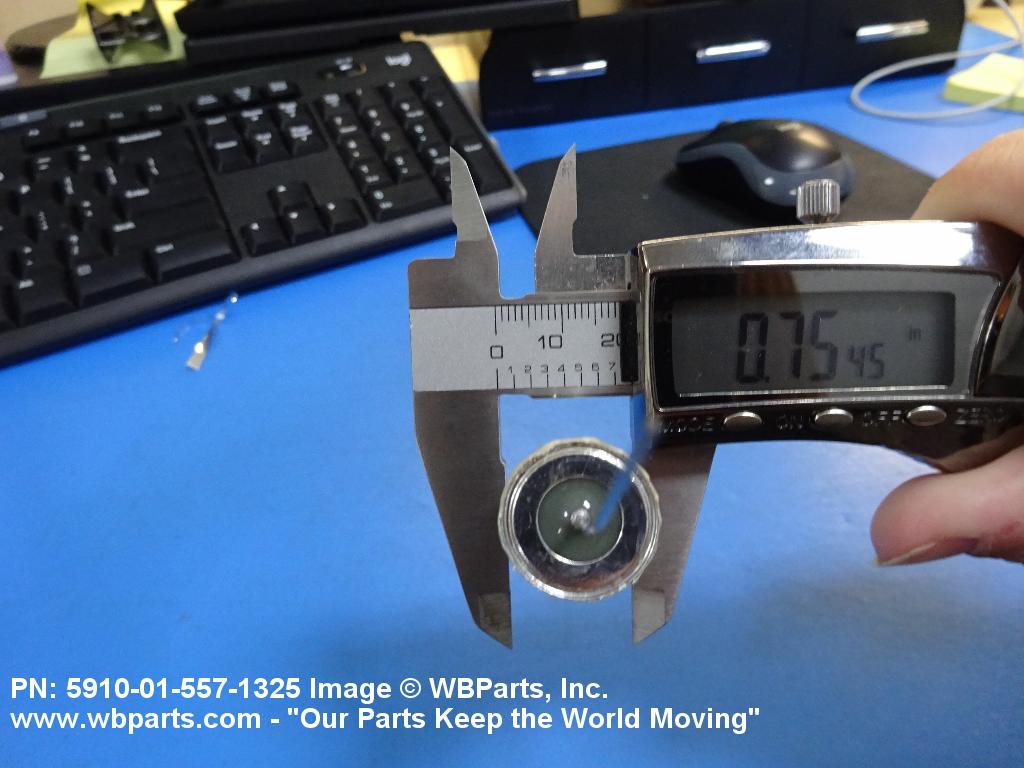

| BODY DIAMETER | 0.760 INCHES NOMINAL |

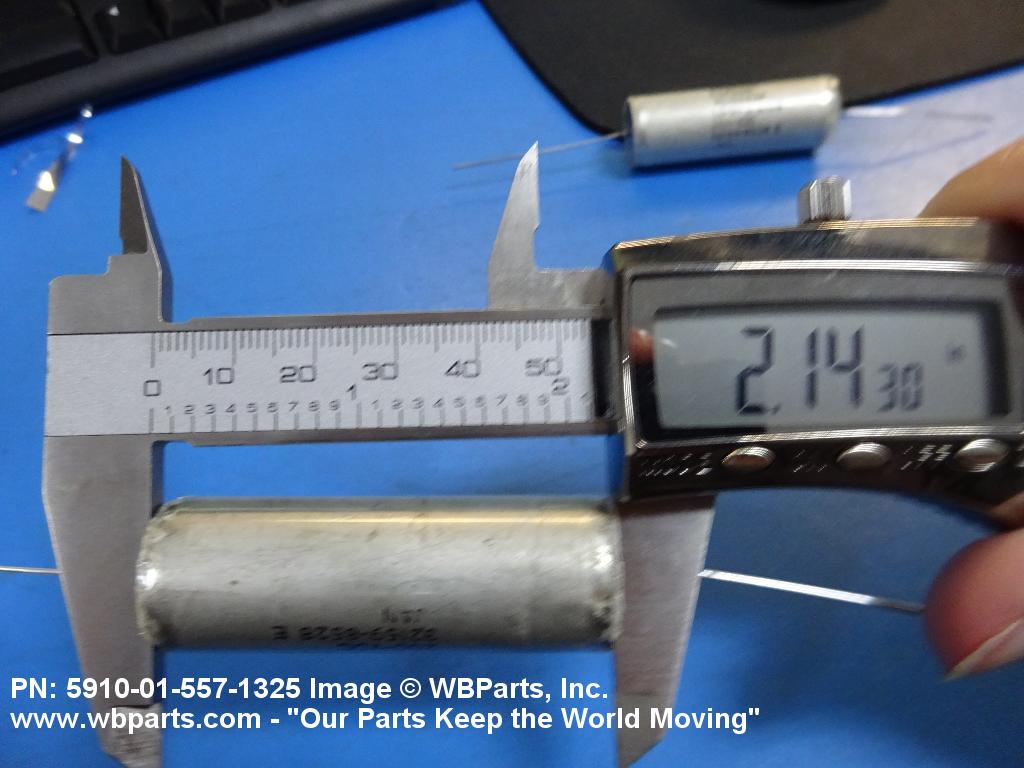

| BODY LENGTH | 2.125 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE BRAID |
| TERMINAL LENGTH | 1.625 INCHES NOMINAL |
| TERMINAL HEIGHT FROM BODY | 0.172 INCHES MAXIMUM |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.100 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CQR09A1KC105K3P |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-19978/9 |
Restrictions/Controls & Freight Information | NSN 5910-01-557-1325
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
