NSN 5915-00-102-6809 MODEL 3306 4000M, MODEL33064000M, SMA6179331
Product Details | LOW PASS FILTER
5915-00-102-6809 An item designed to pass all frequencies below a specified frequency. Excludes a single inductance, a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: MODEL 3306 4000M, MODEL33064000M, SMA6179331, SM-A-617933-1, 3306, 5003, 5915-00-102-6809, 00-102-6809, 5915001026809, 001026809
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAY 1968 | 00-102-6809 | 13911 ( FILTER, LOW PASS ) |
Drawings & Photos | NSN 5915-00-102-6809
Demand History | NSN 5915-00-102-6809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5915-00-102-6809 | 2023-10-285 | 55 | ZA |
| 5915-00-102-6809 | 2023-07-201 | 40 | Turkey |
| 5915-00-102-6809 | 2023-07-201 | 55 | US |
| 5915-00-102-6809 | 2022-11-316 | 5 | Turkey |
| 5915-00-102-6809 | 2022-02-47 | 7 | IT |
| 5915-00-102-6809 | 2022-02-39 | 5 | DE |
| 5915-00-102-6809 | 2022-01-31 | 5 | US |
| 5915-00-102-6809 | 2013-06-169 | 2 | DIBBS |
| 5915-00-102-6809 | 2012-10-296 | 3 | DIBBS |
| 5915-00-102-6809 | 2010-11-316 | 17 | DIBBS |
| 3306 | 2010-11-309 | 1 | |
| 5915-00-102-6809 | 2010-05-121 | 1 | DIBBS |
| 5915-00-102-6809 | 2010-05-121 | 7 | DIBBS |
| 5915-00-102-6809 | 2010-01-17 | 5 | DIBBS |
| 5915-00-102-6809 | 2009-10-302 | 1 | DIBBS |
| 5915-00-102-6809 | 2009-10-302 | 2 | DIBBS |
Cross Reference | NSN 5915-00-102-6809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3306 | 70998 | BIRD ELECTRONIC CORPORATION DIV BIRD ELECTRONIC CORP |
| 5003 | 32186 | CDI INDUSTRIES, INC. DBA COAXIAL DYNAMICS |
| MODEL 3306 4000M | 70998 | BIRD ELECTRONIC CORPORATION DIV BIRD ELECTRONIC CORP |
| SM-A-617933-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-102-6809
Related Products | NSN 5915-00-102-6809
Technical Data | NSN 5915-00-102-6809
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 312.5 MEGAHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 0.5 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 225.00 MEGAHERTZ BLANK AND 400.00 MEGAHERTZ BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| VOLTAGE STANDING WAVE RATIO PER FUNCTION | 1.3 BLANK |
| VOLTAGE STANDING WAVE RATIO FREQUENCY LIMITS PER FUNCTION | 225.0 MEGAHERTZ BLANK AND 400.0 MEGAHERTZ BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE INPUT 1 CONNECTOR, RECEPTACLE OUTPUT |

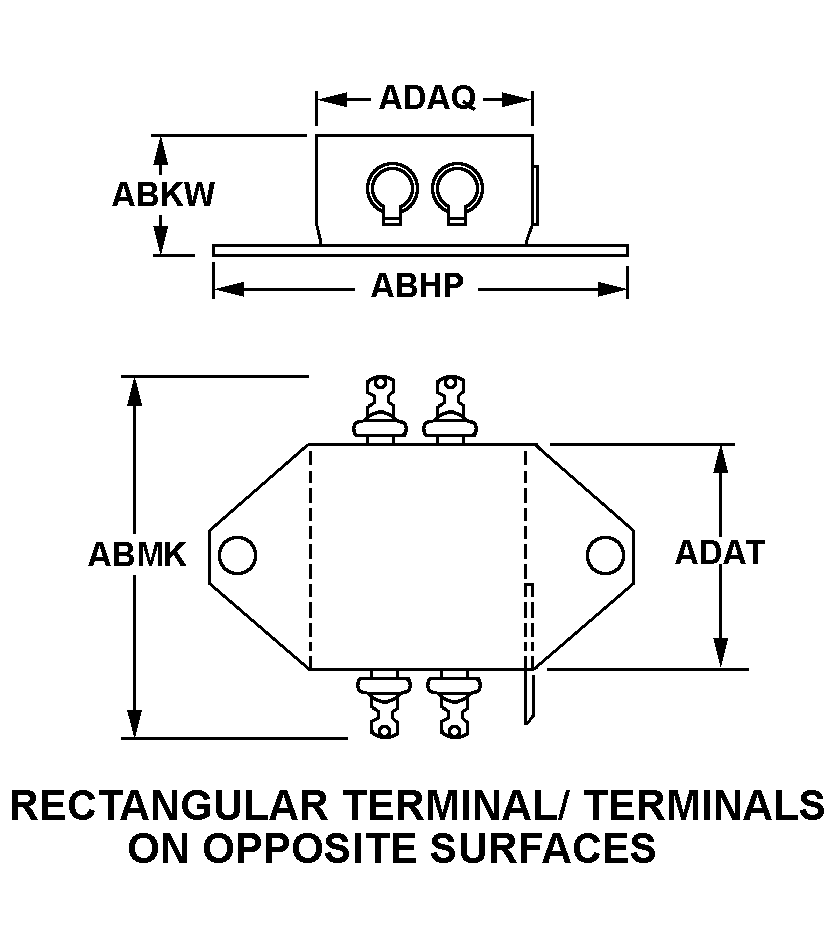

| STYLE DESIGNATOR | 1 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.626 INCHES NOMINAL |
| OVERALL HEIGHT | 0.594 INCHES MAXIMUM |
| OVERALL WIDTH | 2.640 INCHES NOMINAL |
| BODY LENGTH | 1.938 INCHES NOMINAL |
| BODY WIDTH | 2.250 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.109 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.156 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.562 INCHES NOMINAL |
| SPECIAL FEATURES | FOUR SOLDER LUG COUPLERS,TERMINALS AND COUPLERS ON THREE SURFACES |
| III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION | 225.00 MEGAHERTZ BLANK AND 400.00 MEGAHERTZ BLANK AND 480.00 MEGAHERTZ BLANK AND 1.50 GIGAHERTZ BLANK |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 1.0 MAXIMUM BLANK AND 1.0 MAXIMUM BLANK AND 60.0 MINIMUM BLANK AND 60.0 MINIMUM BLANK |
| III INPUT TERMINAL MANUFACTURER CODE | 98291 |
| III OUTPUT TERMINAL MANUFACTURER CODE | 98291 |
| III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE | 50.0 VOLTS AT SEA LEVEL |
| III VIBRATION RESISTANCE RANGE IN HERTZ | 10.0 TO 500.0 |
| III OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| III BODY MATERIAL | METAL |
