NSN 5915-00-342-4820 GA50746, 8007234, 00-342-4820
Product Details | CAPACITOR-RESISTOR
5915-00-342-4820 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: GA50746, 8007234, 5915-00-342-4820, 00-342-4820, 5915003424820, 003424820
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-342-4820 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-342-4820
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-342-4820
Technical Data | NSN 5915-00-342-4820
| Characteristic | Specifications |
|---|---|

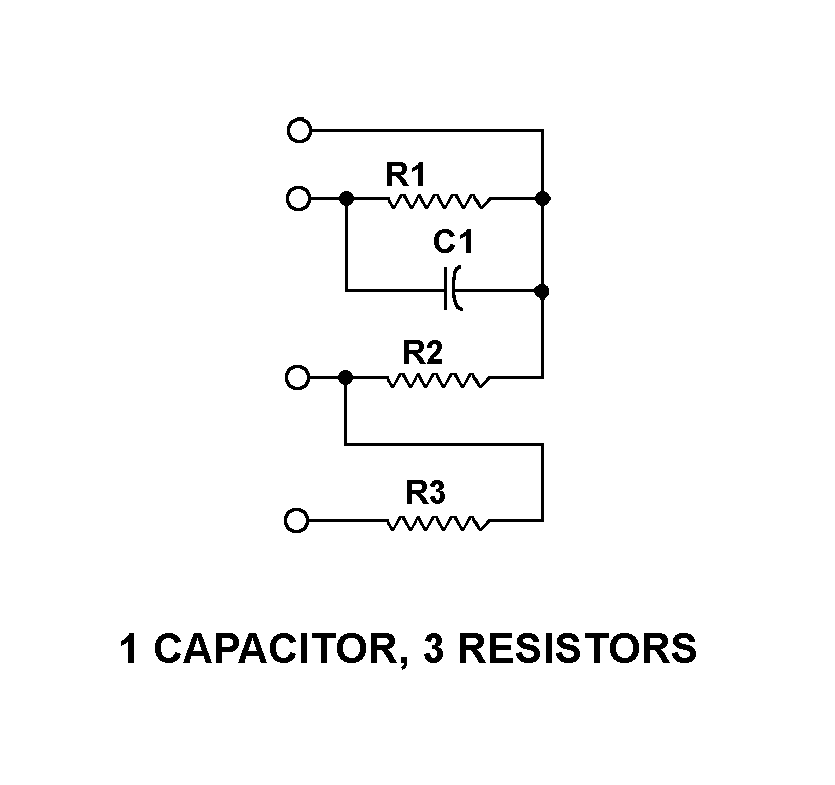

| SCHEMATIC DIAGRAM DESIGNATOR | 13 1 CAPACITOR, 3 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 820.0 PICOFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -5.0 TO 5.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 100.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 1.0 OHMS ALL RESISTORS |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -2.0 TO 0.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 2.000 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 4 FEEDTHRU |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.781 INCHES NOMINAL |
| OVERALL WIDTH | 1.219 INCHES NOMINAL |
| OVERALL HEIGHT | 4.875 INCHES NOMINAL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8007234 |
Restrictions/Controls & Freight Information | NSN 5915-00-342-4820
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
