NSN 5915-00-501-3473 24630PCZ404, 24631REVCPC33, 246701
Product Details | CAPACITOR-RESISTOR
5915-00-501-3473 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: 24630PCZ404, 24631REVCPC33, 246701, 24670-1, 65053208906PCZ404, 6505-3208906PCZ404, 65053208907REVCPC33, 6505-3208907REVCPC33, 5915-00-501-3473, 00-501-3473, 5915005013473, 005013473
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-501-3473 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-501-3473
Cross Reference | NSN 5915-00-501-3473
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-501-3473
Technical Data | NSN 5915-00-501-3473
| Characteristic | Specifications |
|---|---|

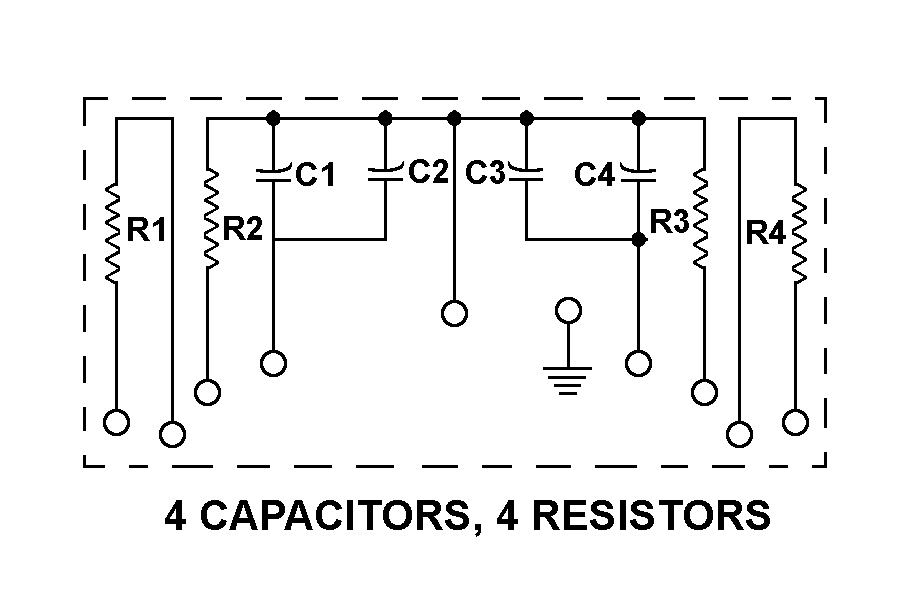

| SCHEMATIC DIAGRAM DESIGNATOR | 135 4 CAPACITORS, 4 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 50000.0 PICOFARADS CAPACITOR C1 10000.0 PICOFARADS CAPACITOR C2 10000.0 PICOFARADS CAPACITOR C3 50000.0 PICOFARADS CAPACITOR C4 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -20.0 TO 30.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 600.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 100.0 OHMS RESISTOR R1 1.0 KILOHMS RESISTOR R2 1.0 KILOHMS RESISTOR R3 100.0 OHMS RESISTOR R4 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 1.000 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR PLUG |
| MOUNTING METHOD | BRACKET |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| III CASE MATERIAL | STEEL |
| III CASE SURFACE TREATMENT | TIN PLATED |
| MANUFACTURERS CODE | 14418 |
| DESIGN CONTROL REFERENCE | 24670-1 |
Restrictions/Controls & Freight Information | NSN 5915-00-501-3473
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-00-501-3473
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
