NSN 5915-00-541-5589 L200007872, 651992, 65199-2
Product Details | CAPACITOR-RESISTOR
5915-00-541-5589 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: L200007872, 651992, 65199-2, 22626072, 2262607-2, 5915-00-541-5589, 00-541-5589, 5915005415589, 005415589
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-541-5589 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-541-5589
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-541-5589
Technical Data | NSN 5915-00-541-5589
| Characteristic | Specifications |
|---|---|

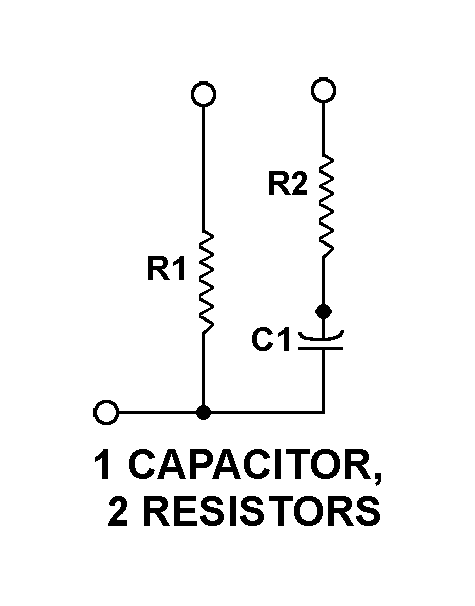

| SCHEMATIC DIAGRAM DESIGNATOR | 6 1 CAPACITOR, 2 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 1500.0 PICOFARADS CAPACITOR C1 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 CAPACITOR C1 |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 400.0 CAPACITOR C1 |
| ELECTRICAL RESISTANCE PER FUNCTION | 2.0 KILOHMS RESISTOR R1 43.0 KILOHMS RESISTOR R2 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -5.0 TO 5.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.500 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 3 SOLDER STUD |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 1.120 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| III CASE MATERIAL | METAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5915-00-541-5589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-00-541-5589
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
